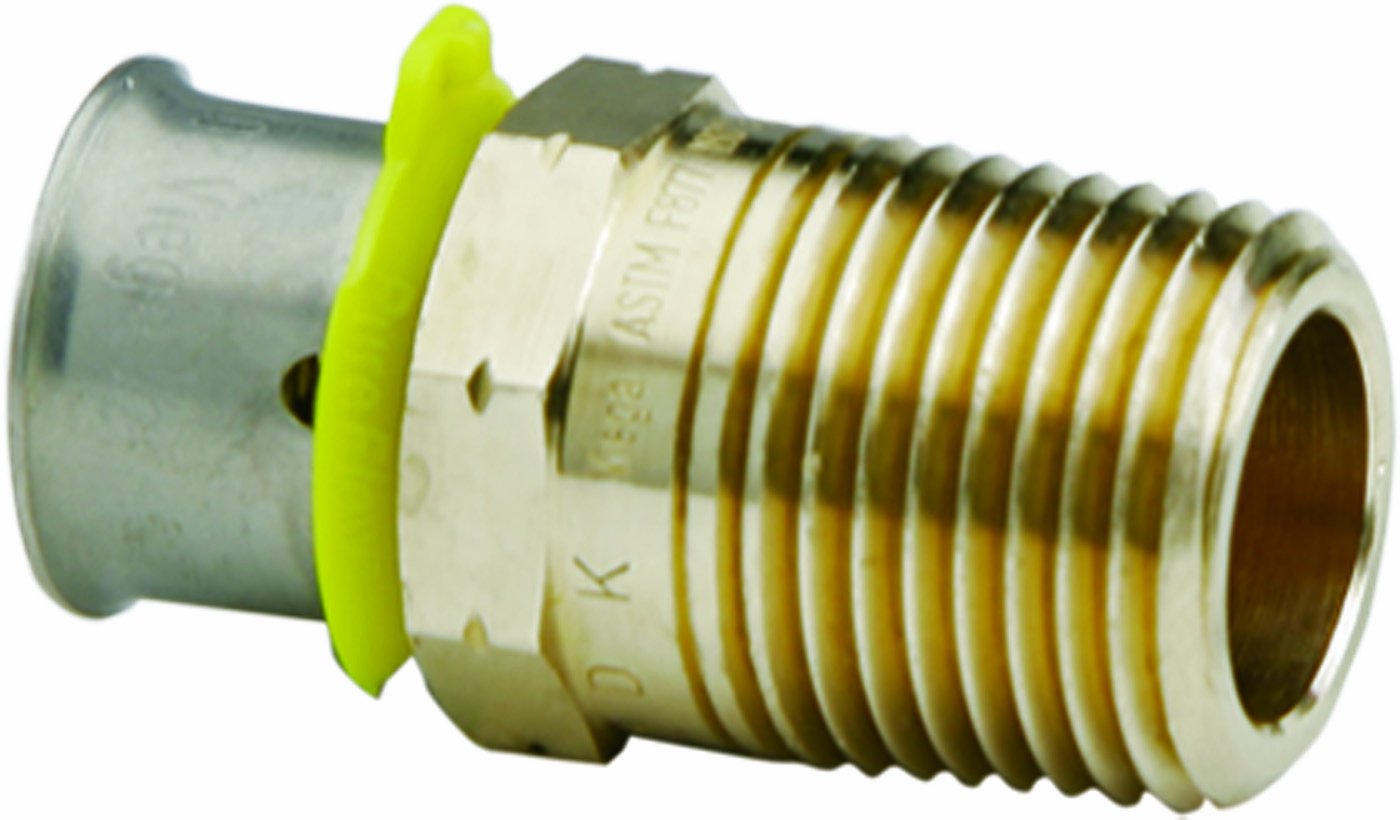

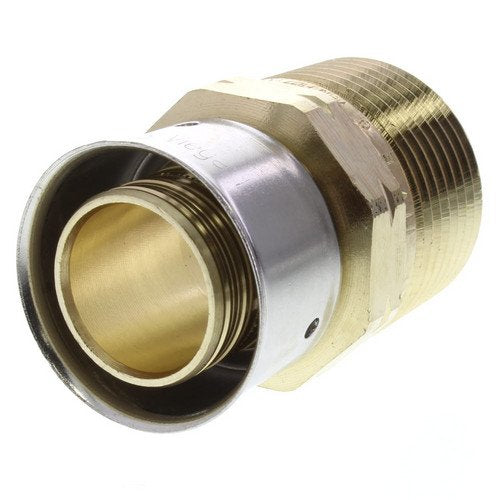

Viega 90561 Pex Press x Male NPT Adapter 1 Inch

Product Description

The VIEGA 90561 adapter fitting is a straight male adapter with a 1-inch size A and a 1-inch size B. Constructed from bronze, it meets material specification ASTM F876/877/E84/F2023. It is suitable for hot and cold potable water, rainwater/gray water, hydronic heating and cooling, and fire sprinkler applications.

• Adapter Fitting
• Lead-Free
• End Connection: PureFlow Press x Male Threaded

Product Highlights

This bronze adapter fitting is ideal for PEX press connections to female NPT threads in various plumbing and heating applications.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 90561
• Country of Origin: Import

Technical Specifications

• Type: Male, Straight
• Size A: 1 Inch
• Size B: 1 Inch
• End Connection: PureFlow Press x Male Threaded
• Material: Bronze
• Material Specification: ASTM F876/877/E84/F2023
• Pressure Rating: 160 PSI
• Temperature Rating: 180 Deg F (Potable), 200 Deg F (Hydronic)
• Application: Hot and Cold Potable Water, Rainwater/Gray Water, Hydronic Heating and Cooling, Fire Sprinkler
• Applicable Standard: UL/ANSI 263/1821, CAN/ULC S101/S102.2, CSA B137.5, CPC, NSPC, UMC, UPC, IMC, IPC, IRC, NBCC, NPCC, ICC, IAPMO, HUD MR1276, NFPA 13D, NSF/ANSI 14/61/359/372
• Brand: Viega
• Manufacturer: Viega
• MPN: 90561
• Nominal Size: 1 In
• Length: 1.41 In
• Series: PureFlow®
• End Style: Press x MNPT
• Domestic/Import: Import
