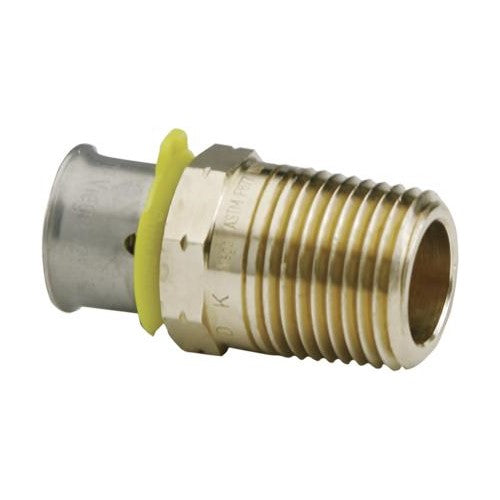

Viega 90521 PureFlow PEX Press Adapter, 1/2 inch x 1/2 inch

Product Description

The Viega 90521 PureFlow PEX Press Adapter is a zero lead bronze adapter with 1/2 inch press and 1/2 inch male threaded end connections. It is suitable for hot and cold potable water, rainwater/gray water, hydronic heating and cooling, and fire sprinkler applications.

• Lead-Free
• Adapter Fitting
• No glue, solder torches or lubricants needed

Product Highlights

This Viega PureFlow PEX Press Adapter is resistant to corrosion and dezincification and can be installed in nearly any climate.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 90521
• Country of Origin: DE

Technical Specifications

• Type: Male, Straight
• Size A: 1/2 Inch
• Size B: 1/2 Inch
• End Connection: PureFlow Press x Male Threaded
• Material: Bronze
• Material Specification: ASTM F876/877/E84/F2023
• Pressure Rating: 160 PSI
• Temperature Rating: 180 Deg F (Potable), 200 Deg F (Hydronic)
• Application: Hot and Cold Potable Water, Rainwater/Gray Water, Hydronic Heating and Cooling, Fire Sprinkler
• Applicable Standard: UL/ANSI 263/1821, CAN/ULC S101/S102.2, CSA B137.5, CPC, NSPC, UMC, UPC, IMC, IPC, IRC, NBCC, NPCC, ICC, IAPMO, HUD MR1276, NFPA 13D, NSF/ANSI 14/61/359/372
• Nominal Size: 1/2 in
• Series: PureFlow
• Lead Free: Yes
