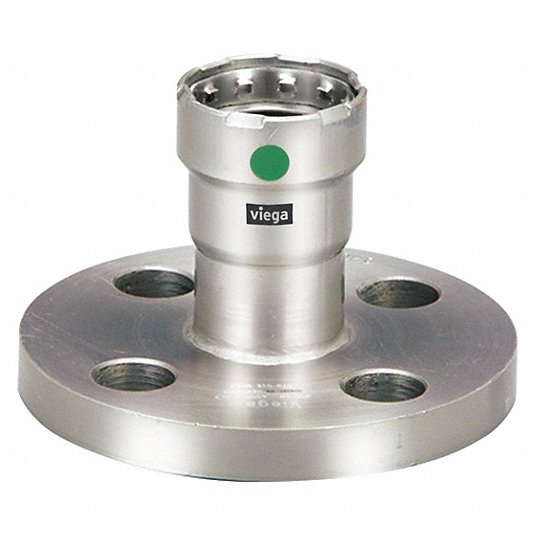

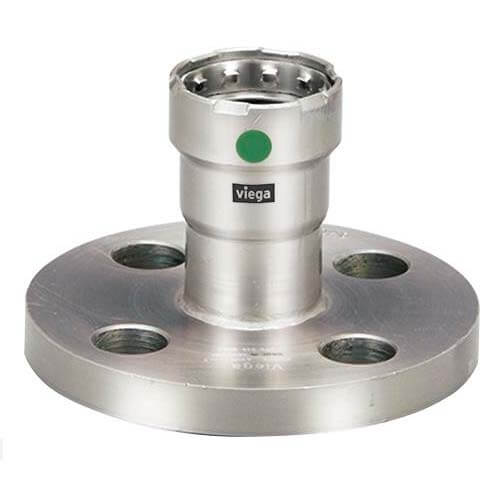

Viega 90460 2 inches mpss flange 316 pxbp

Brand: VIEGA
SKU: 90460
Availability: In Stock

Ships same day if ordered by 12 pm
$477.65
$477.65
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The VIEGA 90460 2" MPSS Flange 316 PXBP is designed for use with stainless steel pipes in potable water applications. This flange provides easy access for cleaning, inspection, and modification. It features MegaPress technology and is constructed from 316 stainless steel.

  • MegaPress technology
  • 316 stainless steel construction
  • Smart Connect technology

Product Highlights

This Viega MegaPress flange is made from 316 stainless steel and provides a secure press connection for commercial and industrial applications.

Product Information

Standard Information

  • Brand: VIEGA
  • Manufacturer Part Number: 90460
  • Country of Origin: Germany
Technical Specifications
MPN
90460
Brand
VIEGA
Size
2"
Material
316 Stainless Steel
Connection Type
Press
Reference ID
VIEGA90460
Flange
Flange
Pipe Size
2 in
Standards
ASTM A312, ASTM A403, CRN 13492.5 A/B, IAPMO, IAPMO PS 117, ICC, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9
Tube Size
2 in
Compliance
CRN 13492.5 A/B, IAPMO PS117, ICC-LC1002, NSF 372, NSF/ANSI 61
Application
Potable Water
Temperature Range
0 Degrees to 250 Degrees F
Fitting Shape
Flange
Max. Pressure
200 psi
Material Grade
Stainless Steel, 316 SS
Overall Length
3 1/2 in
Stop and Shape
Flange Adapter
End Connection Type
Flange, Press
O-Ring Material
EPDM
Fitting Material
Stainless Steel
Fitting Pipe Size
2 in
Fitting Body Material
316 Stainless Steel
Tube Fitting Material
316 Stainless Steel
Specific Fitting Shape
Flange Adapter
Fitting Connection Type
Press
Flange Outside Diameter
5.875 in
Fitting Side A Pipe Size
2 in
Pipe Size - Pipe Fitting
2"
Maximum Operating Pressure
200 psi
Specific Pipe Fitting Shape
Flange
Pipe Fitting Connection Type
Press
Maximum Operating Temperature
250 Degrees F
Minimum Operating Temperature
0 Degrees F
Fitting Side A Connection Type
Press-fit
Fitting Side B Connection Type
Flange
Country of Origin (subject to change)
Germany
Nominal Size
2 In
End Style
Press
Seal Material
EPDM
Manufacturer Name
Viega
Pressure Rating
200 psi
Temperature Rating
0 to 250 deg F
Includes
EPDM Sealing Element (Green Dot)
Domestic/Import
Import
Standards and Approvals
ASTM A312/A403 | CRN 13492.5 A/B | IAPMO to IAPMO PS117 | ICC-LC1002 | TSSA/ASME B31.1/B31.3/B31.9 | NSF/ANSI 61/372
L
3.50 in
A
1.54 in
b
0.77 in
D
5.91 in
d
0.75 in
k
4.76 in
Type
Flange
Material Family
Stainless Steel
Manufacturer Part
90460
Connection
Press
Manufacturer
Viega
Sub-brand
Mega Press
Fittings
Fitting
Connector Type
Adapter
For Media Type
Potable Water
UNSPSC
40142403
