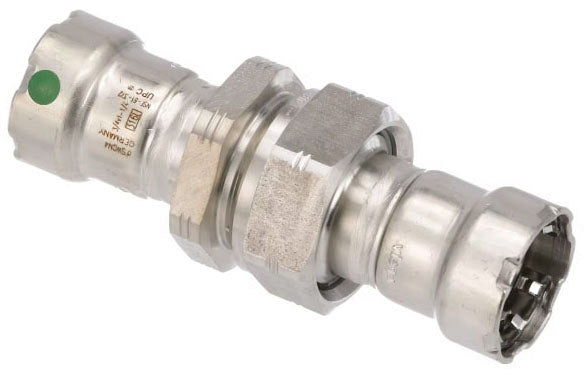

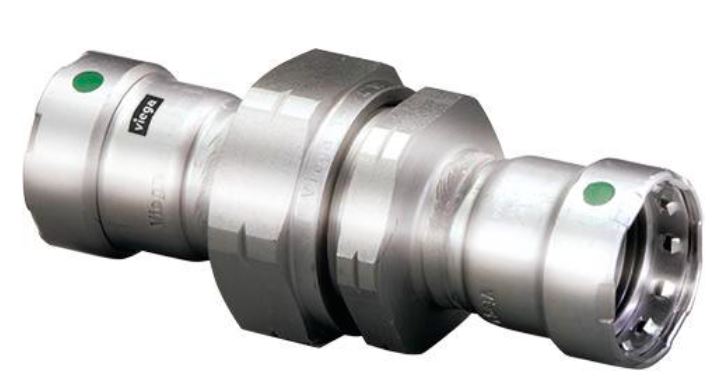

Viega 90420 3/4 inches 316 Megapress Union

Product Description

The VIEGA 90420 is a 3/4" 316 Viega Megapress union. Constructed from 316 stainless steel, this union fitting utilizes MegaPress technology for press connections. Designed for potable water applications, it features an EPDM O-ring for a reliable seal. This union fitting is suitable for use with Schedule 10 to Schedule 40 stainless steel pipe.

• MegaPress technology
• 316 stainless steel construction
• Union fitting

Product Highlights

3/4" union fitting with press-fit connection, made from 316 stainless steel for durability and corrosion resistance.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 90420
• Country of Origin: Germany

Technical Specifications

• Brand: VIEGA
• MPN: 90420
• Size: 3/4" x 3/4"
• Material: 316 stainless steel
• Type: Union
• Application: Potable Water
• Fitting Shape: Union
• Max. Pressure: 200 psi
• Material Grade: 316
• Connection Type: Press-Fit x Press-Fit
• O-Ring Material: EPDM
• Fitting Material: Stainless Steel
• Fitting Pipe Size: 3/4 in
• End Connection Type: Press
• Pipe Size (Fittings): 3/4" x 3/4"
• Fitting Body Material: 316 Stainless Steel
• Tube Fitting Material: 316 Stainless Steel
• Specific Fitting Shape: Straight Union
• Fitting Connection Type: Press x Press
• Fitting Side A Pipe Size: 3/4 in
• Fitting Side B Pipe Size: 3/4 in
• Pipe Size - Pipe Fitting: 3/4 in x 3/4 in
• Maximum Operating Pressure: 200 psi
• Specific Pipe Fitting Shape: Union
• Pipe Fitting Connection Type: Press x Press
• Maximum Operating Temperature: 250 Degrees F
• Minimum Operating Temperature: 0 Degrees F
• Fitting Side A Connection Type: Press-Fit
• Fitting Side B Connection Type: Press-Fit
• Fitting Side B Tube Outer Diameter: 3/4 in
• Country of Origin (subject to change): Germany
• Domestic/Import: Import
• End Style: Press
• Fitting/Connector Type: Union
• Nominal Size: 3/4 In
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 deg F
• Item: Union
• Standards: ASTM A312, ASTM A403, CRN 13492.5 A/B, IAPMO, IAPMO PS 117, ICC, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9
• Tube Size: 3/4 in x 3/4 in
• Compliance: CRN 13492.5 A/B, IAPMO PS117, ICC-LC1002, NSF 372, NSF/ANSI 61
• For Tube OD: 3/4 in
• Temp. Range: 0 Degrees to 250 Degrees F
• L: 5.00 in
• A: 2.69 in
• WS: 1.81 in
• WS1: 1.81 in
• Megapress/Propress: MEGAPRESS
