Viega 90400 MegaPress Cap 1 inches

Product Description

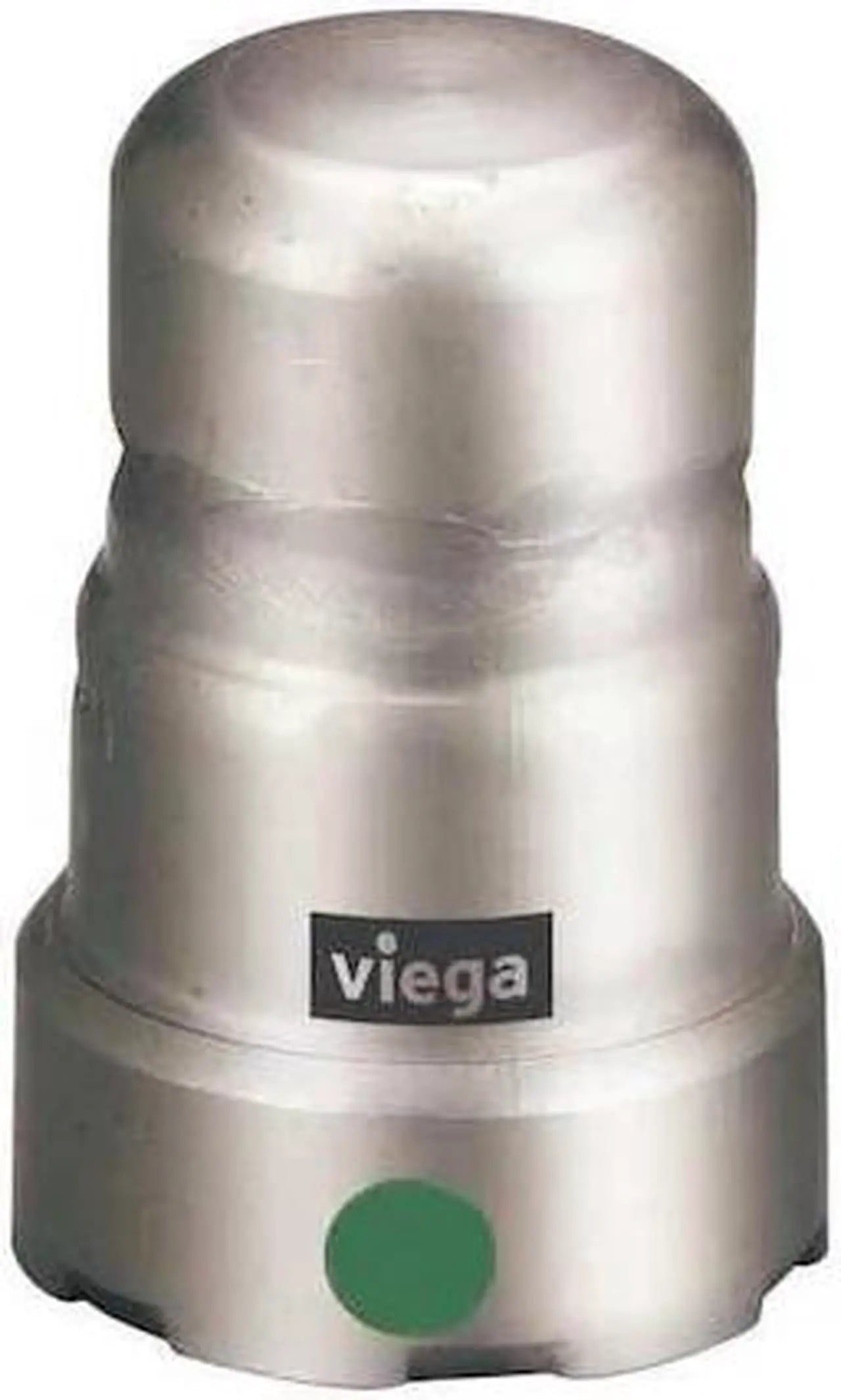

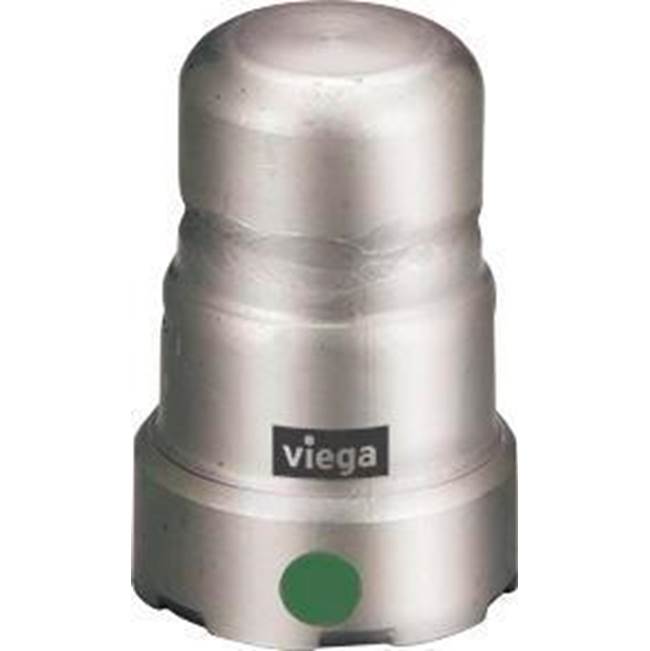

The VIEGA 90400 MegaPress Cap is a 1" cap made from 316 stainless steel. Designed for potable water applications, this cap features a press-fit connection and EPDM sealing elements. It is suitable for systems with a maximum operating pressure of 200 psi and temperatures up to 250 Degrees F.

• Smart Connect feature
• Stainless Steel 316 construction
• Press connection

Product Highlights

The Viega MegaPress cap offers a secure, fast, and easy connection without welding or heavy equipment. Ideal for potable water systems.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 90400
• Country of Origin: Germany

Technical Specifications

• Application: Potable Water
• Compatible Pipe Size: 1 in
• Fitting Connection Type: Press Fit
• Fitting Material: Stainless Steel
• Material Grade: 316
• O-Ring Material: EPDM
• Specific Fitting Shape: Cap
• Overall Length: 2 7/16 in
• Maximum Operating Pressure: 200 psi
• Maximum Operating Temperature: 250 Degrees F
• Standards: ASTM A312, ASTM A403, IAPMO Uniform Plumbing Code (UPC), ICC International Plumbing Code (IPC), NSF/ANSI 372, TSSA/ASME B31.1: Power Piping, TSSA/ASME B31.3, TSSA/ASME B31.9
• Tube Size: 1 in
• Compliance: CRN 13492.5 A/B, IAPMO PS117, ICC-LC1002, NSF 372, NSF/ANSI 61
• Fitting Shape: Cap
• Max. Pressure: 200 psi
• Stop and Shape: Cap
• Fitting Pipe Size: 1 in
• End Connection Type: Press
• Pipe Size (Fittings): 1"
• Fitting Body Material: 316 Stainless Steel
• Tube Fitting Material: 316 Stainless Steel
• Specific Pipe Fitting Shape: Cap
• Pipe Size - Pipe Fitting: 1 in
• Minimum Operating Temperature: 0 Degrees F
• Brand: VIEGA
• MPN: 90400
• Country of Origin: DE
• Weight: 0.3800
• Length: 2.500
• Width: 2.000
• Depth: 2.000
• Features: Crimp Fitting Cap, Application Potable Water, Compatible Pipe Siz
• Components: EDPM sealing elements
• Product Type: Cap
• Height: 1.78"
• Finish: No Finish Group
• Collection: MegaPress 316
• Material: 316 Stainless Steel
• Unit Of Measure: Piece
