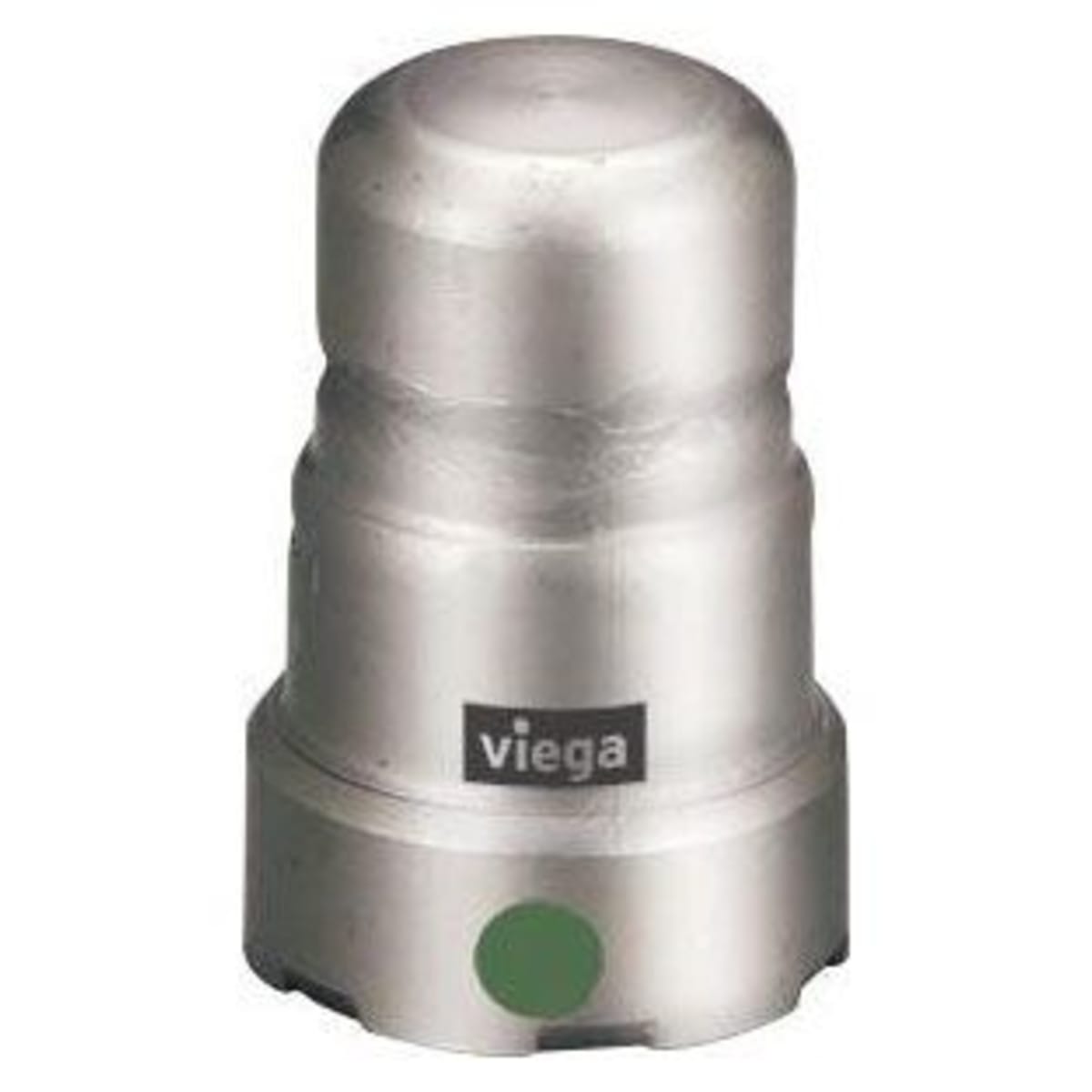

Viega 90390 MegaPress Cap 1/2 inches

Product Description

The VIEGA 90390 MegaPress cap is a 1/2" 316 stainless steel cap fitting. Designed for potable water applications, this cap has a press fit connection. It is suitable for use in various plumbing systems and is compliant with industry standards.

• Made of 316 stainless steel
• Features a press fit connection
• Compliant with ASTM A312, ASTM A403, IAPMO Uniform Plumbing Code (UPC), ICC International Plumbing Code (IPC), NSF/ANSI 372, TSSA/ASME B31.1: Power Piping, TSSA/ASME B31.3, TSSA/ASME B31.9

Product Highlights

The VIEGA MegaPress cap is made of 316 stainless steel and has a press fit connection.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 90390
• Country of Origin: Germany

Technical Specifications

• Size: 1/2"
• Type: Cap
• Material: 316 stainless steel
• Connection_Type: Press
• Item [Specifications]: Cap
• Pipe Size [Specifications]: 1/2 in
• Standards [Specifications]: ASTM A312, ASTM A403, IAPMO Uniform Plumbing Code (UPC), ICC International Plumbing Code (IPC), NSF/ANSI 372, TSSA/ASME B31.1: Power Piping, TSSA/ASME B31.3, TSSA/ASME B31.9
• Tube Size [Specifications]: 1/2 in
• Compliance [Specifications]: CRN 13492.5 A/B, IAPMO PS117, ICC-LC1002, NSF 372, NSF/ANSI 61
• Application [Specifications]: Potable Water
• Temp. Range [Specifications]: 0 Degrees to 250 Degrees F
• Fitting Shape [Specifications]: Cap
• Max. Pressure [Specifications]: 200 psi
• Material Grade [Specifications]: 316
• Overall Length [Specifications]: 2 5/32 in
• Stop and Shape [Specifications]: Cap
• Connection Type [Specifications]: Press Fit
• O-Ring Material [Specifications]: EPDM
• Fitting Material [Specifications]: Stainless Steel
• Fitting Pipe Size [Specifications]: 1/2 in
• End Connection Type [Specifications]: Press
• Compatible Pipe Size [Specifications]: 1/2 in
• Pipe Size (Fittings) [Specifications]: 1/2"
• Fitting Body Material [Specifications]: 316 Stainless Steel
• Tube Fitting Material [Specifications]: 316 Stainless Steel
• Specific Fitting Shape [Specifications]: Cap
• Pipe Size - Pipe Fitting [Specifications]: 1/2 in
• Maximum Operating Pressure [Specifications]: 200 psi
• Specific Pipe Fitting Shape [Specifications]: Cap
• Pipe Fitting Connection Type [Specifications]: Press
• Maximum Operating Temperature [Specifications]: 250 Degrees F
• Minimum Operating Temperature [Specifications]: 0 Degrees F
