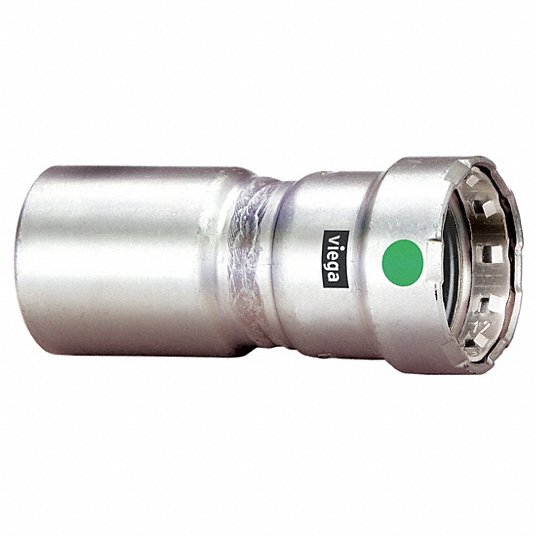

Viega 90380 MegaPress Reducer 2 inches x 1 inches

Product Description

The VIEGA 90380 MegaPress reducer is a 2" x 1" fitting made from 316 stainless steel. Designed for potable water applications, this reducer connects stainless steel pipes using a press system. It is ideal for commercial and industrial use. Viega MegaPress fittings utilize an EPDM sealing element to provide a reliable, leak-free connection.

• Patented Viega Smart Connect makes secure connection in less than 7 sec
• Minimizes system downtime by allowing for wet connection
• Fast and easy to use

Product Highlights

The Viega MegaPress system stands up to harsh environments while transporting process and potable water, ammonia, low pressure steam, chlorides or any number of other essential fluids or gases.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 90380
• Country of Origin: Germany

Technical Specifications

• Item [Specifications]: Reducer
• Pipe Size [Specifications]: 1 in
• Standards [Specifications]: ASTM A312, ASTM A403, CRN 13492.5 A/B, IAPMO, IAPMO PS 117, ICC, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9
• Tube Size [Specifications]: 2 in x 1 in
• Compliance [Specifications]: CRN 13492.5 A/B, IAPMO PS117, ICC-LC1002, NSF 372, NSF/ANSI 61
• Application [Specifications]: Potable Water
• Temp. Range [Specifications]: 0 Degrees to 250 Degrees F
• Fitting Shape [Specifications]: Adapter
• Max. Pressure [Specifications]: 200 psi
• Material Grade [Specifications]: 316
• Overall Length [Specifications]: 4 1/2 in
• Stop and Shape [Specifications]: Straight Adapter
• Connection Type [Specifications]: FTG x Press-Fit
• O-Ring Material [Specifications]: EPDM
• Copper Tube Size [Specifications]: 2 in
• Fitting Material [Specifications]: Stainless Steel
• Fitting Pipe Size [Specifications]: 1 in
• End Connection Type [Specifications]: Fitting, Press
• Pipe Size (Fittings) [Specifications]: 2" x 1"
• Fitting Body Material [Specifications]: 316 Stainless Steel
• Tube Fitting Material [Specifications]: 316 Stainless Steel
• Specific Fitting Shape [Specifications]: Straight Adapter
• Fitting Connection Type [Specifications]: Press x Street
• Fitting Copper Tube Size [Specifications]: 2 in
• Fitting Side B Pipe Size [Specifications]: 1 in
• Pipe Size - Pipe Fitting [Specifications]: 2 in x 1 in
• Maximum Operating Pressure [Specifications]: 200 psi
• Specific Pipe Fitting Shape [Specifications]: Reducer
• Maximum Operating Temperature [Specifications]: 250 Degrees F
• Minimum Operating Temperature [Specifications]: 0 Degrees F
• Fitting Side A Connection Type [Specifications]: FTG
• Fitting Side B Connection Type [Specifications]: Press-Fit
• Fitting Side A Copper Tube Size [Specifications]: 2 in
• Country of Origin (subject to change) [Specifications]: Germany
• Brand: MegaPress
• Fitting/Connector Type: Reducer
• Nominal Size: 2 x 1 in
• End Style: Fitting x Press
• Material: 316 Stainless Steel
• Seal Material: EPDM
• Manufacturer Name: Viega
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 deg F
• Includes: EPDM Sealing Element (Green Dot)
• Application: Commercial and Industrial
• Domestic/Import: Import
• Country of Origin: DE
• Standards and Approvals: ASTM A312/A403 | CRN 13492.5 A/B | IAPMO to IAPMO PS117 | ICC-LC1002 | TSSA/ASME B31.1/B31.3/B31.9 | NSF/ANSI 61/372
• Components: EPDM sealing elements
• Sub-brand: Mega Press
• Fittings: Fitting Shape Straight
• For Media Type: Potable Water
• UNSPSC: 40142615
• Type: Mega Press
• Model: MEGAPRESS 90380
• MPN: 90380
• L: 4.50 in
• A: 3.15 in
• MFR #: 90380
• Zoro #: G0566032
• UPC #: 691514903804
• Tube Size: 2 in x 1 in
• Fitting Side 1 Pipe Size: 2 in
• Fitting Side 2 Pipe Size: 1 in
• Item: Crimp Fitting
• Operating Pressure - Maximum: 200 psi
• Fitting Side 2 Connection Type: Press-fit
• Fitting Side 1 Connection Type: FTG
• Operating Temperature - Maximum: 250 Degrees F
• Operating Temperature - Minimum: 0 Degrees F
