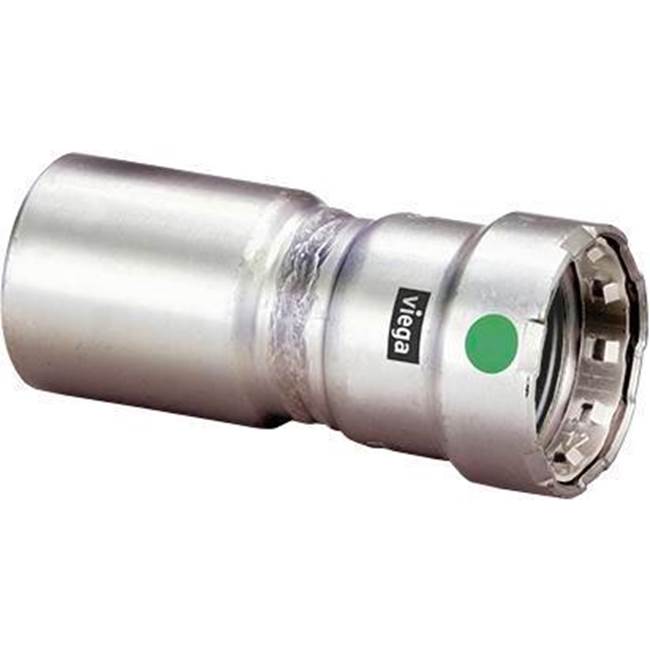

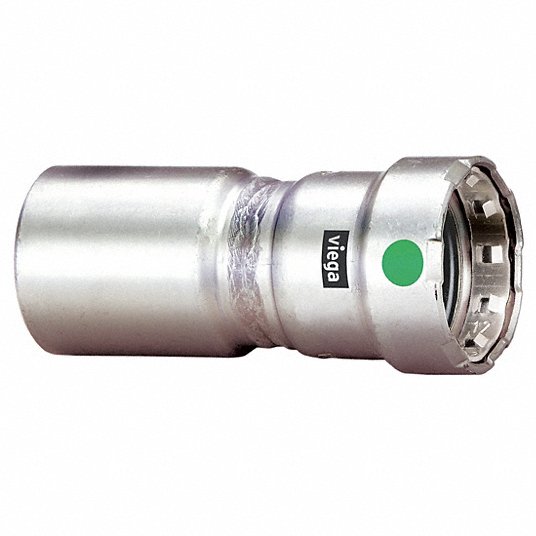

Viega 90375 MegaPress Reducer 1-1/2 x 1 in

Product Description

The VIEGA 90375 MegaPress reducer is a 316 stainless steel fitting designed for use with Schedule 10 to Schedule 40 stainless steel pipe. It forms a complete press system suitable for commercial and industrial applications. The MegaPress system utilizes a versatile EPDM sealing element to provide a reliable, leak-free connection.

• 316 stainless steel construction
• MegaPress technology
• Smart Connect technology

Product Highlights

This reducer is ideal for potable water, ammonia, low pressure steam, chlorides, and other essential fluids or gases.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 90375
• Country of Origin: Germany

Technical Specifications

• Material: 316 Stainless Steel
• Connection Type: FTG x Press-Fit
• Tube Size: 1-1/2 in x 1 in
• Application: Potable Water
• Maximum Operating Pressure: 200 psi
• Maximum Operating Temperature: 250 Degrees F
• O-Ring Material: EPDM
• Overall Length: 4 3/16 in
• Fitting Shape: Adapter
• Specific Fitting Shape: Straight Adapter
• Standards: ASTM A312, ASTM A403, CRN 13492.5 A/B, IAPMO, IAPMO PS 117, ICC, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9
• Item: Reducer
• Pipe Size: 1 in
• Material Grade: 316
• End Connection Type: Fitting, Press
• Fitting Body Material: 316 Stainless Steel
• Tube Fitting Material: 316 Stainless Steel
• Fitting Connection Type: Press x Street
• Fitting Copper Tube Size: 1 1/2 in
• Fitting Side B Pipe Size: 1 in
• Specific Pipe Fitting Shape: Reducer
• Pipe Fitting Connection Type: Press x Street
• Fitting Side A Connection Type: FTG
• Fitting Side B Connection Type: Press-Fit
• Fitting Side A Copper Tube Size: 1 1/2 in
• Nominal Size: 1-1/2 x 1 in
• End Style: Fitting x Press
• Seal Material: EPDM
• Temperature Rating: 0 to 250 deg F
• Includes: EPDM Sealing Element (Green Dot)
• Sub Brand: MegaPress
• Fitting Size: 1-1/2 x 1 in
• Fitting Type: Reducer
• Nominal Size A: 1-1/2 in
• Nominal Size B: 1 in
• Fitting Material: Stainless Steel
• For Use With: SCH 5 to SCH 40 Stainless Steel Pipes
• Applications: Commercial and Industrial
• Product Type: Reducer
• Finish: No Finish Group
• Collection: MegaPress 316
• For Media Type: Potable Water
• UNSPSC: 40142615
