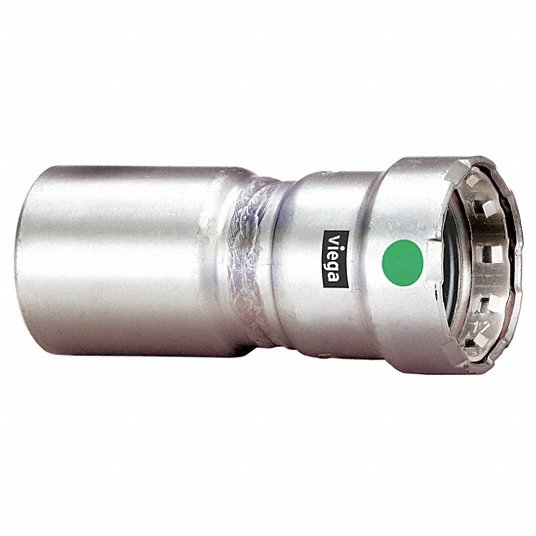

Viega 90360 MegaPress Reducer 1 inches x 1/2 inches

Product Description

The VIEGA 90360 MegaPress Reducer, sized at 1" x 1/2", is crafted from 316 stainless steel. Designed for use with Schedule 10 to Schedule 40 stainless steel pipe, it forms a complete press system suitable for commercial and industrial applications. It utilizes an EPDM sealing element to ensure a reliable, leak-free connection.

• Smart Connect feature
• Made of Stainless Steel 316
• Suitable for potable water applications

Product Highlights

The Viega MegaPress system minimizes downtime with wet connections and eliminates the need for welding, threading, or heavy equipment.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 90360
• Country of Origin: Germany

Technical Specifications

• Application: Potable Water
• Fitting Shape: Adapter
• Max. Pressure: 200 psi
• Material Grade: 316
• Overall Length: 3 1/4 in
• Stop and Shape: Straight Adapter
• Connection Type: FTG x Press-Fit
• O-Ring Material: EPDM
• Copper Tube Size: 1 in
• Fitting Material: Stainless Steel
• Fitting Pipe Size: 1/2 in
• End Connection Type: Fitting, Press
• Fitting Body Material: 316 Stainless Steel
• Tube Fitting Material: 316 Stainless Steel
• Specific Fitting Shape: Straight Adapter
• Fitting Connection Type: Press x Street
• Fitting Copper Tube Size: 1 in
• Fitting Side B Pipe Size: 1/2 in
• Specific Pipe Fitting Shape: Reducer
• Pipe Fitting Connection Type: Press x Street
• Maximum Operating Temperature: 250 Degrees F
• Minimum Operating Temperature: 0 Degrees F
• Fitting Side A Connection Type: FTG
• Fitting Side B Connection Type: Press-Fit
• Fitting Side A Copper Tube Size: 1 in
• Standards: ASTM A312; ASTM A403; CRN 13492.5 A/B; IAPMO; IAPMO PS 117; ICC; ICC LC1002; NSF/ANSI 372; NSF/ANSI 61; TSSA/ASME B31.1; TSSA/ASME B31.3; TSSA/ASME B31.9
• Maximum Operating Pressure: 200 psi
• Temperature Range: 0 Degrees to 250 Degrees F
• Dimensions: 3.24 in L
• Material: 316 Stainless Steel
• Nominal Size: 1 x 1/2 In
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 deg F
• Type: 1x1/2
• L: 3.24 in
• A: 2.17 in
• Weight: 0.339 lb
• Brand: VIEGA
• MPN: 90360
• Nominal Pipe Size: 1 x 1/2 in
• Tube Size [Specifications]: 1 in x 1/2 in
• Compliance [Specifications]: CRN 13492.5 A/B, IAPMO PS117, ICC-LC1002, NSF 372, NSF/ANSI 61
• Temp. Range [Specifications]: 0 Degrees to 250 Degrees F
• Material Grade [Specifications]: 316
• Overall Length [Specifications]: 3 1/4 in
• Fitting Material [Specifications]: Stainless Steel
• Fitting Pipe Size [Specifications]: 1/2 in
• Pipe Size (Fittings) [Specifications]: 1" x 1/2"
• Maximum Operating Pressure [Specifications]: 200 psi
• Minimum Operating Temperature [Specifications]: 0 Degrees F
• Fitting Side A Connection Type [Specifications]: FTG
• Fitting Side B Connection Type [Specifications]: Press-Fit
• Fitting Side A Copper Tube Size [Specifications]: 1 in
• Pipe Size [Specifications]: 1/2 in
• Item [Specifications]: Reducer
• Fitting Shape [Specifications]: Adapter
• Specific Fitting Shape [Specifications]: Straight Adapter
• Pipe Size - Pipe Fitting [Specifications]: 1 in x 1/2 in
• Sub-brand: Mega Press
• Fittings: Fitting Shape Straight
• Fitting Side 1 Connection Type: FTG
• Fitting Side A Pipe Size: 1 in
• For Media Type: Potable Water
• UNSPSC: 40142615
