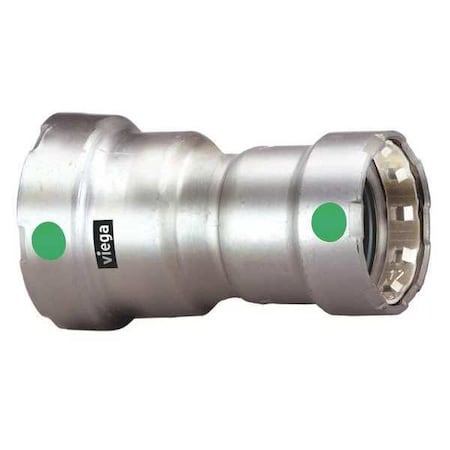

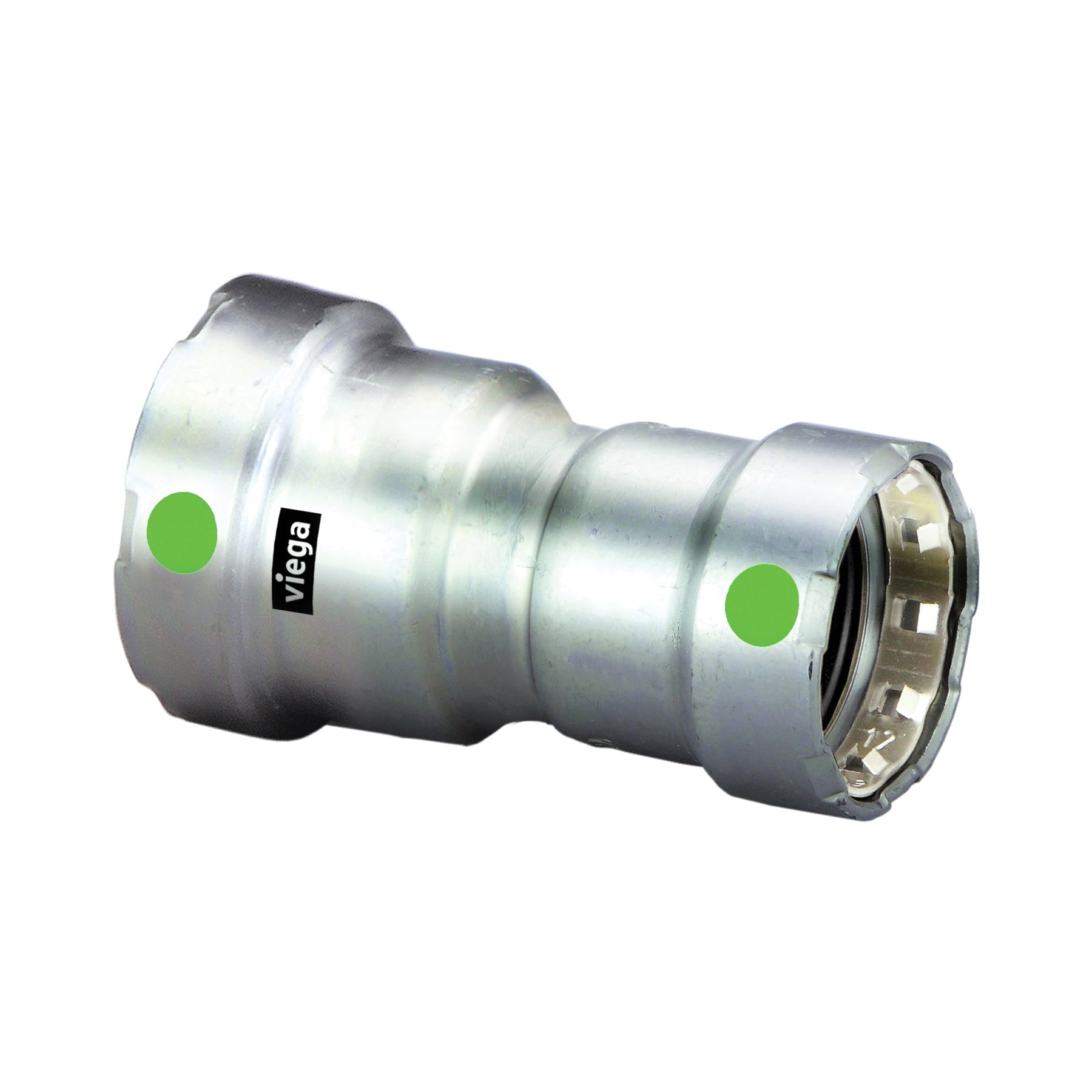

Viega 90340 MegaPress Reducer 1 inches x 3/4 inches

Product Description

The VIEGA 90340 MegaPress reducer is designed for use with Schedule 10 to Schedule 40 stainless steel pipe, making it ideal for commercial and industrial applications. These 316 stainless steel fittings utilize an EPDM sealing element to provide a reliable, leak-free connection. It can stand up to harsh environments while transporting process and potable water, ammonia, low pressure steam, chlorides or any number of other essential fluids or gases.

• MegaPress technology
• 316 stainless steel construction
• Press connection

Product Highlights

The Viega MegaPress system minimizes downtime by allowing for wet connections. It's fast, easy to use, and doesn't require welding, grinding, or heavy equipment.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 90340
• Country of Origin: Germany

Technical Specifications

• Fitting Connection Type: Press x Press
• Fitting Shape: Connector
• Max. Pressure: 200 psi
• Pipe Size (Fittings): 1" x 3/4"
• Standards: ASTM A312: Standard Specification for Seamless Welded and Heavily Cold Worked Austenitic Stainless Steel Pipe, ASTM A403: Standard Specification for Wrought Austenitic Stainless Steel Piping, IAPMO: Uniform Plumbing Code, ICC: International Plumbing
• Temp. Range: 0 Degrees to 250 Degrees F
• Tube Fitting Material: 316 Stainless Steel
• Tube Size: 1" x 3/4"
• Primary Vendor Part Number: 90340
• Material: 316 stainless steel
• Type: Reducer
• Application: Potable Water
• For Tube OD: 3/4 in
• Material Grade: 316
• Overall Length: 3 3/4 in
• Stop and Shape: Straight Reducing Connector
• Connection Type: Press-Fit x Press-Fit
• O-Ring Material: EPDM
• Fitting Material: Stainless Steel
• Fitting Pipe Size: 1 in, 3/4 in
• End Connection Type: Press
• Fitting Body Material: 316 Stainless Steel
• Specific Fitting Shape: Straight Reducing Connector
• Fitting Side A Pipe Size: 1 in
• Fitting Side B Pipe Size: 3/4 in
• Pipe Size - Pipe Fitting: 1 in x 3/4 in
• Maximum Operating Pressure: 200 psi
• Specific Pipe Fitting Shape: Reducer
• Pipe Fitting Connection Type: Press x Press
• Maximum Operating Temperature: 250 Degrees F
• Minimum Operating Temperature: 0 Degrees F
• Fitting Side A Connection Type: Press-Fit
• Fitting Side B Connection Type: Press-Fit
• Fitting Side B Tube Outer Diameter: 3/4 in
• Country of Origin (subject to change): Germany
• Size: 1 X 3/4 in
• Fitting/Connector Type: Reducer
• End Style: Press
• Temperature Rating: 0 To 250 deg F
• Pressure Rating: 200 psi
• Domestic Import: Import
• Country Of Origin: DE
• Dimensions: 3.74 in L
• Manufacturer: Viega
• Category: MegaPress Press Fittings
• L: 3.74 in
• A: 1.24 in
• Weight: 0.478 lb
• OEM: Viega
• OEM #: 90340
