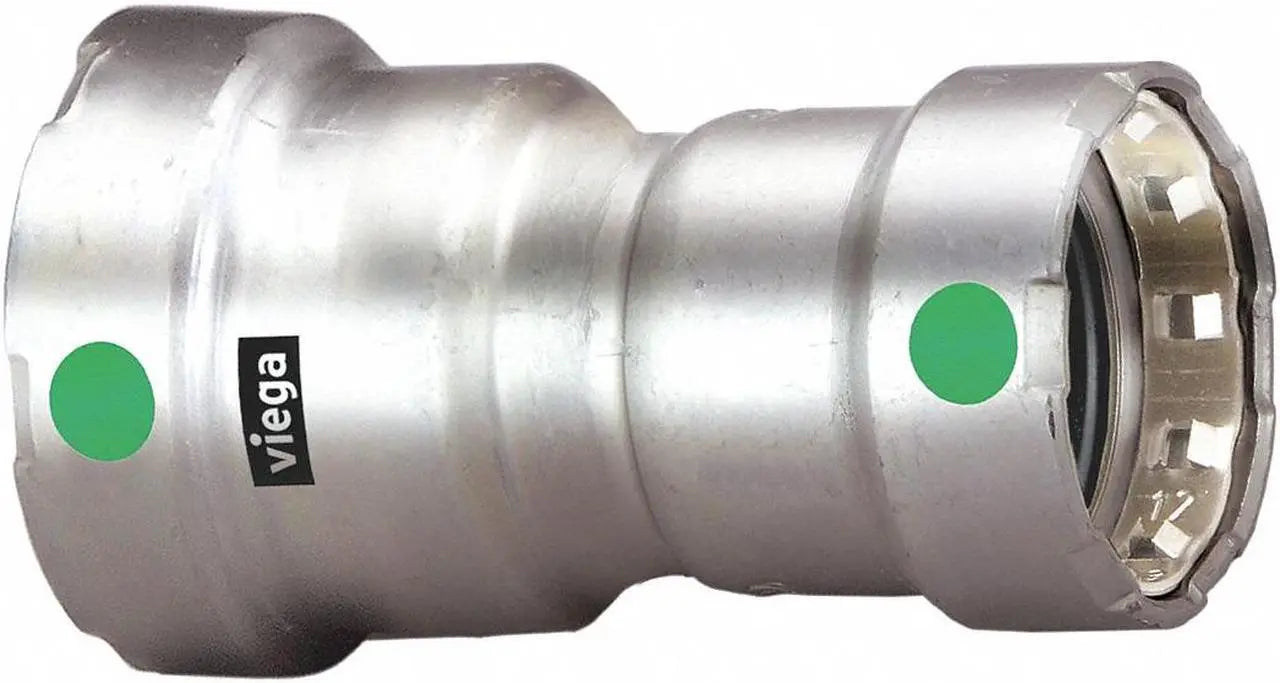

Viega 90335 MegaPress Reducer 3/4 inches x 1/2 inches

Product Description

The VIEGA 90335 MegaPress reducer is a 3/4" x 1/2" fitting made from 316 stainless steel. Designed for potable water applications, it features press-fit connections on both sides. This straight reducing connector has an EPDM O-ring and is suitable for use with Schedule 10 to Schedule 40 stainless steel pipe.

• Features press-fit connections for quick and easy installation
• Constructed from 316 stainless steel for durability and corrosion resistance
• Suitable for potable water applications

Product Highlights

The VIEGA MegaPress reducer provides a secure and efficient solution for connecting different pipe sizes in plumbing systems.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 90335
• Country of Origin: Germany

Technical Specifications

• Item [Specifications]: Reducer
• Pipe Size [Specifications]: 3/4 in x 1/2 in
• Standards [Specifications]: ASTM A312, ASTM A403, CRN 13492.5 A/B, IAPMO, IAPMO PS 117, ICC, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9
• Tube Size [Specifications]: 3/4 in x 1/2 in
• Compliance [Specifications]: CRN 13492.5 A/B, IAPMO PS117, ICC-LC1002, NSF 372, NSF/ANSI 61
• Application [Specifications]: Potable Water
• For Tube OD [Specifications]: 1/2 in
• Temp. Range [Specifications]: 0 Degrees to 250 Degrees F
• Fitting Shape [Specifications]: Connector
• Max. Pressure [Specifications]: 200 psi
• Material Grade [Specifications]: 316
• Overall Length [Specifications]: 3 7/16 in
• Stop and Shape [Specifications]: Straight Reducing Connector
• Connection Type [Specifications]: Press-Fit x Press-Fit
• O-Ring Material [Specifications]: EPDM
• Fitting Material [Specifications]: Stainless Steel
• Fitting Pipe Size [Specifications]: 3/4 in
• End Connection Type [Specifications]: Press
• Fitting Body Material [Specifications]: 316 Stainless Steel
• Tube Fitting Material [Specifications]: 316 Stainless Steel
• Specific Fitting Shape [Specifications]: Straight Reducing Connector
• Fitting Connection Type [Specifications]: Press x Press
• Fitting Side A Pipe Size [Specifications]: 3/4 in
• Fitting Side B Pipe Size [Specifications]: 1/2 in
• Pipe Size - Pipe Fitting [Specifications]: 3/4" x 1/2"
• Maximum Operating Pressure [Specifications]: 200 psi
• Specific Pipe Fitting Shape [Specifications]: Reducer
• Pipe Fitting Connection Type [Specifications]: Press x Press
• Maximum Operating Temperature [Specifications]: 250 Degrees F
• Minimum Operating Temperature [Specifications]: 0 Degrees F
• Fitting Side A Connection Type [Specifications]: Press-Fit
• Fitting Side B Connection Type [Specifications]: Press-Fit
• Fitting Side B Tube Outer Diameter [Specifications]: 1/2 in
• End Style: Press
• Fitting/Connector Type: Reducer
• Material: 316 Stainless Steel
• Nominal Size: 3/4 x 1/2 In
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 deg F
• Size: 3/4 X 1/2 in
