Product Description

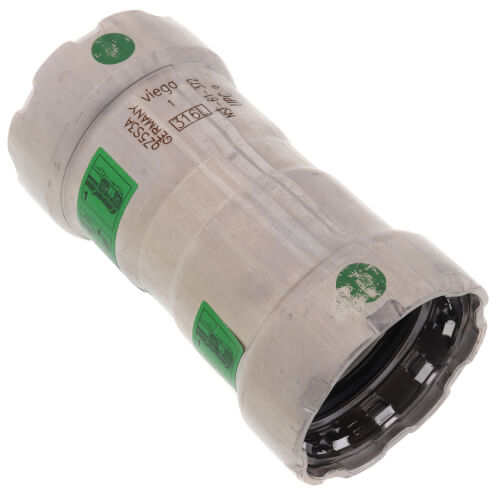

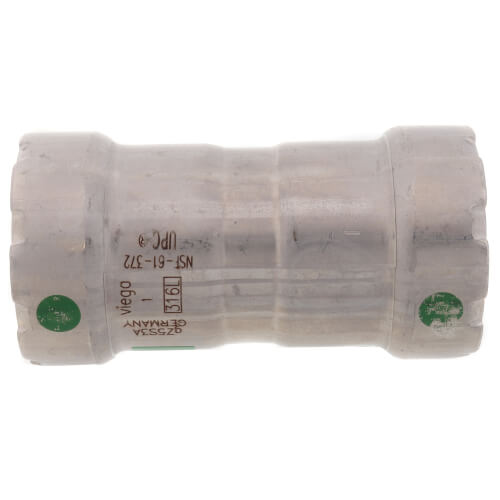

The VIEGA 90295 MegaPress coupling is designed for use with Schedule 10 to Schedule 40 stainless steel pipe. Constructed from 316 stainless steel, this coupling features press connections and a center stop. It is suitable for commercial and industrial applications, including potable water and low-pressure steam. The MegaPress system provides a reliable, leak-free connection.
- Constructed from 316 stainless steel
- Features press connection
- Maximum pressure of 200 psi and a temperature range of 0 to 250 deg F
Product Highlights
The Viega MegaPress system is designed for creating secure connections without welding or threading.
Product Information
Standard Information
-
Brand: VIEGA
-
Manufacturer Part Number: 90295
-
Country of Origin: Germany
Technical Specifications
-
MPN: 90295
-
Brand: VIEGA
-
Specific Fitting Shape: Coupling
-
Tube Fitting Material: 316 Stainless Steel
-
Tube Size: 1" x 1"
-
Fitting Connection Type: Press x Press
-
Pipe Size (Fittings): 1" x 1"
-
Max. Pressure: 200 psi
-
Temp. Range: 0 Degrees to 250 Degrees F
-
Standards: ASTM A53, IAPMO PS-117, ICC LC-1002, UL 213, FM Class 1920
-
Compliance: ASME B31, UPC, UMC, IPC, IMC, FM, UL
-
Size: 1"
-
Material: 316 stainless steel
-
Connection_Type: Press
-
Item [Specifications]: Coupling with Stop
-
Pipe Size [Specifications]: 1 in x 1 in
-
Standards [Specifications]: ASTM A312, ASTM A403, CRN 13492.5 A/B, IAPMO, IAPMO PS 117, ICC, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9
-
Tube Size [Specifications]: 1 in x 1 in
-
Compliance [Specifications]: CRN 13492.5 A/B, IAPMO PS117, ICC-LC1002, NSF 372, NSF/ANSI 61
-
Application [Specifications]: Potable Water
-
For Tube OD [Specifications]: 1 in
-
Fitting Shape [Specifications]: Connector
-
Material Grade [Specifications]: 316
-
Overall Length [Specifications]: 3 1/4 in
-
Stop and Shape [Specifications]: Rolled Center Stop Straight Connector
-
Connection Type [Specifications]: Press-Fit x Press-Fit
-
O-Ring Material [Specifications]: EPDM
-
Fitting Material [Specifications]: Stainless Steel
-
Fitting Pipe Size [Specifications]: 1 in
-
End Connection Type [Specifications]: Press
-
Includes Center Stop [Specifications]: Rolled Center Stop
-
Specific Pipe Fitting Shape [Specifications]: Coupling
-
Pipe Fitting Connection Type [Specifications]: Press x Press
-
Maximum Operating Temperature [Specifications]: 250 Degrees F
-
Minimum Operating Temperature [Specifications]: 0 Degrees F
-
Fitting Side A Connection Type [Specifications]: Press-Fit
-
Fitting Side B Connection Type [Specifications]: Press-Fit
-
Fitting Side B Tube Outer Diameter [Specifications]: 1 in
-
Fitting Body Material [Specifications]: 316 Stainless Steel
-
Nominal Size: 1 in
-
Seal Material: EPDM
-
Pressure Rating: 200 psi
-
Temperature Rating: 0 to 250 deg F
-
Domestic/Import: Import
-
Country of Origin: DE
-
Fitting Size: 1 in
-
Item Name: Coupling
-
Sub Brand: MegaPress
-
Fitting Type: Coupling
-
Nominal Size A: 1 in
-
Nominal Size B: 1 in
-
Applications: Commercial and Industrial
-
Standards/Approvals: ASTM A312/A403, CRN 13492.5 A/B, IAPMO PS-117, ICC-LC1002, TSSA/ASME B31.1/B31.3/B31.9, NSF/ANSI 61/372
-
For Use With: SCH 5 to SCH 40 Stainless Steel Pipes
