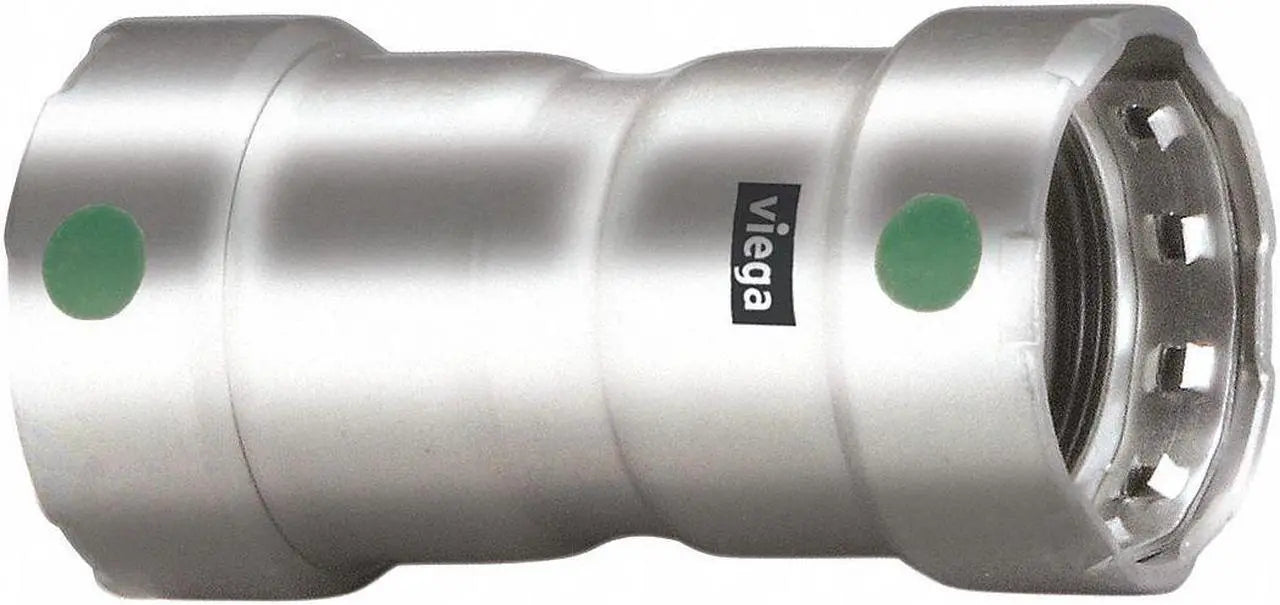

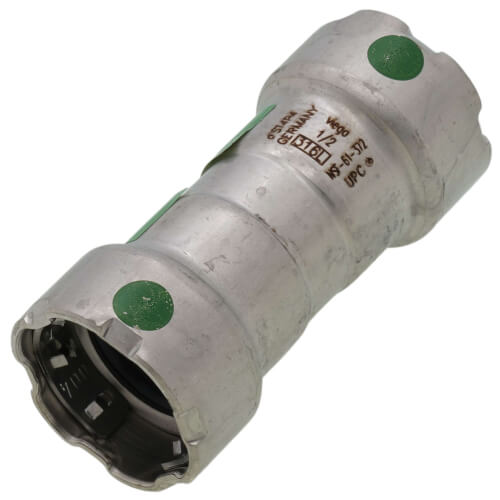

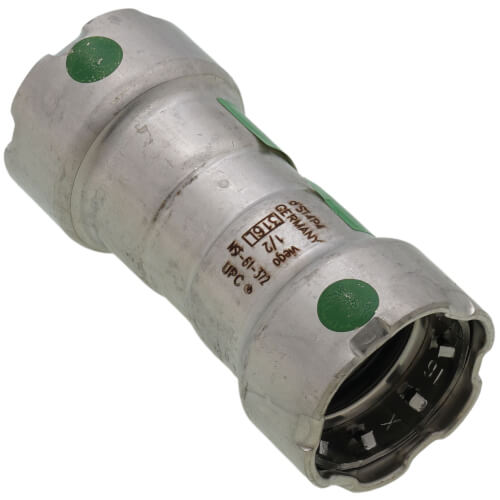

Viega 90285 MegaPress Coupling With Stop 1/2 inches x 1/2 inches

Product Description

The VIEGA 90285 MegaPress Coupling with Stop is a 1/2" x 1/2" coupling made of 316 stainless steel. It is designed for press connection and features Smart Connect technology. This coupling is suitable for potable water applications. It has a maximum pressure of 200 psi and a temperature range of 0 to 250 Degrees F.

• Made of 316 stainless steel
• Features press connection with Smart Connect technology
• Suitable for potable water applications

Product Highlights

The VIEGA MegaPress coupling is ideal for connecting 1/2" pipes in potable water systems, offering a secure and reliable press-fit connection.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 90285
• Country of Origin: Germany

Technical Specifications

• MPN: 90285
• Product Type: HOSE_PIPE_FITTING
• Product Group: BISS
• Specific Fitting Shape: Coupling
• Tube Fitting Material: 316 Stainless Steel
• Fitting Connection Type: Press x Press
• Tube Size: 1/2" x 1/2"
• Pipe Size (Fittings): 1/2" x 1/2"
• Max. Pressure: 200 psi
• Temp. Range: 0 Degrees to 250 Degrees F
• Standards: ASTM A53, IAPMO PS-117, ICC LC-1002, UL 213, FM Class 1920
• Compliance: ASME B31, UPC, UMC, IPC, IMC, FM, UL
• Item [Specifications]: Coupling with Stop
• Pipe Size [Specifications]: 1/2 in x 1/2 in
• Tube Size [Specifications]: 1/2 in x 1/2 in
• Application [Specifications]: Potable Water
• For Tube OD [Specifications]: 1/2 in
• Fitting Shape [Specifications]: Connector
• Material Grade [Specifications]: 316
• Overall Length [Specifications]: 2 23/32 in
• Stop and Shape [Specifications]: Rolled Center Stop Straight Connector
• Connection Type [Specifications]: Press-Fit x Press-Fit
• O-Ring Material [Specifications]: EPDM
• Fitting Material [Specifications]: Stainless Steel
• Fitting Pipe Size [Specifications]: 1/2 in
• End Connection Type [Specifications]: Press
• Includes Center Stop [Specifications]: Rolled Center Stop
• Fitting Body Material [Specifications]: 316 Stainless Steel
• Specific Fitting Shape [Specifications]: Straight Connector
• Fitting Side A Pipe Size [Specifications]: 1/2 in
• Fitting Side B Pipe Size [Specifications]: 1/2 in
• Pipe Size - Pipe Fitting [Specifications]: 1/2 in x 1/2 in
• Maximum Operating Pressure [Specifications]: 200 psi
• Specific Pipe Fitting Shape [Specifications]: Coupling
• Pipe Fitting Connection Type [Specifications]: Press x Press
• Maximum Operating Temperature [Specifications]: 250 Degrees F
• Minimum Operating Temperature [Specifications]: 0 Degrees F
• Fitting Side A Connection Type [Specifications]: Press-Fit
• Fitting Side B Connection Type [Specifications]: Press-Fit
• Fitting Side B Tube Outer Diameter [Specifications]: 1/2 in
• Size: 1/2" x 1/2"
• Material: Stainless Steel
• Connection Type: Press
• Components: EPDM sealing elements
• Feature: Smart Connect feature
• Brand: VIEGA MEGAPRESS
• Type: Press Tube Fittings
• UPC: 691514902852
