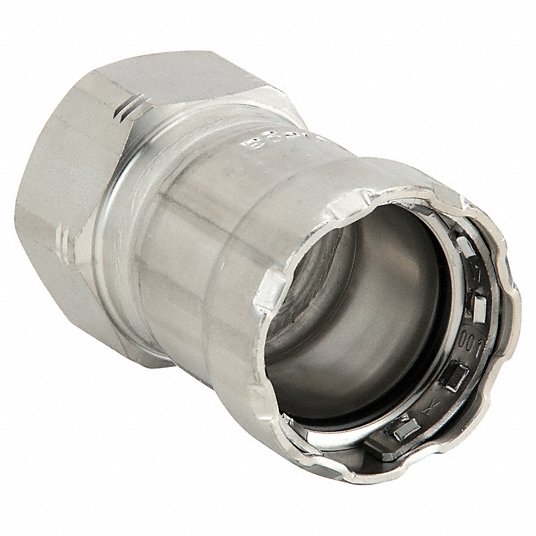

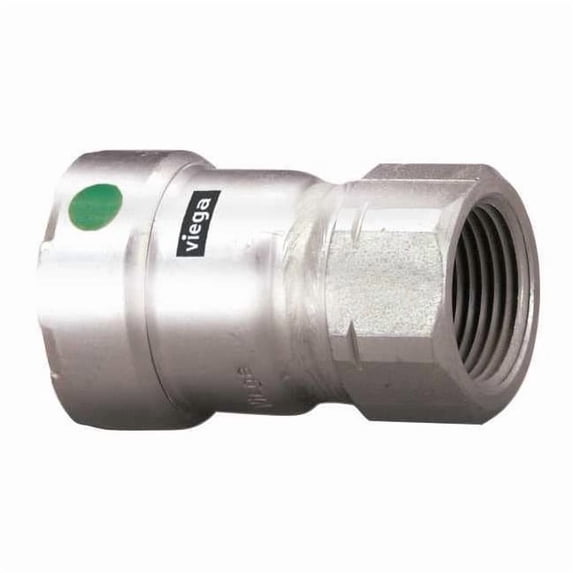

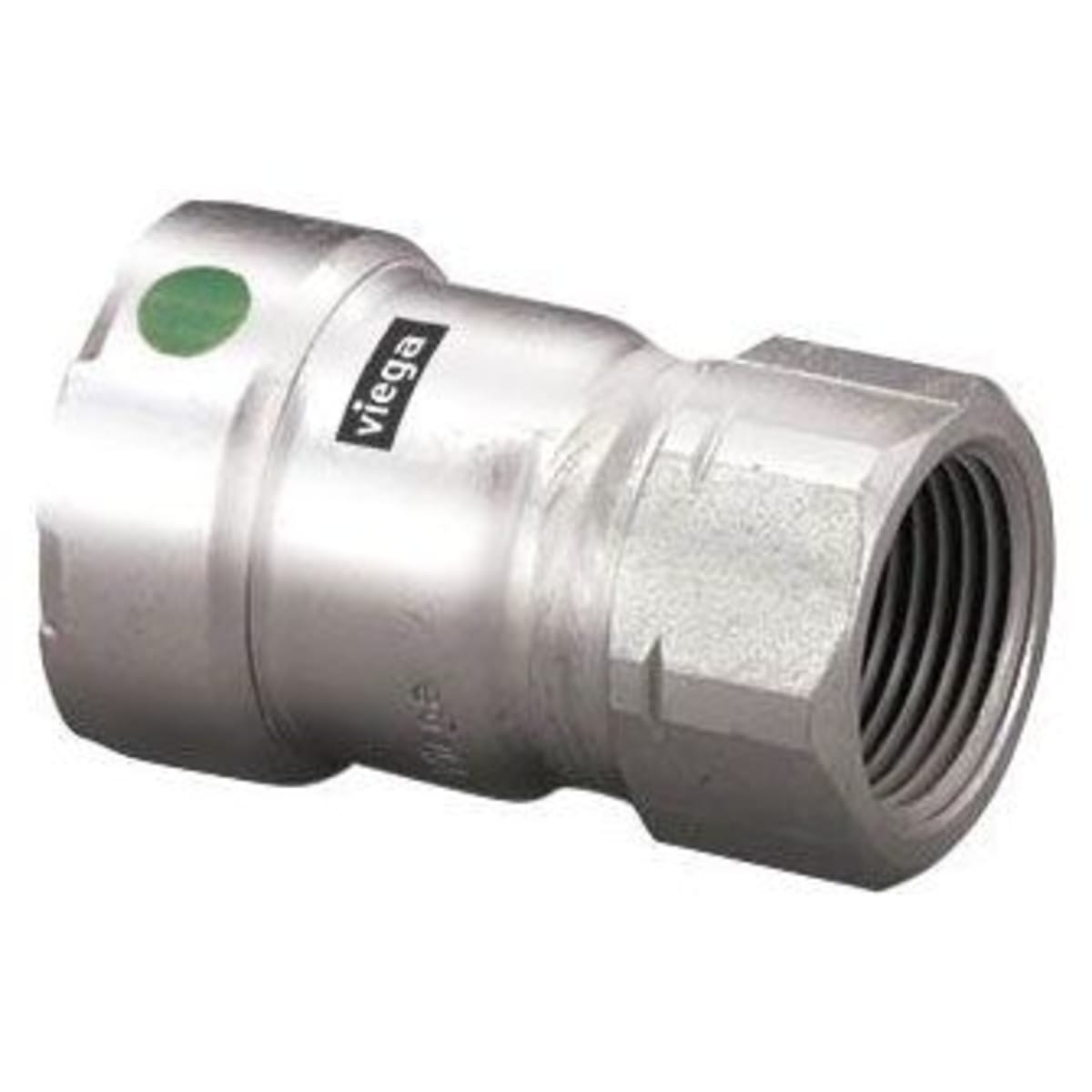

Viega 90280 MegaPress Adapter 2 inches x 2 inches

Product Description

The Viega 90280 MegaPress adapter, designed for use with Schedule 10 to Schedule 40 stainless steel pipe, forms a complete press system suitable for commercial and industrial applications. It features a versatile EPDM sealing element for a reliable, leak-free connection. This system withstands harsh environments while transporting various fluids and gases.

• Patented Viega Smart Connect makes secure connections in less than 7 seconds.
• Minimizes system downtime by allowing for wet connections.
• No welding, grinding, or heavy equipment is needed.

Product Highlights

The Viega MegaPress system is fast, easy to use, and compatible with existing press tools. It eliminates threading and welding, making it ideal for various applications.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 90280
• Country of Origin: Germany

Technical Specifications

• MPN: 90280
• Brand: VIEGA
• Size: 2"
• Type: Adapter (Female)
• Material: 316 stainless steel
• Connection_Type: Press
• Item [Specifications]: Adapter
• Pipe Size [Specifications]: 2 in x 2 in
• Standards [Specifications]: ASTM A312, ASTM A403, CRN 13492.5 A/B, IAPMO, IAPMO PS 117, ICC, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9
• Tube Size [Specifications]: 2 in x 2 in
• Compliance [Specifications]: CRN 13492.5 A/B, IAPMO PS117, ICC-LC1002, NSF 372, NSF/ANSI 61
• Application [Specifications]: Potable Water
• Temp. Range [Specifications]: 0 Degrees to 250 Degrees F
• Fitting Shape [Specifications]: Adapter
• Max. Pressure [Specifications]: 200 psi
• Material Grade [Specifications]: 316
• Overall Length [Specifications]: 3 7/16 in
• Stop and Shape [Specifications]: Straight Adapter
• Connection Type [Specifications]: Press-Fit x FNPT
• O-Ring Material [Specifications]: EPDM
• Fitting Material [Specifications]: Stainless Steel
• Fitting Pipe Size [Specifications]: 2 in
• End Connection Type [Specifications]: Press, Threaded
• Pipe Size (Fittings) [Specifications]: 2" x 2"
• Fitting Body Material [Specifications]: 316 Stainless Steel
• Tube Fitting Material [Specifications]: 316 Stainless Steel
• Specific Fitting Shape [Specifications]: Straight Adapter
• Fitting Connection Type [Specifications]: Press x Female Pipe Thread
• Fitting Side A Pipe Size [Specifications]: 2 in
• Fitting Side B Pipe Size [Specifications]: 2 in
• Pipe Size - Pipe Fitting [Specifications]: 2 in x 2 in
• Maximum Operating Pressure [Specifications]: 200 psi
• Specific Pipe Fitting Shape [Specifications]: Adapter
• Pipe Fitting Connection Type [Specifications]: Press x Female Pipe Thread
• Maximum Operating Temperature [Specifications]: 250 Degrees F
• Minimum Operating Temperature [Specifications]: 0 Degrees F
• Fitting Side A Connection Type [Specifications]: Press-Fit
• Fitting Side B Connection Type [Specifications]: FNPT
• Country of Origin (subject to change) [Specifications]: Germany
• Fitting/Connector Type: Adapter
• Nominal Size: 2 in
• End Style: Press x FNPT
• Seal Material: EPDM
• Manufacturer Name: Viega
• Temperature Rating: 0 to 250 deg F
• Includes: EPDM Sealing Element (Green Dot)
• Application: Commercial and Industrial
• Domestic/Import: Import
• Country of Origin: DE
• Standards and Approvals: ASTM A312/A403 | CRN 13492.5 A/B | IAPMO to IAPMO PS117 | ICC-LC1002 | TSSA/ASME B31.1/B31.3/B31.9 | NSF/ANSI 61/372
• Size 1: 2
• Size 2: 2
• L: 3.42 in
• A: 0.76 in
• WS: 2.75 in
• Pipe fitting & coupler type: Adapter
• Sub-brand: Mega Press Fittings
• Fitting Shape: Straight
• Fitting Side 1 Connection Type: Press-fit
• Fitting Side A Pipe Size: 2 in
• Fitting Side B Connection Type: FNPT
• Fitting Side B Pipe Size: 2 in
• Overall Length: 3-7/16 in
• For Media Type: Potable Water
• UNSPSC: 40142612
