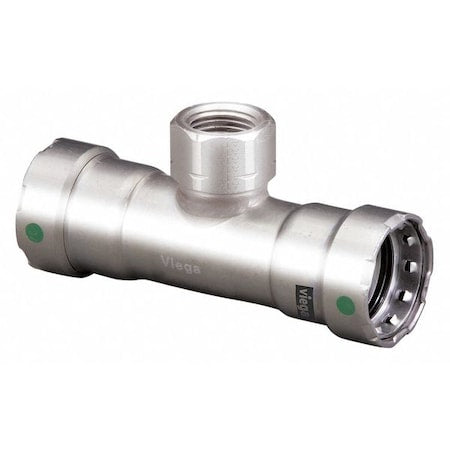

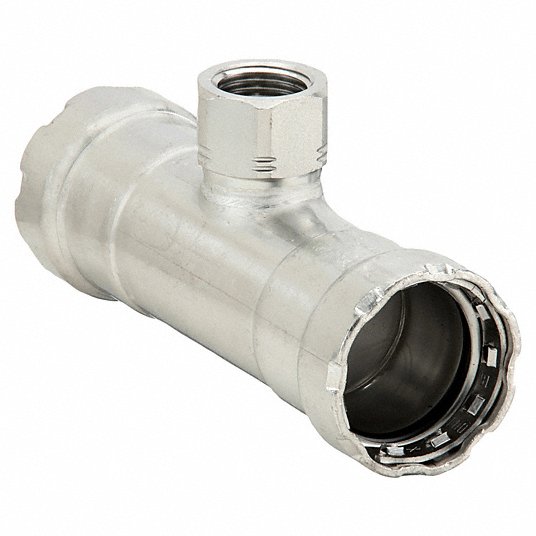

Viega 90190 MegaPress Tee 1 inches x 1 inches x 1/2 inches

Product Description

The VIEGA 90190 MegaPress Tee is a 1" x 1" x 1/2" tee fitting made from 316 stainless steel. Designed for use with Schedule 10 to Schedule 40 stainless steel pipe, it forms a complete press system suitable for commercial and industrial applications. It features a versatile EPDM sealing element for a reliable, leak-free connection.

• Smart Connect technology helps identify unpressed connections.
• Constructed from 316 stainless steel for durability.
• EPDM sealing element ensures a reliable, leak-free connection.

Product Highlights

This MegaPress tee is ideal for potable water, ammonia, low pressure steam, and other essential fluids or gases.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 90190
• Country of Origin: Germany

Technical Specifications

• MPN: 90190
• Brand: VIEGA
• Fitting Shape: Tee
• Pipe Size: 1 in x 1 in x 1/2 in
• Standards: ASTM A312, ASTM A403, CRN 13492.5 A/B, IAPMO PS 117, IAPMO Uniform Plumbing Code (UPC), ICC International Plumbing Code (IPC), ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, TSSA/ASME B31.1: Power Piping, TSSA/ASME B31.3, TSSA/ASME B31.9
• Tube Size: 1 in x 1 in x 1/2 in
• Compliance: CRN 13492.5 A/B, IAPMO PS117, ICC-LC1002, NSF 372, NSF/ANSI 61
• Application: Potable Water
• Temperature Range: 0 Degrees to 250 Degrees F
• Maximum Operating Pressure: 200 psi
• Material Grade: 316
• Overall Length: 5 5/32 in
• Stop and Shape: Adapter Tee
• Connection Type: Press-Fit x Press-Fit x FPT
• O-Ring Material: EPDM
• Fitting Material: Stainless Steel
• Fitting Pipe Size: 1/2 in, 1 in
• End Connection Type: Press, Threaded
• Fitting Body Material: 316 Stainless Steel
• Tube Fitting Material: 316 Stainless Steel
• Specific Fitting Shape: Adapter Tee
• Fitting Connection Type: Press x Press x Female Pipe Thread
• Fitting Side A Pipe Size: 1 in
• Fitting Side B Pipe Size: 1 in
• Fitting Side C Pipe Size: 1/2 in
• Specific Pipe Fitting Shape: Tee
• Pipe Fitting Connection Type: Press x Press x Female Pipe Thread
• Maximum Operating Temperature: 250 Degrees F
• Minimum Operating Temperature: 0 Degrees F
• Fitting Side A Connection Type: Press-Fit
• Fitting Side B Connection Type: Press-fit
• Fitting Side C Connection Type: FNPT
• Country of Origin: Germany
• Nominal Size: 1 x 1 x 1/2 In
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 deg F
• Fitting Side 1 Connection Type: Press-fit
• For Media Type: Potable Water
• Size: 1" x 1" x 1/2"
• Material: Stainless Steel
