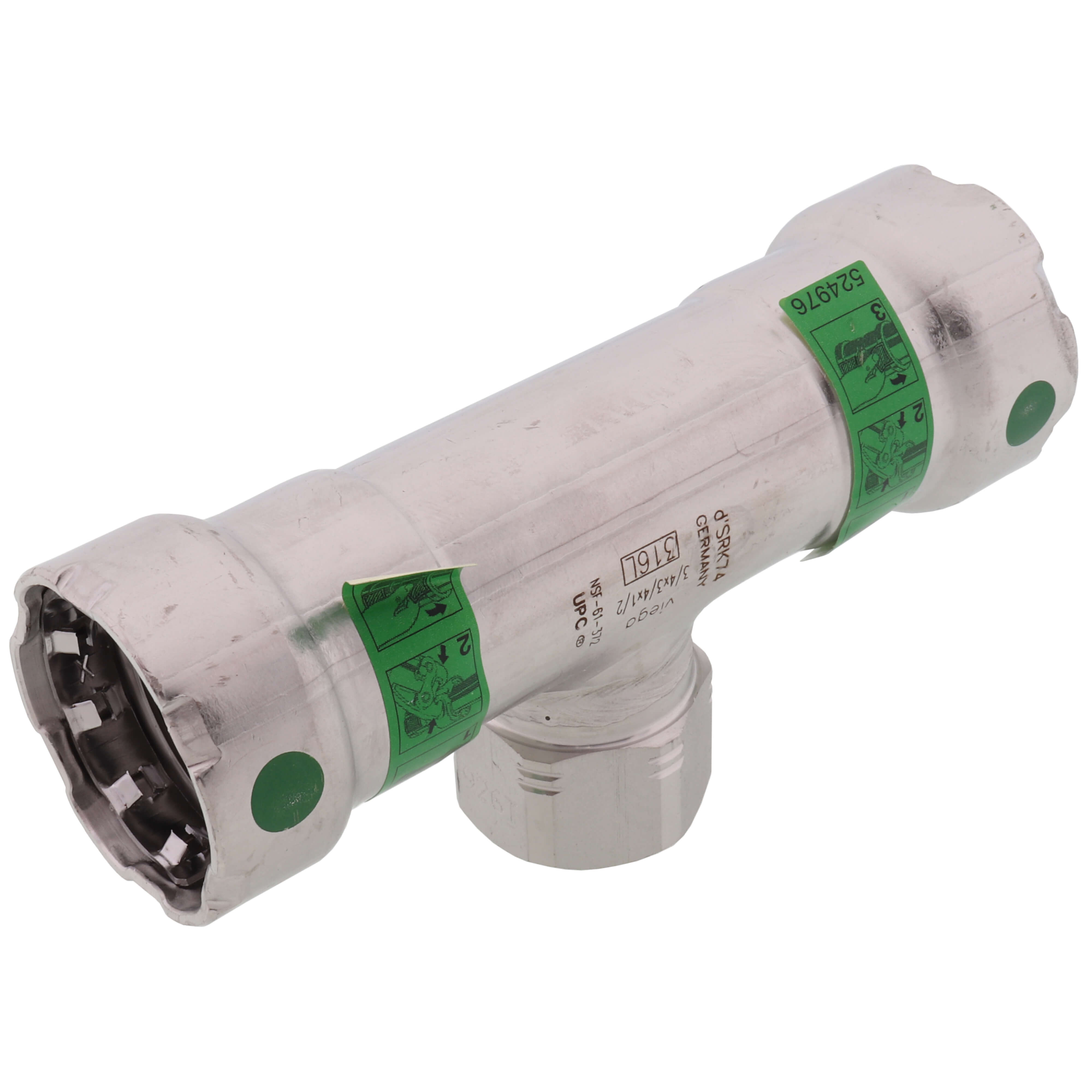

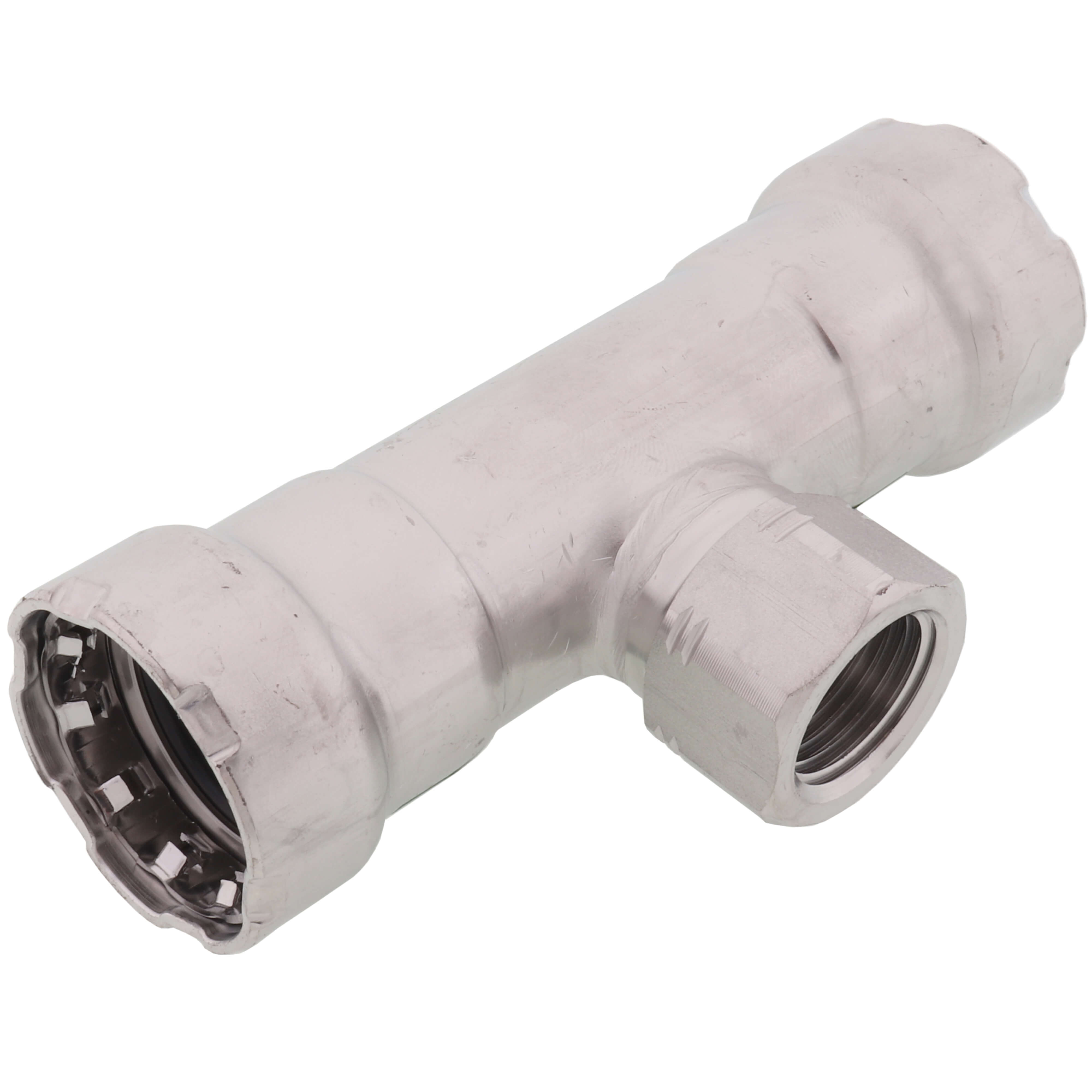

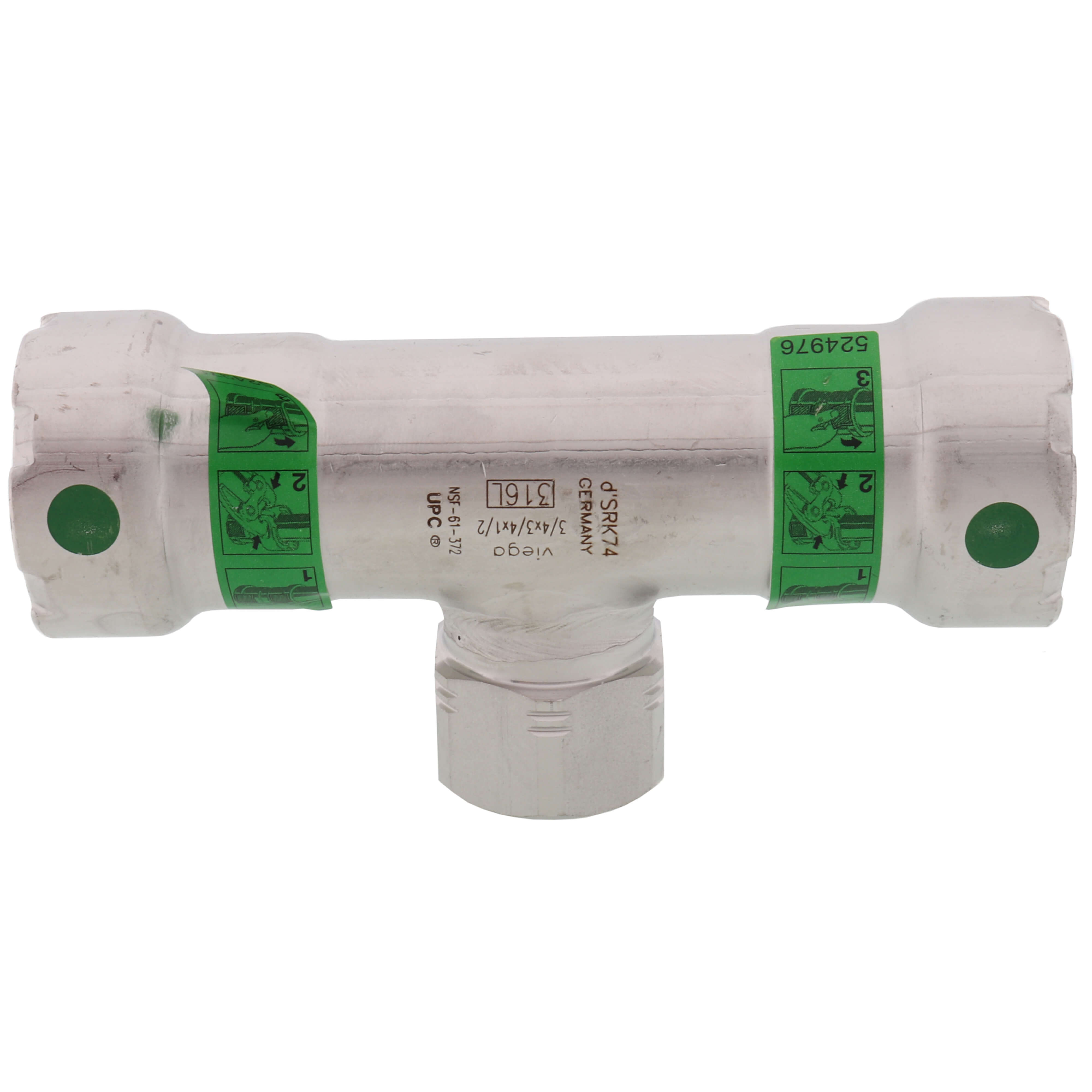

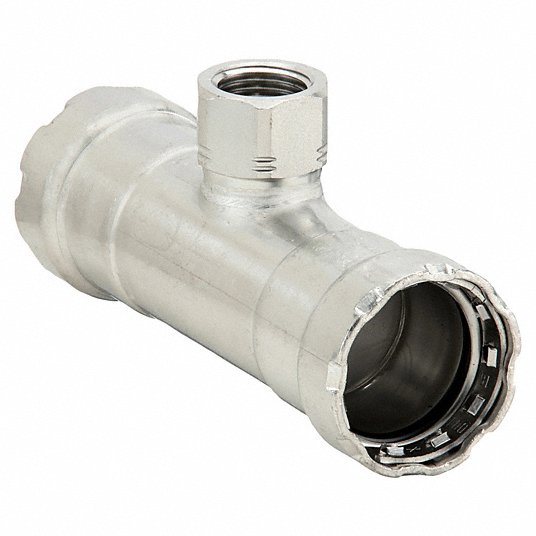

Viega 90180 MegaPress Tee 3/4 inches x 3/4 inches x 1/2 inches

Product Description

The VIEGA 90180 MegaPress Tee is a 3/4" x 3/4" x 1/2" tee fitting made of 316 stainless steel. It utilizes MegaPress technology for press connection and female pipe thread. It is suitable for potable water applications and meets NSF standards for safe use in water supply systems.

• MegaPress technology
• 316 stainless steel construction
• Smart Connect technology

Product Highlights

This MegaPress tee is ideal for connecting stainless steel pipes, changing direction, adding outlets, reducing outlets, or capping piping systems.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 90180
• Country of Origin: Germany

Technical Specifications

• Material: 316 stainless steel
• P1: 3/4
• P2: 3/4
• FPT: 1/2
• Size: 3/4" x 3/4" x 1/2"
• Connection Type: Press x FNPT
• Item [Specifications]: Tee
• Pipe Size [Specifications]: 3/4 in x 3/4 in x 1/2 in
• Standards [Specifications]: ASTM A312, ASTM A403, CRN 13492.5 A/B, IAPMO PS 117, IAPMO Uniform Plumbing Code (UPC), ICC International Plumbing Code (IPC), ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, TSSA/ASME B31.1: Power Piping, TSSA/ASME B31.3, TSSA/ASME B31.9
• Tube Size [Specifications]: 3/4 in x 3/4 in x 1/2 in
• Compliance [Specifications]: CRN 13492.5 A/B, IAPMO PS117, ICC-LC1002, NSF 372, NSF/ANSI 61
• Application [Specifications]: Potable Water
• Temp. Range [Specifications]: 0 Degrees to 250 Degrees F
• Fitting Shape [Specifications]: Tee
• Max. Pressure [Specifications]: 200 psi
• Material Grade [Specifications]: 316
• Overall Length [Specifications]: 4 17/32 in
• Stop and Shape [Specifications]: Adapter Tee
• O-Ring Material [Specifications]: EPDM
• Fitting Material [Specifications]: Stainless Steel
• Fitting Pipe Size [Specifications]: 1/2 in, 3/4 in
• End Connection Type [Specifications]: Press, Threaded
• Pipe Size (Fittings) [Specifications]: 3/4" x 3/4" x 1/2"
• Fitting Body Material [Specifications]: 316 Stainless Steel
• Tube Fitting Material [Specifications]: 316 Stainless Steel
• Specific Fitting Shape [Specifications]: Adapter Tee
• Fitting Connection Type [Specifications]: Press x Press x Female Pipe Thread
• Fitting Side A Pipe Size [Specifications]: 3/4 in
• Fitting Side B Pipe Size [Specifications]: 3/4 in
• Fitting Side C Pipe Size [Specifications]: 1/2 in
• Pipe Size - Pipe Fitting [Specifications]: 3/4 in x 3/4 in x 1/2 in
• Maximum Operating Pressure [Specifications]: 200 psi
• Specific Pipe Fitting Shape [Specifications]: Tee
• Pipe Fitting Connection Type [Specifications]: Press x Press x Female Pipe Thread
• Maximum Operating Temperature [Specifications]: 250 Degrees F
• Minimum Operating Temperature [Specifications]: 0 Degrees F
• Fitting Side A Connection Type [Specifications]: Press-Fit
• Fitting Side B Connection Type [Specifications]: Press-Fit
• Fitting Side C Connection Type [Specifications]: FPT
• Country of Origin (subject to change) [Specifications]: Germany
• Size 1: 3/4
• Size 2: 3/4
• Size 3: 1/2
• L: 2.26 in
• L1: 1.55 in
• A: 1.11 in
• A1: 1.02 in
• Components: EPDM sealing elements
• Feature: Smart Connect feature
• Item Name: Reducing Tee
• Sub Brand: MegaPress
• Fitting Size: 3/4 x 3/4 x 1/2 in
• Fitting Type: Tee
• Nominal Size A: 3/4 in
• Nominal Size B: 3/4 in
• Nominal Size C: 1/2 in
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 deg F
• For Use With: SCH 5 to SCH 40 Stainless Steel Pipes
• Applications: Commercial and Industrial
• Standards/Approvals: ASTM A312/A403, CRN 13492.5 A/B, IAPMO to IAPMO PS-117, ICC-LC1002, TSSA/ASME B31.1/B31.3/B31.9, NSF/ANSI 61/372
• Mfr. Model: 90180
• Fitting Shape: Tee (Run x Run x Branch)
• Fitting Side 1 Connection Type: Press-fit
• Fitting Side A Pipe Size: 3/4 in
• Fitting Side B Connection Type: Press-fit
• Fitting Side B Pipe Size: 3/4 in
• Fitting Side C Connection Type: FNPT
• Fitting Side C Pipe Size: 1/2 in
• For Media Type: Potable Water
• Maximum Operating Pressure: 200 psi
• UNSPSC: 40142605
