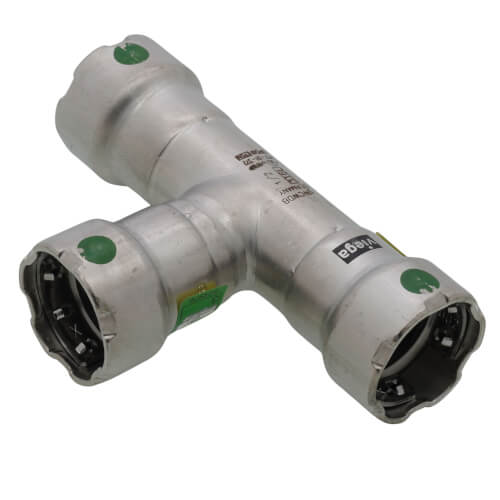

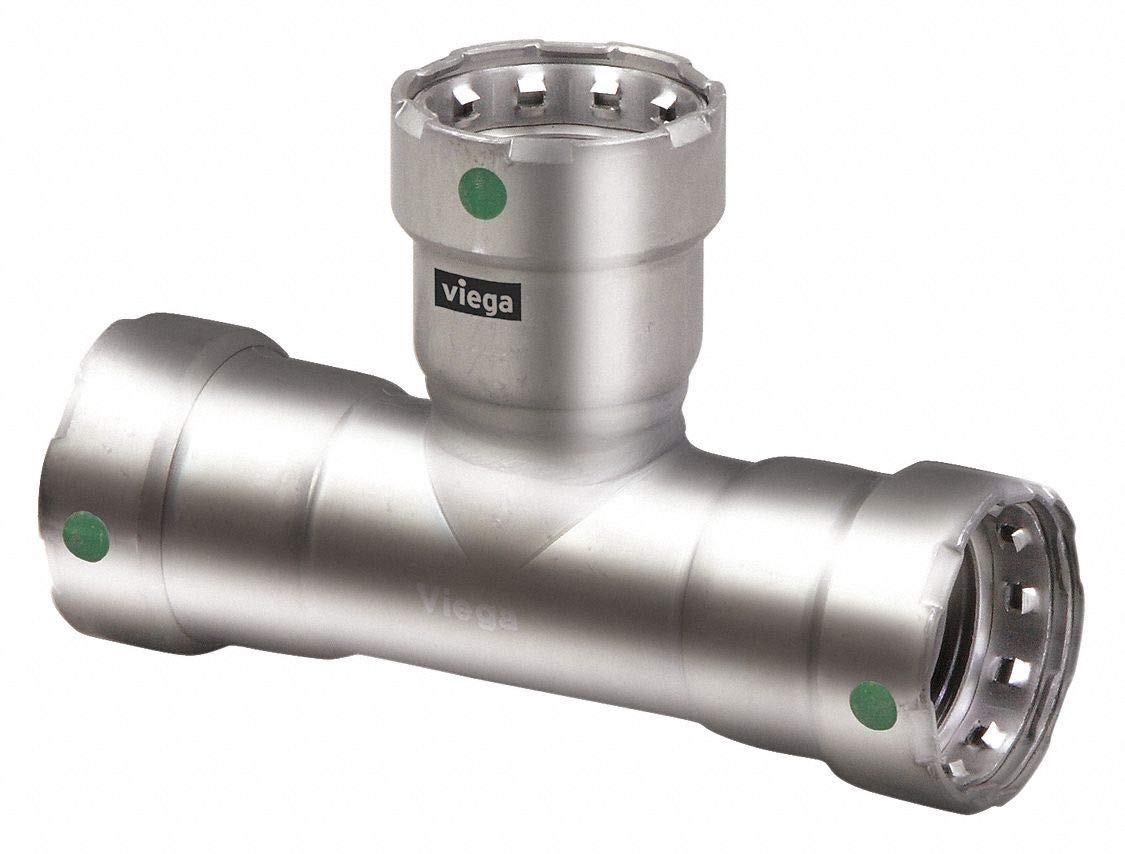

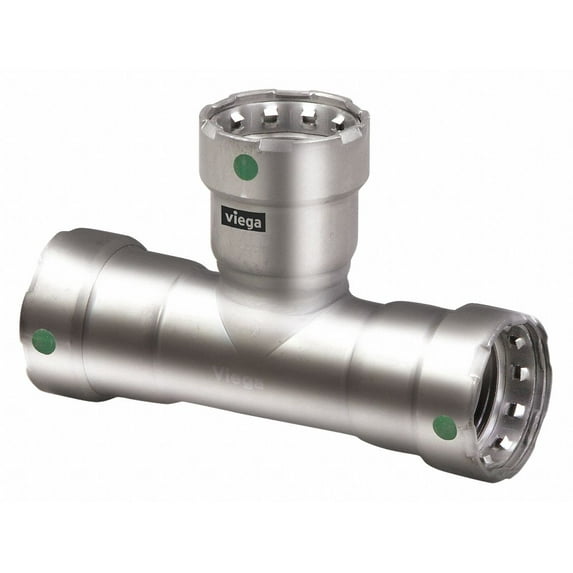

Viega 90135 MegaPress Tee 1 inches x 1 inches x 1/2 inches

Product Description

The VIEGA 90135 MegaPress tee is a 316 stainless steel fitting designed for press connections. This tee is suitable for potable water applications and eliminates the need for welding or threading. It features Smart Connect technology for secure connections and includes an EPDM sealing element. The MegaPress system is ideal for commercial and industrial use.

• Smart Connect technology
• 316 stainless steel construction
• Press connection type

Product Highlights

The VIEGA MegaPress tee provides a reliable, leak-free connection for various essential fluids and gases in harsh environments.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 90135
• Country of Origin: DE

Technical Specifications

• Size: 1" x 1" x 1/2"
• Material: Stainless Steel
• Connection Type: Press|Press|Press
• Item [Specifications]: Tee
• Pipe Size [Specifications]: 1 in x 1 in x 1/2 in
• Standards [Specifications]: ASTM A312, ASTM A403, CRN 13492.5 A/B, IAPMO PS 117, IAPMO Uniform Plumbing Code (UPC), ICC International Plumbing Code (IPC), ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, TSSA/ASME B31.1: Power Piping, TSSA/ASME B31.3, TSSA/ASME B31.9
• Tube Size [Specifications]: 1 in x 1 in x 1/2 in
• Compliance [Specifications]: CRN 13492.5 A/B, IAPMO PS117, ICC-LC1002, NSF 372, NSF/ANSI 61
• Application [Specifications]: Potable Water
• Temp. Range [Specifications]: 0 Degrees to 250 Degrees F
• Fitting Shape [Specifications]: Tee
• Max. Pressure [Specifications]: 200 psi
• Material Grade [Specifications]: 316
• Overall Length [Specifications]: 5 5/32 in
• Stop and Shape [Specifications]: Reducing Tee
• Connection Type [Specifications]: Press-Fit x Press-Fit x Press-Fit
• O-Ring Material [Specifications]: EPDM
• Fitting Material [Specifications]: Stainless Steel
• Fitting Pipe Size [Specifications]: 1/2 in, 1 in
• End Connection Type [Specifications]: Press
• Fitting Body Material [Specifications]: 316 Stainless Steel
• Tube Fitting Material [Specifications]: 316 Stainless Steel
• Specific Fitting Shape [Specifications]: Reducing Tee
• Fitting Connection Type [Specifications]: Press x Press x Press
• Fitting Side A Pipe Size [Specifications]: 1 in
• Fitting Side B Pipe Size [Specifications]: 1 in
• Fitting Side C Pipe Size [Specifications]: 1/2 in
• Pipe Size - Pipe Fitting [Specifications]: 1" x 1" x 1/2"
• Maximum Operating Pressure [Specifications]: 200 psi
• Specific Pipe Fitting Shape [Specifications]: Tee
• Pipe Fitting Connection Type [Specifications]: Press x Press x Press
• Maximum Operating Temperature [Specifications]: 250 Degrees F
• Minimum Operating Temperature [Specifications]: 0 Degrees F
• Fitting Side A Connection Type [Specifications]: Press-Fit
• Fitting Side B Connection Type [Specifications]: Press-Fit
• Fitting Side C Connection Type [Specifications]: Press-Fit
• Country of Origin (subject to change) [Specifications]: Germany
• Size 1: 1
• Size 2: 1
• Size 3: 1/2
• L: 2.57 in
• L1: 2.26 in
• A: 1.23 in
• A1: 1.19 in
• Brand: Viega
• Fitting/Connector Type: Tee
• Nominal Size: 1 x 1 x 1/2 in
• End Style: Press
• Seal Material: EPDM
• Manufacturer Name: Viega
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 deg F
• Includes: EPDM Sealing Element (Green Dot)
• Application: Commercial and Industrial
• Domestic/Import: Import
• Standards and Approvals: ASTM A312/A403 | CRN 13492.5 A/B | IAPMO to IAPMO PS117 | ICC-LC1002 | TSSA/ASME B31.1/B31.3/B31.9 | NSF/ANSI 61/372
• Type: Pipes, Valves & Fittings > Tube Fittings > Press-Fit Tube Fitting
• Features: Crimp Tee Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Side C Connection Type Press-Fit, Fitting Material Stainless Steel, Fitting Side A Pipe Size 1 in, Fitting Side B Pipe Size 1 in, Fitting Side C Pipe Size 1/2 in, Material Grade 316, O-Ring Material EPDM, Specific Fitting Shape Reducing Tee, Overall Length 5 5/32 in, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F
• Item Diameter: N/A
• Item Length: 5.200
• Item Height: 1.800
• Item Width: 3.100
• Country of Origin: DE
• California Prop 65 Warning: N
• Compatible Brand: VIEGA
• Item Weight: 0.8500
• Number of Items in Set: N/A
• MPN: 90135
• Color: Multi
• Length: 5.200
• Width: 3.100
• Depth: 3.100
• UPC: 691514901350
• Fitting Type: Tee
• Nominal Size A: 1 in
• Nominal Size B: 1 in
• Fitting Material: Stainless Steel
• Nominal Size C: 1/2 in
• Material Construction: Stainless Steel
• For Use With: SCH 5 to SCH 40 Stainless Steel Pipes
• Applications: Process Water, Low Pressure Steam, Industrial Gas, Compress Air, Lube Oil, Caustic Solution, Acid Solution and Vacuum
