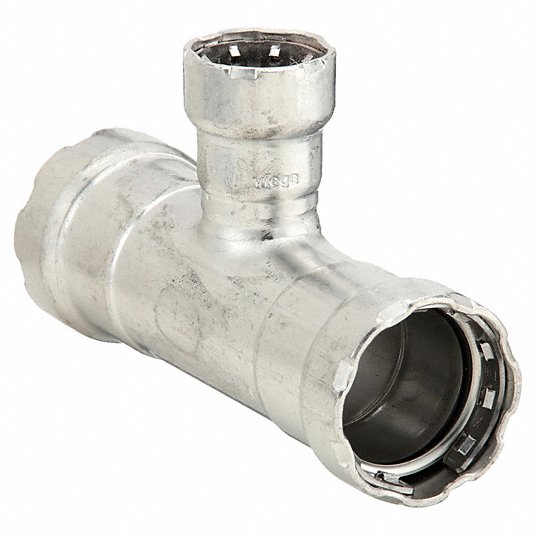

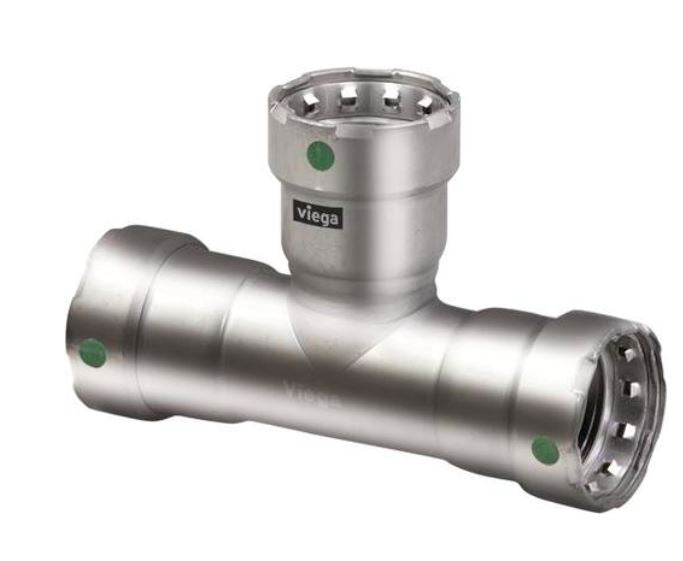

Viega 90130 MegaPress Tee 3/4 inches x 3/4 inches x 1/2 inches

Product Description

The VIEGA 90130 MegaPress Tee is a 3/4" x 3/4" x 1/2" fitting made from 316 stainless steel. Designed for use with Schedule 10 to Schedule 40 stainless steel pipe, it forms a complete press system suitable for commercial and industrial applications. It utilizes a versatile EPDM sealing element to provide a reliable, leak-free connection.

• Smart Connect technology for secure connections
• Constructed from durable 316 stainless steel
• EPDM sealing element ensures a reliable, leak-free connection

Product Highlights

The Viega MegaPress system minimizes downtime, is easy to use, and eliminates the need for welding.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 90130
• Country of Origin: Germany

Technical Specifications

• Size: 3/4" x 3/4" x 1/2"
• Material: Stainless Steel
• Connection Type: Press
• Item: Tee
• Pipe Size: 3/4 in x 3/4 in x 1/2 in
• Standards: ASTM A312, ASTM A403, CRN 13492.5 A/B, IAPMO PS 117, IAPMO Uniform Plumbing Code (UPC), ICC International Plumbing Code (IPC), ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, TSSA/ASME B31.1: Power Piping, TSSA/ASME B31.3, TSSA/ASME B31.9
• Tube Size: 3/4 in x 3/4 in x 1/2 in
• Compliance: CRN 13492.5 A/B, IAPMO PS117, ICC-LC1002, NSF 372, NSF/ANSI 61
• Application: Potable Water
• Temp. Range: 0 Degrees to 250 Degrees F
• Fitting Shape: Tee
• Max. Pressure: 200 psi
• Material Grade: 316
• Overall Length: 4 17/32 in
• Stop and Shape: Reducing Tee
• End Connection Type: Press
• O-Ring Material: EPDM
• Fitting Material: Stainless Steel
• Fitting Pipe Size: 1/2 in, 3/4 in
• Fitting Body Material: 316 Stainless Steel
• Tube Fitting Material: 316 Stainless Steel
• Specific Fitting Shape: Reducing Tee
• Fitting Connection Type: Press x Press x Press
• Fitting Side A Pipe Size: 3/4 in
• Fitting Side B Pipe Size: 3/4 in
• Fitting Side C Pipe Size: 1/2 in
• Pipe Size - Pipe Fitting: 3/4 in x 3/4 in x 1/2 in
• Maximum Operating Pressure: 200 psi
• Specific Pipe Fitting Shape: Tee
• Pipe Fitting Connection Type: Press x Press x Press
• Maximum Operating Temperature: 250 Degrees F
• Minimum Operating Temperature: 0 Degrees F
• Fitting Side A Connection Type: Press-Fit
• Fitting Side B Connection Type: Press-Fit
• Fitting Side C Connection Type: Press-Fit
• Country of Origin (subject to change): Germany
• Domestic/Import: Import
• End Style: Press
• Fitting/Connector Type: Tee
• Nominal Size: 3/4 x 3/4 x 1/2 In
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 deg F
• Brand: VIEGA
• Sub-brand: Mega Press
• Fitting Side 1 Connection Type: Press-fit
• For Media Type: Potable Water
• UNSPSC: 40142605
• MPN: 90130
