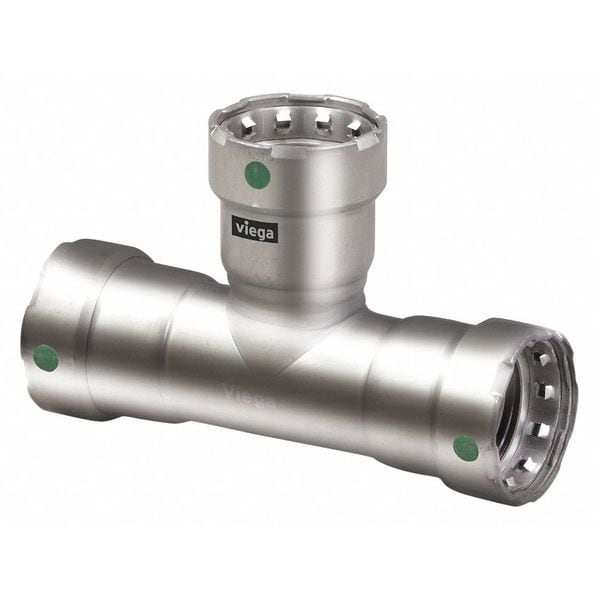

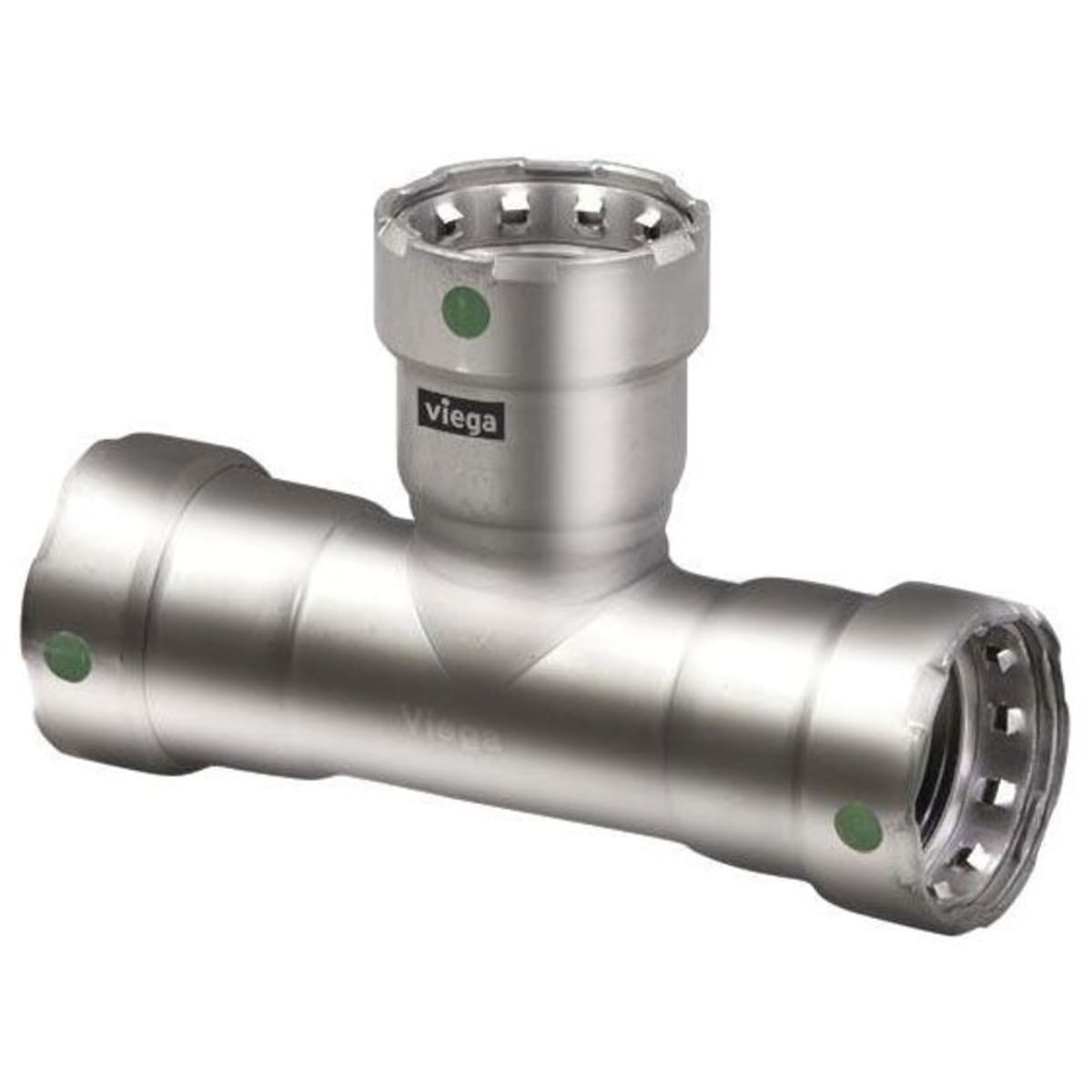

Viega 90125 MegaPress Tee 2 inches x 2 inches x 2 inches

Product Description

The VIEGA 90125 MegaPress Tee is designed for use with Schedule 10 to Schedule 40 stainless steel pipe, making it ideal for commercial and industrial applications. It features a versatile EPDM sealing element to provide a reliable, leak-free connection. This MegaPress system can withstand harsh environments while transporting various fluids and gases.

• Smart Connect technology
• 316 stainless steel construction
• Press connection

Product Highlights

The Viega MegaPress Tee provides secure connections in less than 7 seconds, minimizing downtime and eliminating the need for welding.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 90125
• Country of Origin: Germany

Technical Specifications

• Size: 2"
• Type: Tee
• Material: 316 stainless steel
• Connection Type: Press
• Size [Features]: 2" x 2"
• Material [Features]: Stainless Steel
• Connection Type [Features]: Press
• Item [Specifications]: Tee
• Pipe Size [Specifications]: 2 in x 2 in x 2 in
• Standards [Specifications]: ASTM A312, ASTM A403, CRN 13492.5 A/B, IAPMO PS 117, IAPMO Uniform Plumbing Code (UPC), ICC International Plumbing Code (IPC), ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, TSSA/ASME B31.1: Power Piping, TSSA/ASME B31.3, TSSA/ASME B31.9
• Tube Size [Specifications]: 2 in x 2 in x 2 in
• Compliance [Specifications]: CRN 13492.5 A/B, IAPMO PS117, ICC-LC1002, NSF 372, NSF/ANSI 61
• Application [Specifications]: Potable Water
• Temp. Range [Specifications]: 0 Degrees to 250 Degrees F
• Fitting Shape [Specifications]: Tee
• Max. Pressure [Specifications]: 200 psi
• Material Grade [Specifications]: 316
• Overall Length [Specifications]: 7 9/16 in
• Stop and Shape [Specifications]: Tee
• Connection Type [Specifications]: Press-Fit x Press-Fit x Press-Fit
• O-Ring Material [Specifications]: EPDM
• Fitting Material [Specifications]: Stainless Steel
• Fitting Pipe Size [Specifications]: 2 in
• End Connection Type [Specifications]: Press
• Pipe Size (Fittings) [Specifications]: 2" x 2" x 2"
• Fitting Body Material [Specifications]: 316 Stainless Steel
• Tube Fitting Material [Specifications]: 316 Stainless Steel
• Specific Fitting Shape [Specifications]: Tee
• Fitting Connection Type [Specifications]: Press x Press x Press
• Fitting Side A Pipe Size [Specifications]: 2 in
• Fitting Side B Pipe Size [Specifications]: 2 in
• Fitting Side C Pipe Size [Specifications]: 2 in
• Pipe Size - Pipe Fitting [Specifications]: 2 in x 2 in x 2 in
• Maximum Operating Pressure [Specifications]: 200 psi
• Specific Pipe Fitting Shape [Specifications]: Tee
• Pipe Fitting Connection Type [Specifications]: Press x Press x Press
• Maximum Operating Temperature [Specifications]: 250 Degrees F
• Minimum Operating Temperature [Specifications]: 0 Degrees F
• Fitting Side A Connection Type [Specifications]: Press-Fit
• Fitting Side B Connection Type [Specifications]: Press-Fit
• Fitting Side C Connection Type [Specifications]: Press-Fit
• Country of Origin (subject to change) [Specifications]: Germany
• Components: EPDM sealing elements
• Brand: MegaPress
• Fitting/Connector Type: Tee
• Nominal Size: 2 in
• End Style: Press
• Seal Material: EPDM
• Manufacturer Name: Viega
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 deg F
• Includes: EPDM Sealing Element (Green Dot)
• Application: Commercial and Industrial
• Domestic/Import: Import
• Country of Origin: DE
• Standards and Approvals: ASTM A312/A403 | CRN 13492.5 A/B | IAPMO to IAPMO PS117 | ICC-LC1002 | TSSA/ASME B31.1/B31.3/B31.9 | NSF/ANSI 61/372
• Sub-brand: Mega Press
• Fitting Shape: Tee (Run x Run x Branch)
• For Media Type: Potable Water
• UNSPSC: 40142605
• Operating Temperature - Minimum: 0 Degrees F
• Operating Pressure - Maximum: 200 psi
• Operating Temperature - Maximum: 250 Degrees F
• Fitting Side 3 Connection Type: Press-fit
• Fitting Side 2 Connection Type: Press-fit
• Viega Part#: 90125
• Description: 2 MEGAPRESS 316 EPDM TEE
