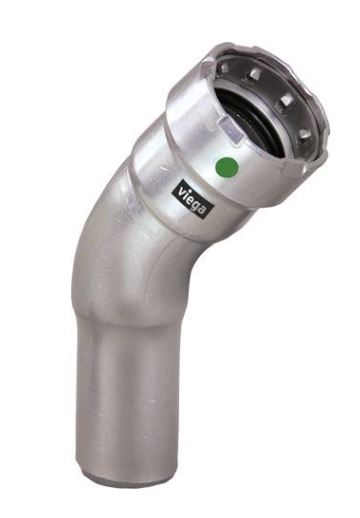

Viega 90100 MegaPress 45 street elbow 2 inches x 2 inches

Product Description

The Viega 90100 MegaPress 45 street elbow is a 2" x 2" fitting made from 316 stainless steel. Designed for use with Schedule 10 to Schedule 40 stainless steel pipe, it forms a complete press system suitable for commercial and industrial applications. It features a versatile EPDM sealing element to provide a reliable, leak-free connection.

• Smart Connect technology
• EPDM sealing element
• Maximum Operating Pressure 200 psi

Product Highlights

The Viega MegaPress system minimizes downtime by allowing for wet connections, eliminating the need for welding, grinding, or heavy equipment.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 90100
• Country of Origin: Germany

Technical Specifications

• Primary Vendor Part Number: 90100
• Size: 2" x 2"
• Material: Stainless Steel
• Connection Type: FTG x Press
• Item: 45 Degree Street Elbow
• Pipe Size: 2 in
• Standards: ASTM A312, ASTM A403, CRN 13492.5 A/B, IAPMO, IAPMO PS 117, ICC, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9
• Tube Size: 2 in x 2 in
• Compliance: CRN 13492.5 A/B, IAPMO PS117, ICC-LC1002, NSF 372, NSF/ANSI 61
• Application: Potable Water
• Temp. Range: 0 Degrees to 250 Degrees F
• Fitting Shape: Elbow
• Max. Pressure: 200 psi
• Material Grade: 316
• Stop and Shape: 45 Degrees Street Elbow Adapter
• O-Ring Material: EPDM
• Copper Tube Size: 2 in
• Fitting Material: Stainless Steel
• Fitting Pipe Size: 2 in
• End Style: Fitting x Press
• Fitting Body Material: 316 Stainless Steel
• Tube Fitting Material: 316 Stainless Steel
• Specific Fitting Shape: 45 Degrees Street Elbow Adapter
• Fitting Connection Type: Press x Street
• Fitting Copper Tube Size: 2 in
• Fitting Side A Pipe Size: 2 in
• Maximum Operating Pressure: 200 psi
• Specific Pipe Fitting Shape: 45 Degrees Street Elbow
• Maximum Operating Temperature: 250 Degrees F
• Minimum Operating Temperature: 0 Degrees F
• Fitting Side A Connection Type: Press-Fit
• Fitting Side B Connection Type: FTG
• Fitting Side B Copper Tube Size: 2 in
• Country of Origin (subject to change): Germany
• Nominal Size: 2 in
• Seal Material: EPDM
• Manufacturer Name: Viega
• Temperature Rating: 0 to 250 deg F
• Includes: EPDM Sealing Element (Green Dot)
• Commercial and Industrial: Commercial and Industrial
• Domestic/Import: Import
• Operating Temperature - Minimum: 0 Degrees F
• Connector Type: Adapter
• Operating Temperature - Maximum: 250 Degrees F
• Operating Pressure - Maximum: 200 psi
• For Media Type: Potable Water
