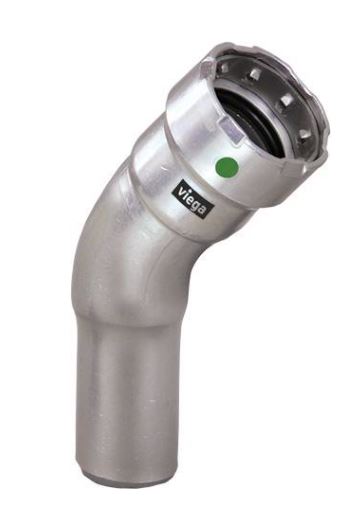

Viega 90080 MegaPress 45 Street Elbow 1/2 inches x 1/2 inches

Product Description

The VIEGA 90080 MegaPress 45 Street Elbow is a fitting designed for potable water applications. Constructed from 316 stainless steel, this elbow features press-fit and FTG connection types. It is suitable for use in industrial, commercial, or residential projects. The elbow allows for secure connections without soldering or welding.

• Smart Connect technology
• 316 stainless steel construction
• Maximum operating pressure of 200 psi

Product Highlights

The VIEGA MegaPress system reduces installation time with secure press connections, eliminating the need for soldering or welding.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 90080
• Country of Origin: Germany

Technical Specifications

• Size: 1/2
• Material: 316 Stainless Steel
• Application: MEGAPRESS
• Seal: EPDM
• Angle: 45
• Fitting Size: 1/2 in
• Item Name: 45 deg Street Elbow
• Sub Brand: MegaPress
• Fitting Type: 45 deg Elbow
• Bend Angle: 45 deg
• Nominal Size A: 1/2 in
• Fitting Material: Stainless Steel
• Nominal Size B: 1/2 in
• Connection Type: Fitting|Press
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 deg F
• Applications: Chilled Water, Compressed Air, Commercial, Industrial, Potable Water and Marine
• Standards/Approvals: ASTM A312/A403, CRN 13492.5 A/B, IAPMO PS-117, ICC-LC1002, TSSA/ASME B31.1/B31.3/B31.9, NSF/ANSI 61/372
• Material Construction: Stainless Steel
• For Use With: SCH 5 to SCH 40 Stainless Steel Pipes
• Pipe Size: 1/2 in
• Tube Size: 1/2 in x 1/2 in
• Compliance: CRN 13492.5 A/B, IAPMO PS117, ICC-LC1002, NSF 372, NSF/ANSI 61
• Fitting Shape: Elbow
• Max. Pressure: 200 psi
• Material Grade: 316
• Stop and Shape: 45 Degrees Street Elbow Adapter
• End Connection Type: Fitting, Press
• Fitting Body Material: 316 Stainless Steel
• Tube Fitting Material: 316 Stainless Steel
• Specific Fitting Shape: 45 Degrees Street Elbow Adapter
• Fitting Connection Type: Press x Street
• Fitting Copper Tube Size: 1/2 in
• Fitting Side A Pipe Size: 1/2 in
• Pipe Size (Fittings): 1/2" x 1/2"
• Specific Pipe Fitting Shape: 45 Degrees Street Elbow
• Pipe Fitting Connection Type: Press x Street
• Maximum Operating Pressure: 200 psi
• Maximum Operating Temperature: 250 Degrees F
• Minimum Operating Temperature: 0 Degrees F
• Fitting Side A Connection Type: Press-Fit
• Fitting Side B Connection Type: FTG
• Fitting Side B Copper Tube Size: 1/2 in
• Temperature Range: 0 Degrees to 250 Degrees F
