Viega 90065 MegaPress 45 Elbow 1 inches x 1 inches

Product Description

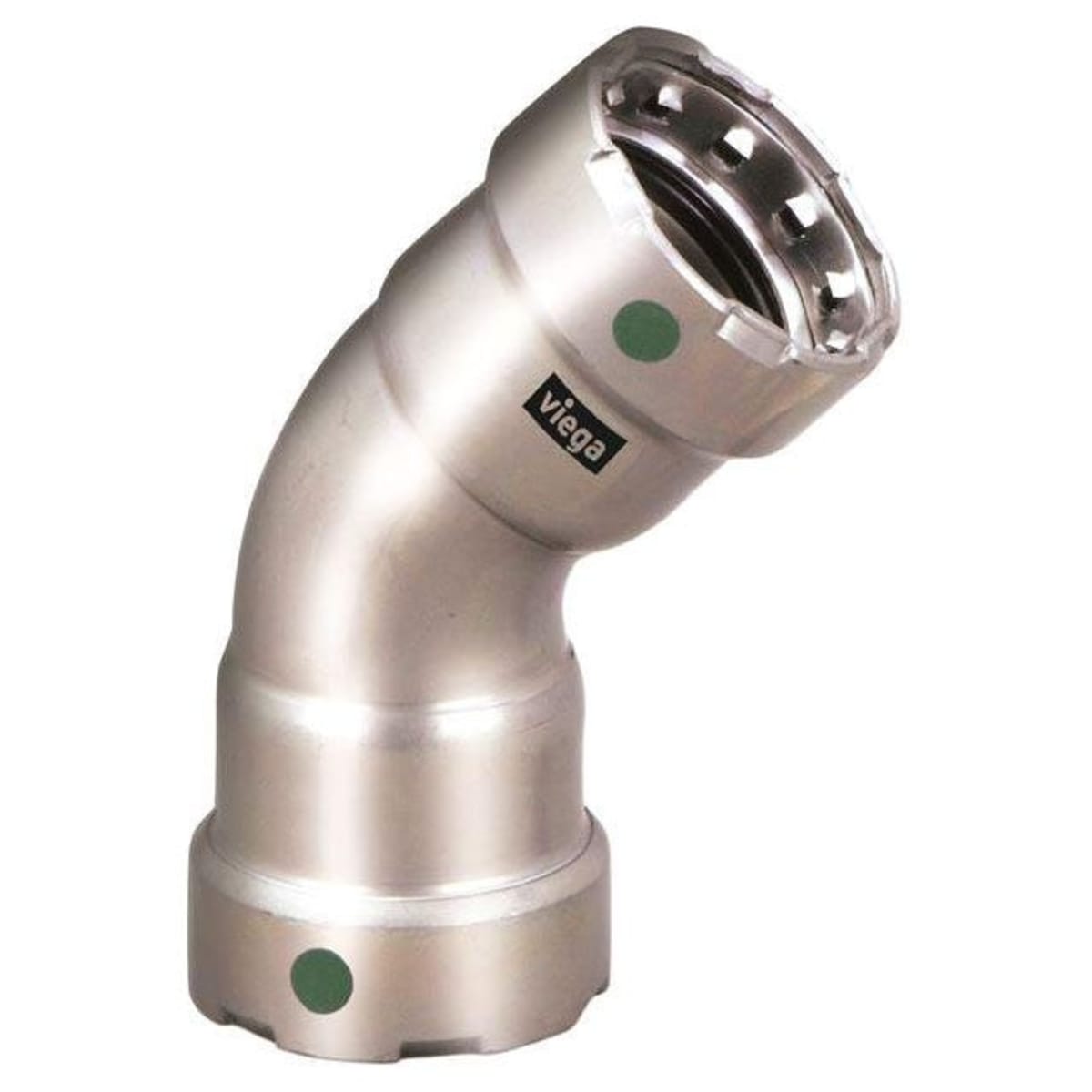

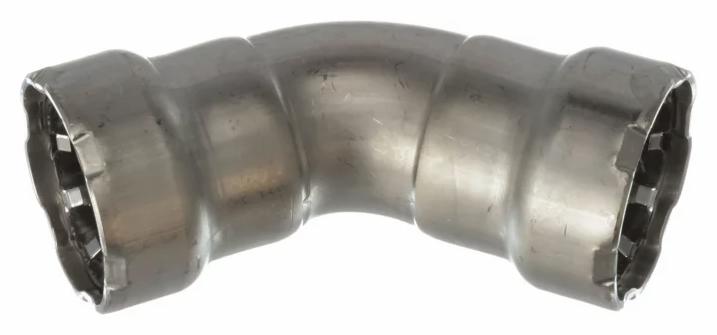

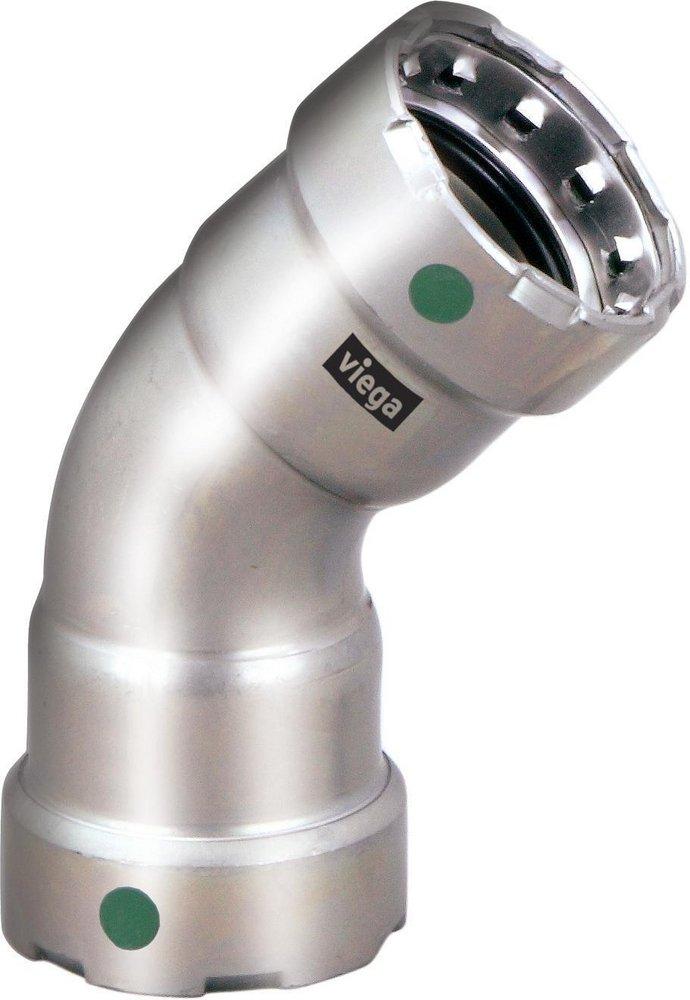

The VIEGA 90065 MegaPress 45 Elbow is a 1" x 1" fitting made of 316 stainless steel. Designed for potable water applications, this elbow features press-fit connections on both ends. It is suitable for systems with a maximum operating pressure of 200 psi and a maximum operating temperature of 250 Degrees F.

• Application Potable Water
• Fitting Material Stainless Steel
• Material Grade 316

Product Highlights

The VIEGA 90065 MegaPress 45 Elbow is ideal for creating 45-degree angles in piping systems.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 90065
• Country of Origin: Germany

Technical Specifications

• Size: 1"
• Type: Elbow - 45
• Material: 316 stainless steel
• Connection_Type: Press
• Item [Specifications]: 45 Degree Elbow
• Pipe Size [Specifications]: 1 in x 1 in
• Standards [Specifications]: ASTM A312, ASTM A403, CRN 13492.5 A/B, IAPMO, IAPMO PS 117, ICC, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9
• Tube Size [Specifications]: 1 in x 1 in
• Compliance [Specifications]: CRN 13492.5 A/B, IAPMO PS117, ICC-LC1002, NSF 372, NSF/ANSI 61
• Application [Specifications]: Potable Water
• For Tube OD [Specifications]: 1 in
• Temp. Range [Specifications]: 0 Degrees to 250 Degrees F
• Fitting Shape [Specifications]: Elbow
• Max. Pressure [Specifications]: 200 psi
• Material Grade [Specifications]: 316
• Stop and Shape [Specifications]: 45 Degrees Elbow
• Connection Type [Specifications]: Press-Fit x Press-Fit
• O-Ring Material [Specifications]: EPDM
• Fitting Material [Specifications]: Stainless Steel
• Fitting Pipe Size [Specifications]: 1 in
• End Connection Type [Specifications]: Press
• Pipe Size (Fittings) [Specifications]: 1" x 1"
• Fitting Body Material [Specifications]: 316 Stainless Steel
• Tube Fitting Material [Specifications]: 316 Stainless Steel
• Specific Fitting Shape [Specifications]: 45 Degrees Elbow
• Fitting Connection Type [Specifications]: Press x Press
• Fitting Side A Pipe Size [Specifications]: 1 in
• Fitting Side B Pipe Size [Specifications]: 1 in
• Pipe Size - Pipe Fitting [Specifications]: 1 in x 1 in
• Maximum Operating Pressure [Specifications]: 200 psi
• Specific Pipe Fitting Shape [Specifications]: 45 Degrees Elbow
• Pipe Fitting Connection Type [Specifications]: Press x Press
• Maximum Operating Temperature [Specifications]: 250 Degrees F
• Minimum Operating Temperature [Specifications]: 0 Degrees F
• Fitting Side A Connection Type [Specifications]: Press-Fit
• Fitting Side B Connection Type [Specifications]: Press-Fit
• Fitting Side B Tube Outer Diameter [Specifications]: 1 in
