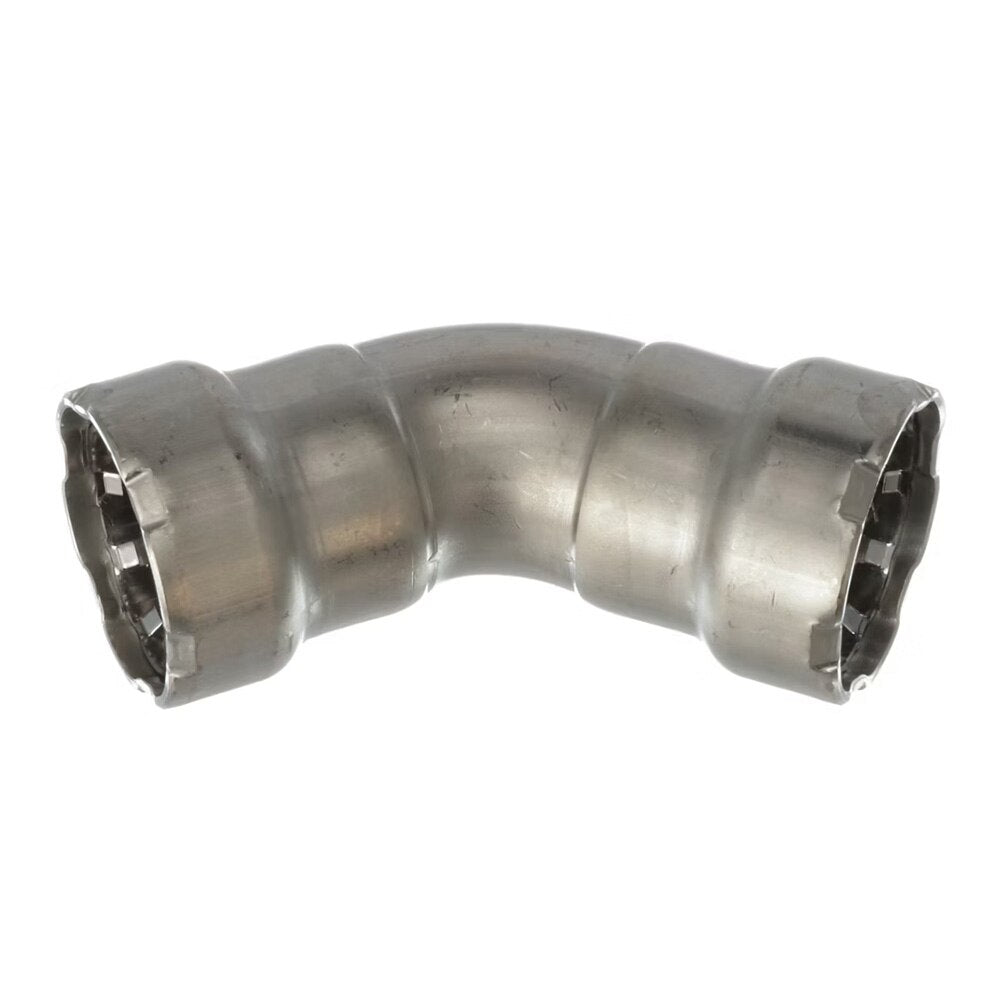

Viega 90055 MegaPress 45 Elbow 1/2 inches x 1/2 inches

Product Description

The VIEGA 90055 MegaPress 45 Elbow is designed for use with Schedule 10 to Schedule 40 stainless steel pipe, forming a complete press system suitable for commercial and industrial applications. These fittings utilize an EPDM sealing element, ensuring a reliable, leak-free connection. The system is capable of withstanding harsh environments while transporting various fluids and gases.

• Smart Connect technology for secure connections
• EPDM sealing element ensures a reliable, leak-free connection
• Suitable for potable water and various industrial applications

Product Highlights

The Viega MegaPress system eliminates the need for welding, grinding, or threading, offering a fast and easy-to-use solution for creating secure press connections.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 90055
• Country of Origin: Germany

Technical Specifications

• Primary Vendor Part Number: 90055
• Material: 316 stainless steel
• Size: 1/2" x 1/2"
• Connection Type: Press
• Item [Specifications]: 45 Degree Elbow
• Pipe Size [Specifications]: 1/2 in
• Standards [Specifications]: ASTM A312, ASTM A403, CRN 13492.5 A/B, IAPMO, IAPMO PS 117, ICC, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9
• Tube Size [Specifications]: 1/2 in x 1/2 in
• Compliance [Specifications]: CRN 13492.5 A/B, IAPMO PS117, ICC-LC1002, NSF 372, NSF/ANSI 61
• Application [Specifications]: Potable Water
• Temp. Range [Specifications]: 0 Degrees to 250 Degrees F
• Fitting Shape [Specifications]: Elbow
• Max. Pressure [Specifications]: 200 psi
• Material Grade [Specifications]: 316
• Stop and Shape [Specifications]: 45 Degrees Elbow
• Connection Type [Specifications]: Press-Fit x Press-Fit
• O-Ring Material [Specifications]: EPDM
• Fitting Material [Specifications]: Stainless Steel
• End Connection Type [Specifications]: Press
• Fitting Body Material [Specifications]: 316 Stainless Steel
• Tube Fitting Material [Specifications]: 316 Stainless Steel
• Specific Fitting Shape [Specifications]: 45 Degrees Elbow
• Fitting Connection Type [Specifications]: Press x Press
• Fitting Side A Pipe Size [Specifications]: 1/2 in
• Fitting Side B Pipe Size [Specifications]: 1/2 in
• Pipe Size - Pipe Fitting [Specifications]: 1/2 in x 1/2 in
• Maximum Operating Pressure [Specifications]: 200 psi
• Specific Pipe Fitting Shape [Specifications]: 45 Degrees Elbow
• Maximum Operating Temperature [Specifications]: 250 Degrees F
• Minimum Operating Temperature [Specifications]: 0 Degrees F
• Fitting Side A Connection Type [Specifications]: Press-Fit
• Fitting Side B Connection Type [Specifications]: Press-Fit
• Country of Origin (subject to change) [Specifications]: Germany
• Fitting/Connector Type: 45 deg Elbow
• End Style: Press
• Temperature Rating: 0 To 250 deg F
• Pressure Rating: 200 psi
• Domestic Import: Import
• Manufacturer: Viega
• Category: MegaPress Press Fittings
• Domestic/Import: Import
• Nominal Size: 1/2 In
• Brand: VIEGA MEGAPRESS
• Type: Press Tube Fittings
• MPN: 90055
• UPC: 691514900551
• Item: MEGAPRESS 45 ELBOW 1/2 X 1/2
• OEM: Viega
• OEM #: 90055
• Fitting Type: Elbow
• Sealing Element: EPDM
• Application: MegaPress
• Angle: 45D
• Standards: ASTM A312: Standard Specification for Seamless Welded and Heavily Cold Worked Austenitic Stainless Steel Pipe, ASTM A403: Standard Specification for Wrought Austenitic Stainless Steel Piping, IAPMO: Uniform Plumbing Code, ICC: International Plumbing
• Temperature Range: 0 Degrees to 250 Degrees F
