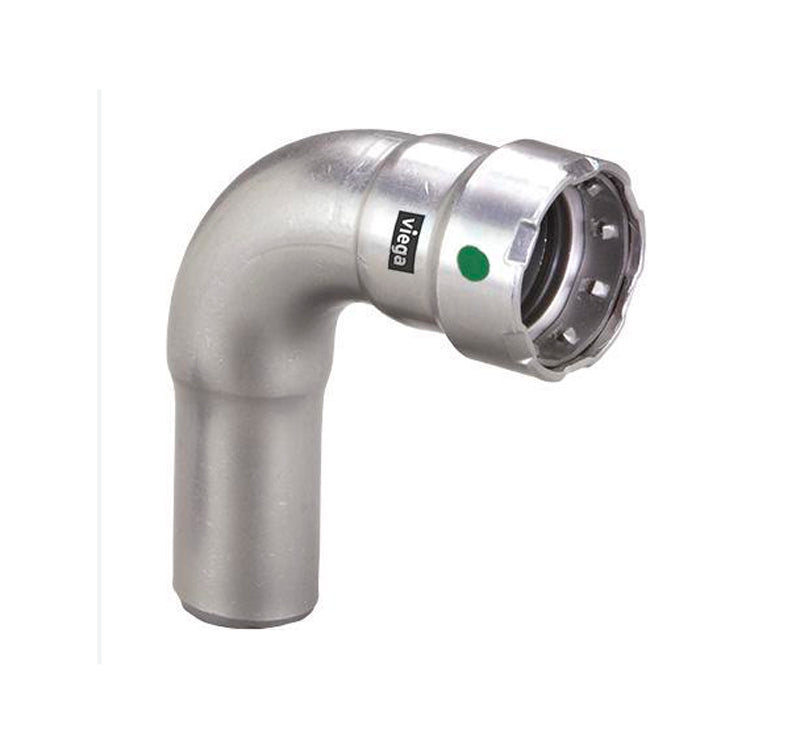

Viega 90030 MegaPress 90 Street Elbow 1/2 inches x 1/2 inches

Product Description

The VIEGA 90030 MegaPress 90 Street Elbow is a 1/2" x 1/2" fitting made from 316 stainless steel. Designed for MegaPress applications, this elbow allows for press connections in plumbing systems. It is suitable for potable water and can withstand a maximum operating pressure of 200 psi and temperatures up to 250 Degrees F.

• Made from 316 stainless steel
• Maximum operating pressure of 200 psi
• Suitable for potable water applications

Product Highlights

The VIEGA MegaPress 90 Street Elbow provides a secure and efficient connection for various plumbing applications.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 90030
• Country of Origin: Germany

Technical Specifications

• Primary Vendor Part Number: 90030
• Material: 316 stainless steel
• Size 1: 1/2"
• Size 2: 1/2"
• Fitting Type: 90 street elbow
• Application: MegaPress
• Item [Specifications]: 90 Degree Street Elbow
• Pipe Size [Specifications]: 1/2 in
• Standards [Specifications]: ASTM A312, ASTM A403, CRN 13492.5 A/B, IAPMO, IAPMO PS 117, ICC, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9
• Tube Size [Specifications]: 1/2 in x 1/2 in
• Compliance [Specifications]: CRN 13492.5 A/B, IAPMO PS117, ICC-LC1002, NSF 372, NSF/ANSI 61
• Application [Specifications]: Potable Water
• Temp. Range [Specifications]: 0 Degrees to 250 Degrees F
• Fitting Shape [Specifications]: Elbow
• Max. Pressure [Specifications]: 200 psi
• Material Grade [Specifications]: 316
• Stop and Shape [Specifications]: 90 Degrees Street Elbow Adapter
• Connection Type [Specifications]: Press-Fit x FTG
• O-Ring Material [Specifications]: EPDM
• Copper Tube Size [Specifications]: 1/2 in
• Fitting Material [Specifications]: Stainless Steel
• Fitting Pipe Size [Specifications]: 1/2 in
• End Connection Type [Specifications]: Fitting, Press
• Pipe Size (Fittings) [Specifications]: 1/2" x 1/2"
• Fitting Body Material [Specifications]: 316 Stainless Steel
• Tube Fitting Material [Specifications]: 316 Stainless Steel
• Specific Fitting Shape [Specifications]: 90 Degrees Street Elbow Adapter
• Fitting Connection Type [Specifications]: Press x Street
• Fitting Copper Tube Size [Specifications]: 1/2 in
• Fitting Side A Pipe Size [Specifications]: 1/2 in
• Maximum Operating Pressure [Specifications]: 200 psi
• Specific Pipe Fitting Shape [Specifications]: 90 Degrees Street Elbow
• Maximum Operating Temperature [Specifications]: 250 Degrees F
• Minimum Operating Temperature [Specifications]: 0 Degrees F
• Fitting Side A Connection Type [Specifications]: Press-Fit
• Fitting Side B Connection Type [Specifications]: FTG
• Fitting Side B Copper Tube Size [Specifications]: 1/2 in
• Country of Origin (subject to change) [Specifications]: Germany
• Components: EPDM sealing elements
• Feature: Smart Connect feature
• Brand: VIEGA
• Type: Pipes, Valves & Fittings > Tube Fittings > Press-Fit Tube Fitting
• Features: Crimp Elbow Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type FTG, Fitting Side B Copper Tube Size 1/2 in, Fitting Material Stainless Steel, Fitting Side A Pipe Size 1/2 in, Material Grade 316, O-Ring Material EPDM, Specific Fitting Shape 90 Degrees Street Elbow Adapter, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F
• Item Diameter: N/A
• Item Length: 3.600
• Item Height: 1.500
• Item Width: 3.000
• California Prop 65 Warning: N
• Compatible Brand: VIEGA
• Item Weight: 0.3100
• MPN: 90030
• Weight: 0.3100
• Length: 3.600
• Width: 3.000
• Depth: 3.000
• Fitting Size: 1/2 in
• Item Name: 90 deg Street Elbow
• Sub Brand: MegaPress
• Bend Angle: 90 deg
• Nominal Size A: 1/2 in
• Nominal Size B: 1/2 in
• Connection Type: IPS|Press
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 deg F
• Applications: Chilled Water, Compressed Air, Commercial, Industrial, Potable Water and Marine
• Standards/Approvals: ASTM A312/A403, CRN 13492.5 A/B, IAPMO PS-117, ICC-LC1002, TSSA/ASME B31.1/B31.3/B31.9, NSF/ANSI 61/372
• Material Construction: Stainless Steel
• For Use With: SCH 5 to SCH 40 Stainless Steel Pipes
• OEM: Viega
• OEM #: 90030
• Max Pressure: 200 psi
• Pipe Size - Pipe Fitting: 1/2 x 1/2 in
• Standards: ASTM A312: Standard Specification for Seamless Welded and Heavily Cold Worked Austenitic Stainless Steel Pipe, ASTM A403: Standard Specification for Wrought Austenitic Stainless Steel Piping, IAPMO: Uniform Plumbing Code, ICC: International Plumbing
• Temperature Range: 0 Degrees to 250 Degrees F
• Tube Size: 1/2 x 1/2 in
• Domestic/Import: Import
• End Style: Fitting x Press
• Fitting/Connector Type: 90 deg Elbow
• Nominal Size: 1/2 In
• Product Type: Street 90 Elbow
• Equivalent Part Number: 90030
