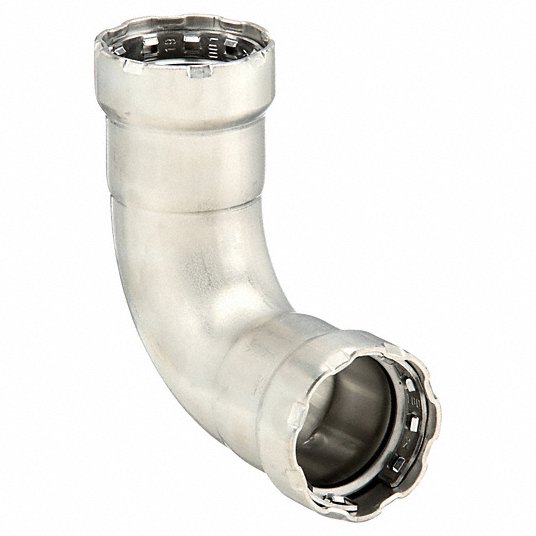

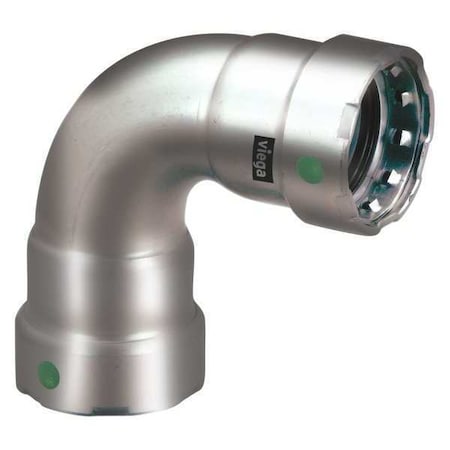

Viega 90025 MegaPress 316 90 Elbow, 2 inches x 2 inches

Product Description

The VIEGA 90025 MegaPress 316 90 Elbow, sized at 2" x 2", is designed for use with Schedule 10 to Schedule 40 stainless steel pipe, making it ideal for commercial and industrial applications. It features a versatile EPDM sealing element for a reliable, leak-free connection. This elbow facilitates changes in direction within piping systems.

• 90 Degree Elbow
• Application Potable Water
• Press-Fit Connection

Product Highlights

The MegaPress system minimizes downtime with wet connections, eliminating the need for welding, grinding, or heavy equipment. It ensures secure press connections in less than 7 seconds.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 90025
• Country of Origin: Germany

Technical Specifications

• Fitting Shape: 90 Elbow
• Fitting Material: 316 Stainless Steel
• O-Ring Material: EPDM
• Temperature Range: 0 0 0F to 250 0F
• Fitting Side 1 Connection Type: Press-fit
• Fitting Side A Pipe Size: 2 in
• Fitting Side B Connection Type: Press-Fit
• Fitting Side B Pipe Size: 2 in
• For Media Type: Potable Water
• Standards: ASTM A312; ASTM A403; CRN 13492.5 A/B; IAPMO; IAPMO PS 117; ICC; ICC LC1002; NSF/ANSI 372; NSF/ANSI 61; TSSA/ASME B31.1; TSSA/ASME B31.3; TSSA/ASME B31.9
• Maximum Operating Pressure: 200 psi
• Brand: VIEGA
• Pipe Size: 2 in x 2 in
• Material Grade: 316
• Max. Pressure: 200 psi
• Connection Type: Press-Fit x Press-Fit
• Fitting Pipe Size: 2 in
• End Connection Type: Press
• Fitting Body Material: 316 Stainless Steel
• Tube Fitting Material: 316 Stainless Steel
• Specific Fitting Shape: 90 Degrees Elbow
• Fitting Connection Type: Press x Press
• Pipe Size - Pipe Fitting: 2 in x 2 in
• Maximum Operating Temperature: 250 Degrees F
• Minimum Operating Temperature: 0 Degrees F
• Fitting Side A Connection Type: Press-Fit
• Fitting/Connector Type: 90 deg Elbow
• Nominal Size: 2 in
• End Style: Press
• Material: 316 Stainless Steel
• Seal Material: EPDM
• Manufacturer Name: Viega
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 deg F
• Includes: EPDM Sealing Element (Green Dot)
• Application: Commercial and Industrial
• Domestic/Import: Import
• Country of Origin: DE
• Standards and Approvals: ASTM A312/A403 | CRN 13492.5 A/B | IAPMO to IAPMO PS117 | ICC-LC1002 | TSSA/ASME B31.1/B31.3/B31.9 | NSF/ANSI 61/372
• UNSPSC: 40142604
