Product Description

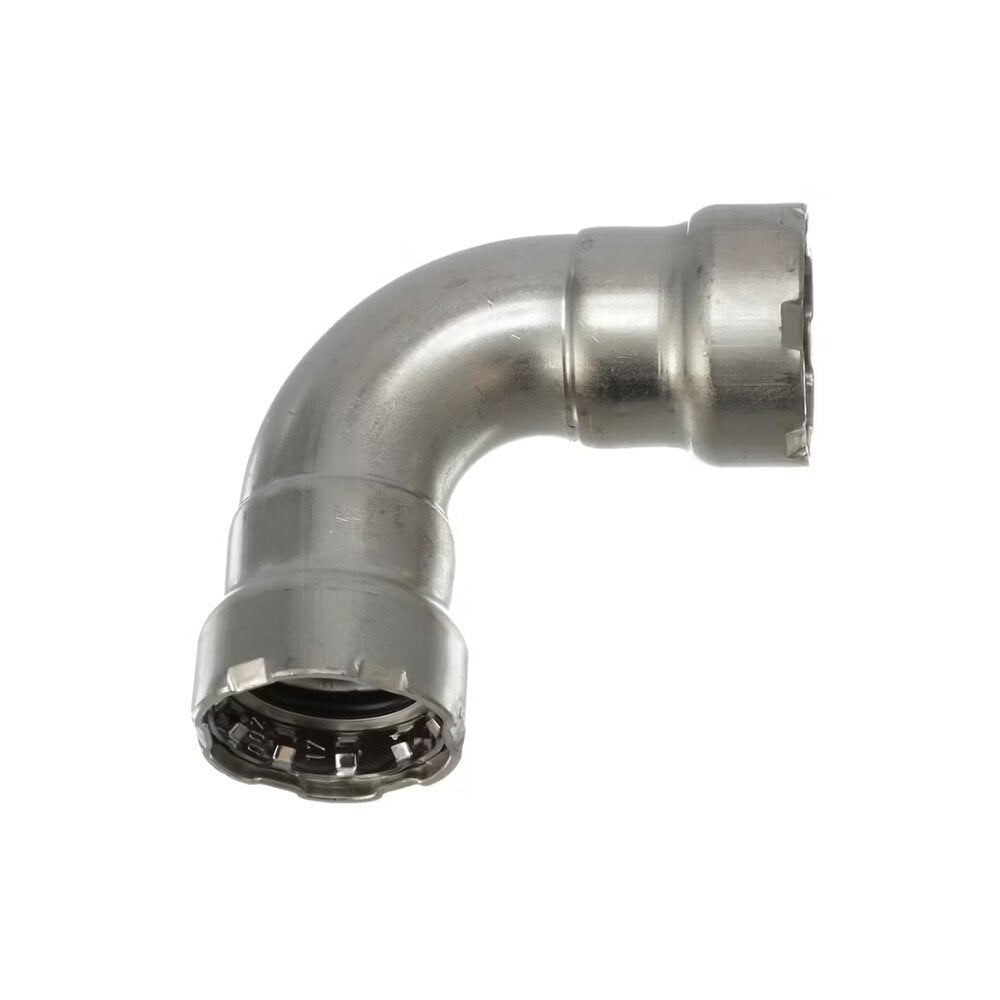

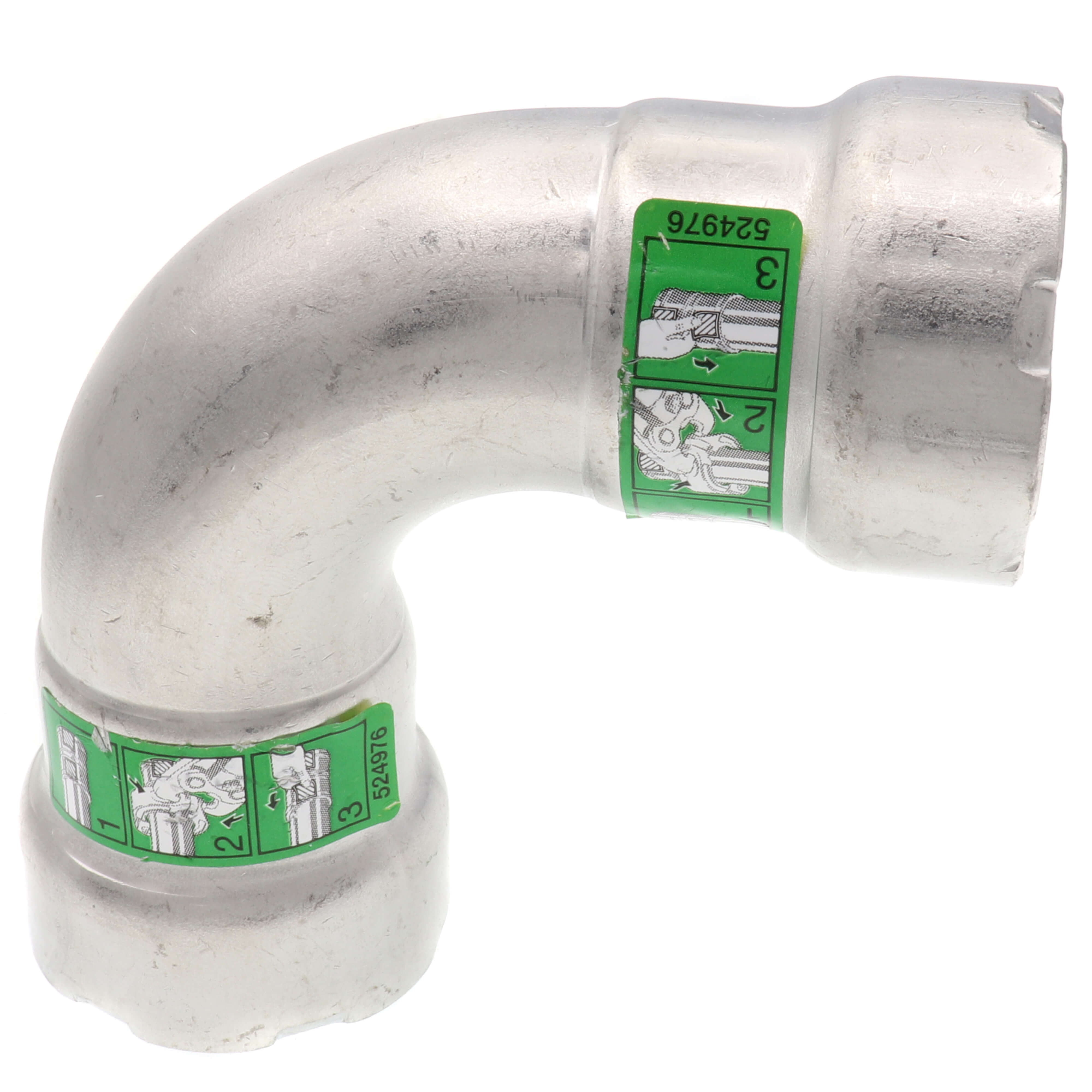

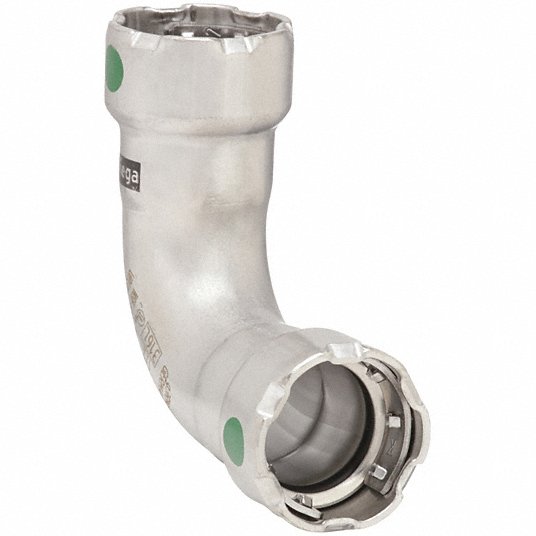

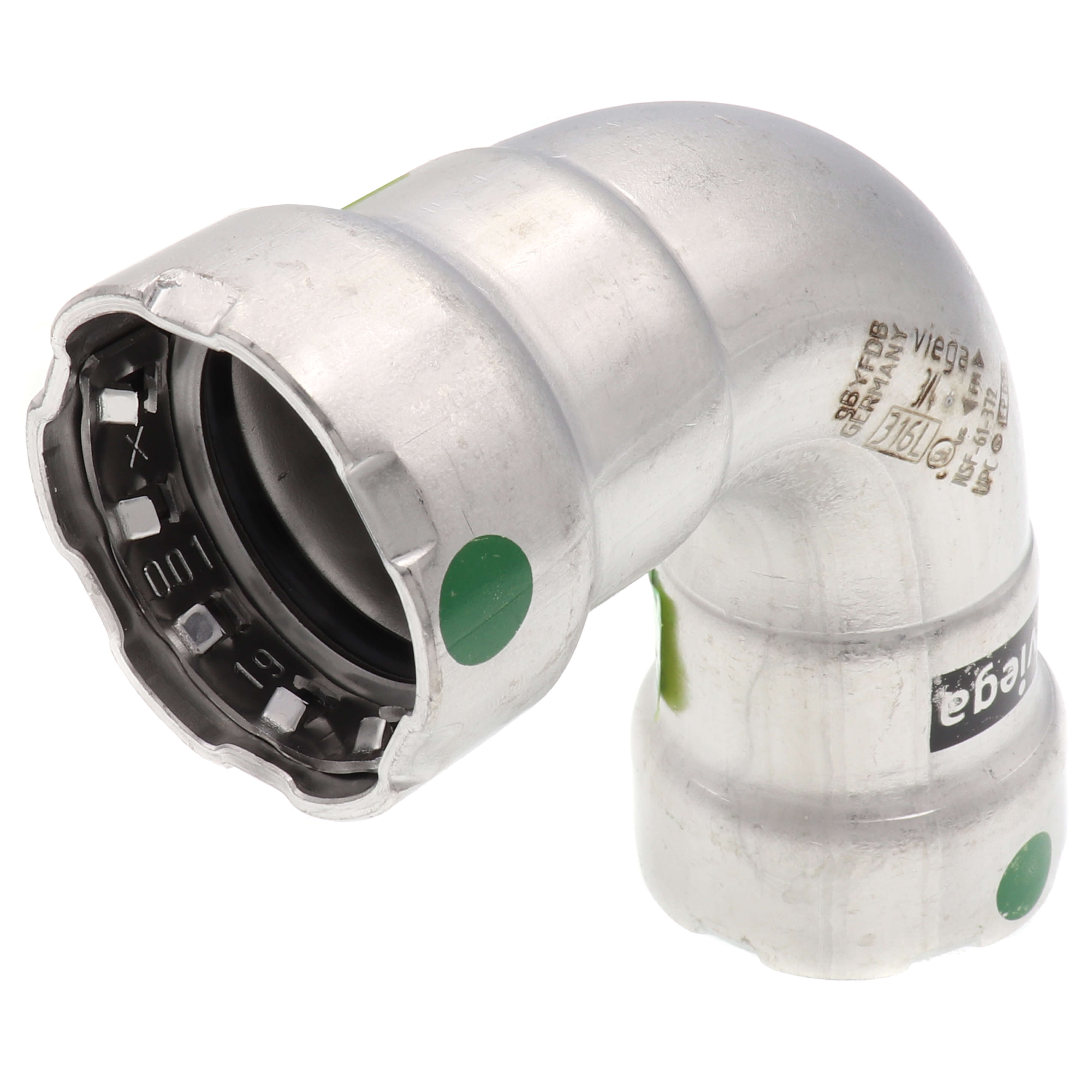

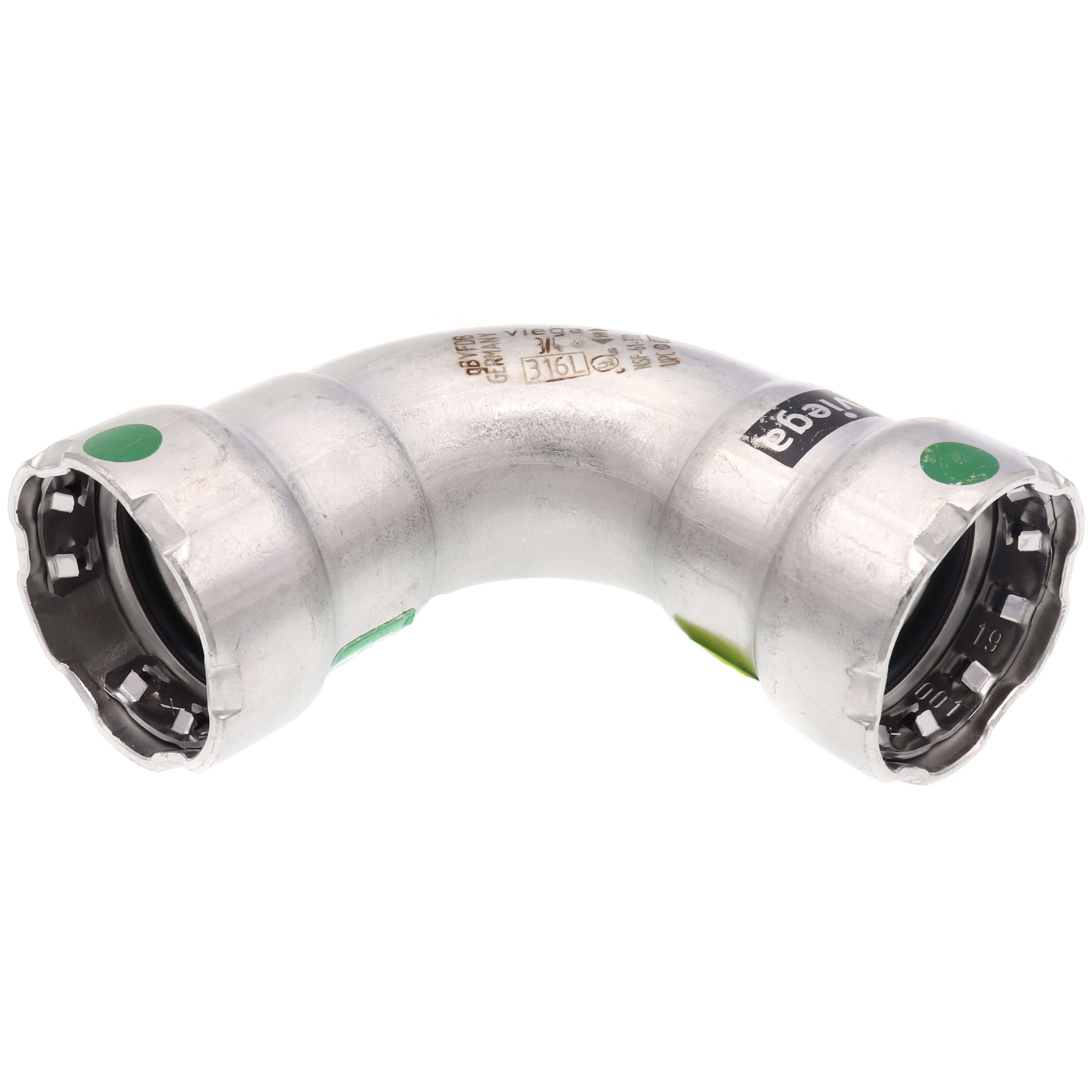

The Viega 90010 MegaPress 90 Elbow is a 3/4" x 3/4" stainless steel press fitting designed for potable water systems. It facilitates changes in direction, addition of outlets, reduction of outlets, or capping of piping systems. This elbow meets NSF standards for safe use in water supply systems.
- Features Smart Connect technology
- Constructed from 316 stainless steel
- Utilizes a press connection
Product Highlights
The Viega MegaPress 90 elbow is ideal for potable water stainless steel press fitting connections.
Product Information
Standard Information
-
Brand: VIEGA
-
Manufacturer Part Number: 90010
-
Country of Origin: Germany
Technical Specifications
-
MPN: 90010
-
Brand: VIEGA
-
Size: 3/4" x 3/4"
-
Material: Stainless Steel 316
-
Connection Type: Press-Fit x Press-Fit
-
Item: 90 Degree Elbow
-
Pipe Size: 3/4 in x 3/4 in
-
Standards: ASTM A312, ASTM A403, CRN 13492.5 A/B, IAPMO, IAPMO PS 117, ICC, ICC LC1002, NSF/ANSI 372, NSF/ANSI 61, TSSA/ASME B31.1, TSSA/ASME B31.3, TSSA/ASME B31.9
-
Tube Size: 3/4 in x 3/4 in
-
Compliance: CRN 13492.5 A/B, IAPMO PS117, ICC-LC1002, NSF 372, NSF/ANSI 61
-
Application: Potable Water
-
Temperature Range: 0 Degrees to 250 Degrees F
-
Fitting Shape: Elbow
-
Max. Pressure: 200 psi
-
Material Grade: 316
-
Stop and Shape: 90 Degrees Elbow
-
O-Ring Material: EPDM
-
Fitting Material: Stainless Steel
-
Fitting Pipe Size: 3/4 in
-
End Connection Type: Press
-
Fitting Body Material: 316 Stainless Steel
-
Tube Fitting Material: 316 Stainless Steel
-
Specific Fitting Shape: 90 Degrees Elbow
-
Fitting Connection Type: Press x Press
-
Fitting Side A Pipe Size: 3/4 in
-
Fitting Side B Pipe Size: 3/4 in
-
Pipe Size - Pipe Fitting: 3/4 in x 3/4 in
-
Maximum Operating Pressure: 200 psi
-
Specific Pipe Fitting Shape: 90 Degrees Elbow
-
Maximum Operating Temperature: 250 Degrees F
-
Minimum Operating Temperature: 0 Degrees F
-
Fitting Side A Connection Type: Press-Fit
-
Fitting Side B Connection Type: Press-fit
-
Country of Origin (subject to change): Germany
-
Sub-brand: Mega Press
-
Fittings: Fitting Shape
-
Fitting Side 1 Connection Type: Press-fit
-
For Media Type: Potable Water
-
UNSPSC: 40142604
-
Type: Pipes, Valves & Fittings > Tube Fittings > Press-Fit Tube Fitting
-
Features: Crimp Elbow Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type Press-Fit, Fitting Material Stainless Steel, Fitting Side A Pipe Size 3/4 in, Fitting Side B Pipe Size 3/4 in, Material Grade 316, O-Ring Material EPDM, Specific Fitting Shape 90 Degrees Elbow, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F
-
Item Length: 3.500
-
Item Width: 3.500
-
Item Height: 1.800
-
Country of Origin: DE
-
California Prop 65 Warning: N
-
Compatible Brand: VIEGA
-
Item Weight: 0.4200
-
UPC: 691514900100
-
Weight: 0.4200
-
Length: 3.500
-
Width: 3.500
-
Depth: 3.500
-
Manufacturer (Brand): Viega
-
Manufacturer Item Number: 90010
-
Weight (lb): 0.422
-
UOM: Eaches
-
Model Number: 5116
-
Package Quantity: Each
-
Components: EPDM sealing elements
-
Feature: Smart Connect feature
