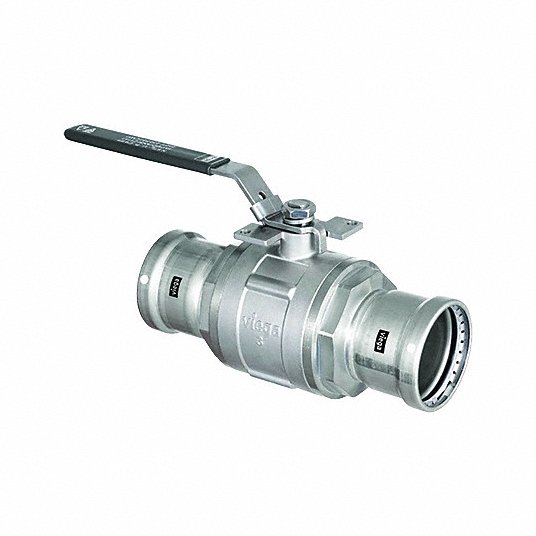

Viega 86820 Megapress Manual Two-Way Ball Valve 2 1/2 In

Product Description

The VIEGA 86820 Megapress Manual Two-Way Ball Valve is constructed from 304 Stainless Steel, designed for robust performance in various applications. This two-piece, full port valve features a 2-1/2 inch nominal size with Press connections on both sides, suitable for high-pressure systems up to 200 psi. It operates effectively within a media temperature range of 14 °F to 284 °F, making it ideal for demanding industrial environments. The valve includes a locking metal lever handle and PTFE seats for reliable sealing.

• Abrasion-resistant construction ensures durability.
• Corrosion-resistant 304 Stainless Steel body and ball.
• Suitable for high-pressure and high-temperature applications.

Product Highlights

Durable 304 stainless steel ball valve with press connections, designed for high-pressure and high-temperature applications.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 86820
• Country of Origin: Import

Technical Specifications

• Manufacturer Part Number: 86820
• Brand: VIEGA MEGAPRESS
• Body Material: 304 Stainless Steel
• Valve Construction: Two-Piece
• Ball Port Style: Full Port
• Nominal Size: 2-1/2 in
• Connection Type: Press
• Connection Size: 2-1/2 in
• Max Pressure: 200 psi
• Handle Type: Lever
• Handle Locking: Locking
• Handle Material: Metal
• Ball Material: 304 Stainless Steel
• Seat Material: PTFE
• Seal Material: FKM
• Stem Material: 316 Stainless Steel
• Stem Type: Blowout Resistant
• Media Temperature Range: 14 °F to 284 °F
• Min Media Temperature: 14 °F
• Max Media Temperature: 284 °F
• 3-A Compliance: Not Rated
• Standards: ASME B31; IAPMO/ANSI Z1157; MSS SP-110
• Series: MegaPress
• Category: Ball Valve
