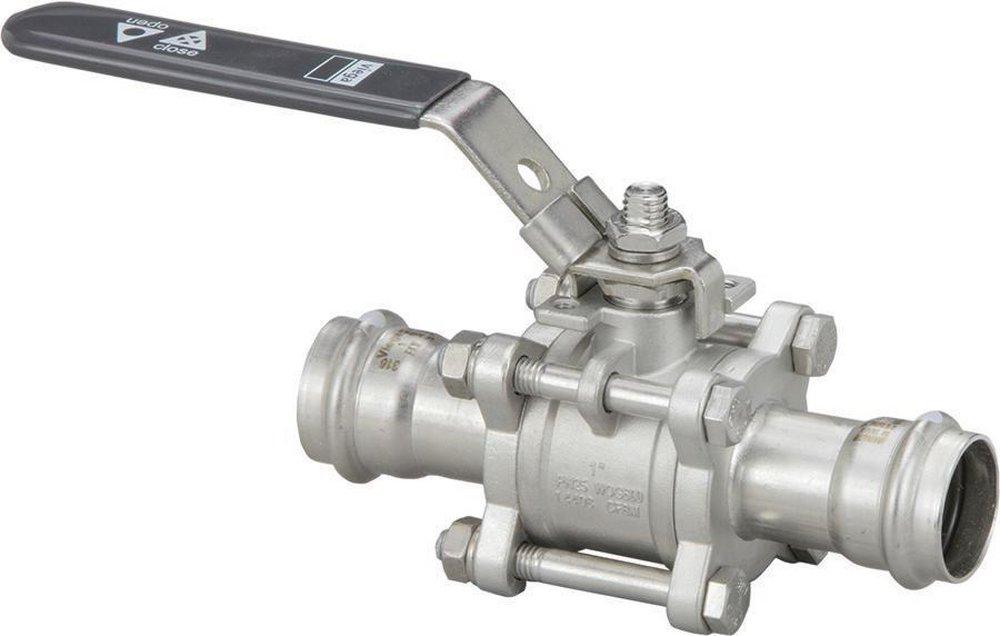

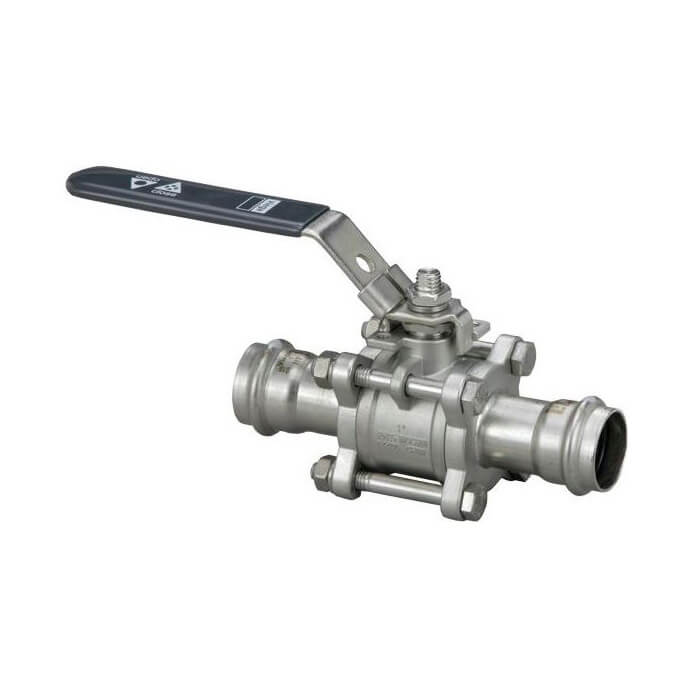

Viega 85138 ProPress® 2 in. 316 Stainless Steel Full Port Press Ball Valve

Product Description

The VIEGA 85138 ProPress® 2 in. 316 Stainless Steel Full Port Press Ball Valve minimizes system downtime by allowing for wet connection. It is fast and easy to use. Patented Viega Smart Connect® makes secure connections in less than 7 seconds. It is corrosion resistant and helps installers easily identify unpressed connections during pressure testing.

• Minimizes system downtime by allowing for wet connection
• Fast and easy to use
• Patented Viega Smart Connect® makes secure connection in less than 7 seconds

Product Highlights

This 2 inch ball valve is made from 316SS with a P1 x P2 connection. It is corrosion resistant, weldable and ideal for SeaWater Applications.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 85138
• Country of Origin: Global

Technical Specifications

• Seal [Features]: FKM
• Size [Features]: 2" x 2"
• Connection Type [Features]: Press
• Clean Bagged: Yes
• Collection: ProPress
• End Connection 1: Press
• End Connection 2: Press
• End Connections: Press x Press
• FM Approved: No
• Handle Material: Metal
• IAPMO Listed: No
• Material: Stainless Steel
• Material Type: 316 SS
• Maximum Temperature: 250
• Minimum Temperature: 0
• NSF Certified: No
• Origin: Global
• Pressure - Maximum: 200 psi
• Recommended Valve Application: Industrial, Water
• UL Listed: No
• UPC: 691514851389
• Valve Body Style: 3 piece
• Valve Operator: Locking Lever Handle
• Valve Port Opening: Full Port
• Valve Seat Material: PTFE
• Valve Size: 2 in
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
• Type: Ball Valve
• Size: 2 in.
• Material Family: Stainless Steel
• Material Grade: 316 SS
• Manufacturer Part: 85138
• Operator (Default): Lever
• Connection: P1 x P2
• Manufacturer: Viega
• Brand: Viega
• Product Type: Ball Valve
• Equivalent Part Number: 85138
