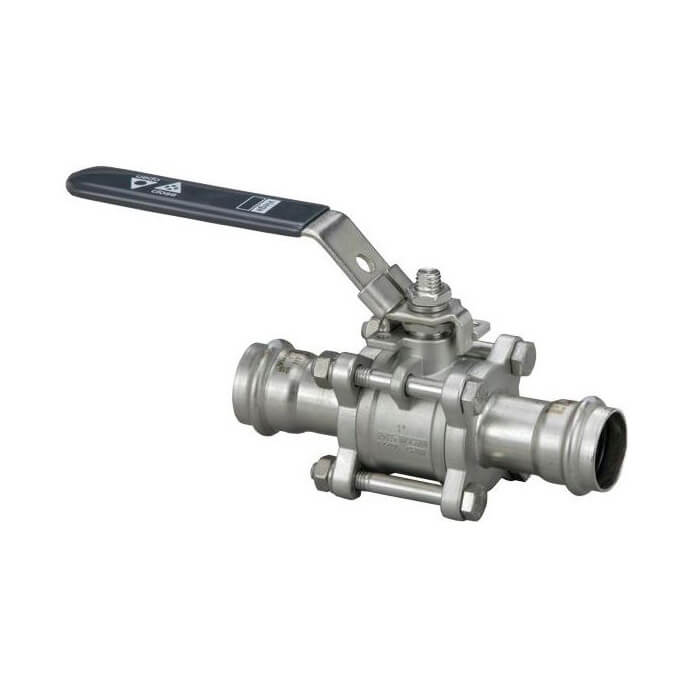

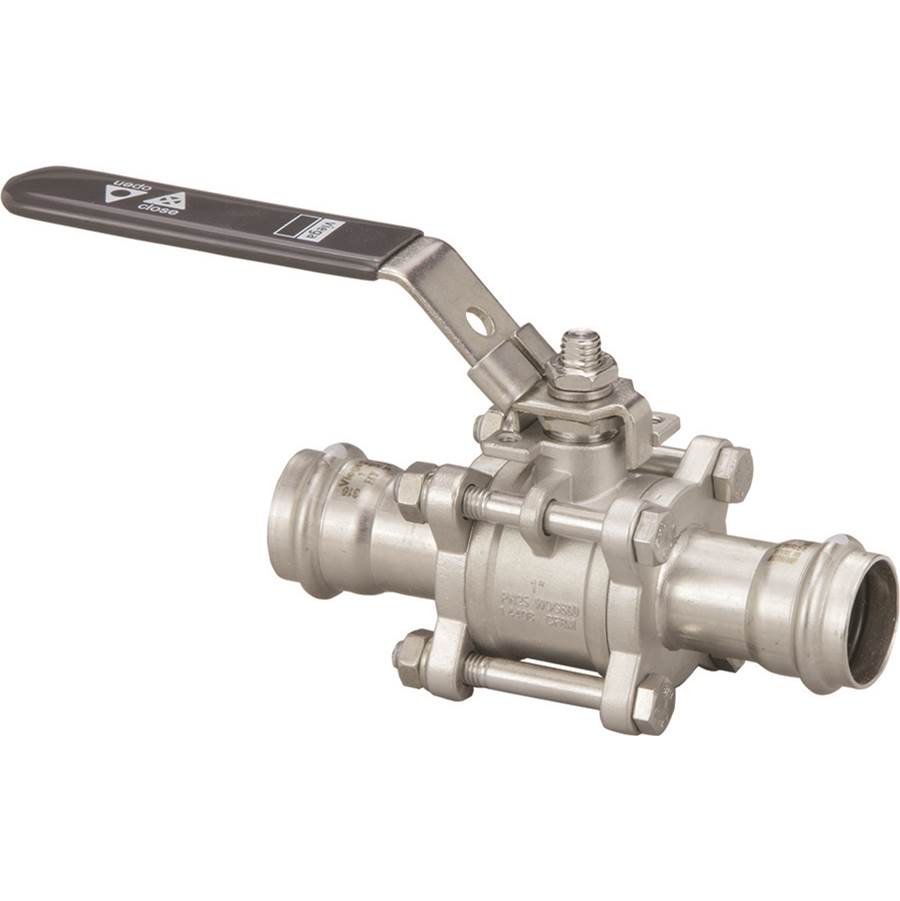

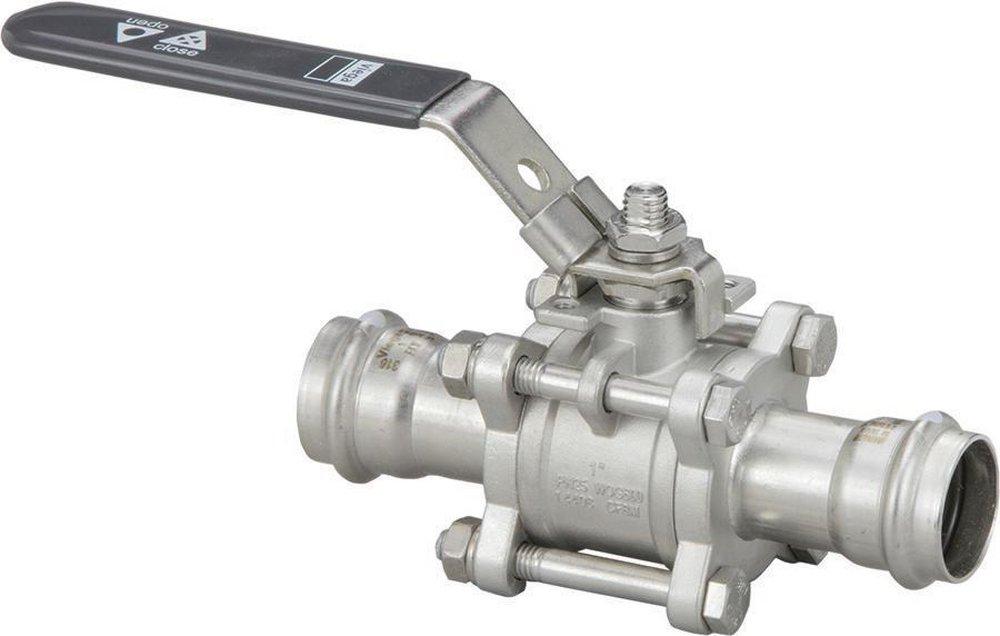

Viega 85136 ProPress 3-Piece Ball Valve 1-1/4 inch

Product Description

The VIEGA 85136 ProPress 3-Piece Ball Valve is made of 316 stainless steel. It is designed for use with Viega ProPress stainless pipe. The valve features a press connection and FKM sealing elements. Viega ProPress systems incorporate patented Smart Connect technology to help identify unpressed connections.

• For use with Viega ProPress stainless pipe
• Features press connection
• Smart Connect feature helps identify unpressed connections

Product Highlights

The VIEGA 85136 ProPress ball valve offers a fast, clean, and safe method for joining copper tubing in commercial, industrial, and residential applications.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 85136
• Country of Origin: DE

Technical Specifications

• Seal [Features]: FKM
• Size [Features]: 1-1/4" x 1-1/4"
• Connection Type [Features]: Press
• Brand: Viega
• Nominal Size: 1-1/4 in
• End Style: Press
• Pressure Rating: 200 psi
• Body Material: Stainless Steel
• Port Type: Full
• Softgoods Material: FKM
• Manufacturer Name: Viega
• Temperature Rating: 0 to 250 deg F
• Type: 3-Piece
• Includes: FKM Sealing Element (White Dot)
• Application: Additives, Sludge, Aeration, Lube oil, Slurry, Compressed air
• Domestic/Import: Import
• Country of Origin: DE
• Standards and Approvals: CSA Certified | FM Approved | MSS SP-110 | NSF 61/372 | UL Listed
• Clean Bagged: Yes
• Collection: ProPress
• End Connection 1: Press
• End Connection 2: Press
• End Connections: Press x Press
• FM Approved: No
• Handle Material: Metal
• IAPMO Listed: No
• Material: Stainless Steel
• Material Type: 316 SS
• Maximum Temperature: 250
• Minimum Temperature: 0
• NSF Certified: No
• Origin: Global
• Pressure - Maximum: 200 psi
• Recommended Valve Application: Industrial, Water
• UL Listed: No
• UPC: 691514851365
• Valve Body Style: 3 piece
• Valve Operator: Locking Lever Handle
• Valve Port Opening: Full Port
• Valve Seat Material: PTFE
• Valve Size: 1-1/4 in
• Valve Stem: Blowout-proof
• Valve Type: Ball Valve
• Product Type: Ball Valve
• Equivalent Part Number: 85136
• Supplies Depot Part Number: 612341
• Length: 11.32"
• Width: 5.14"
• Height: 2.81"
• Dimensions: 1-1/4'' x 1-1/4''
• Unit Of Measure: Piece
• Model: 85136
