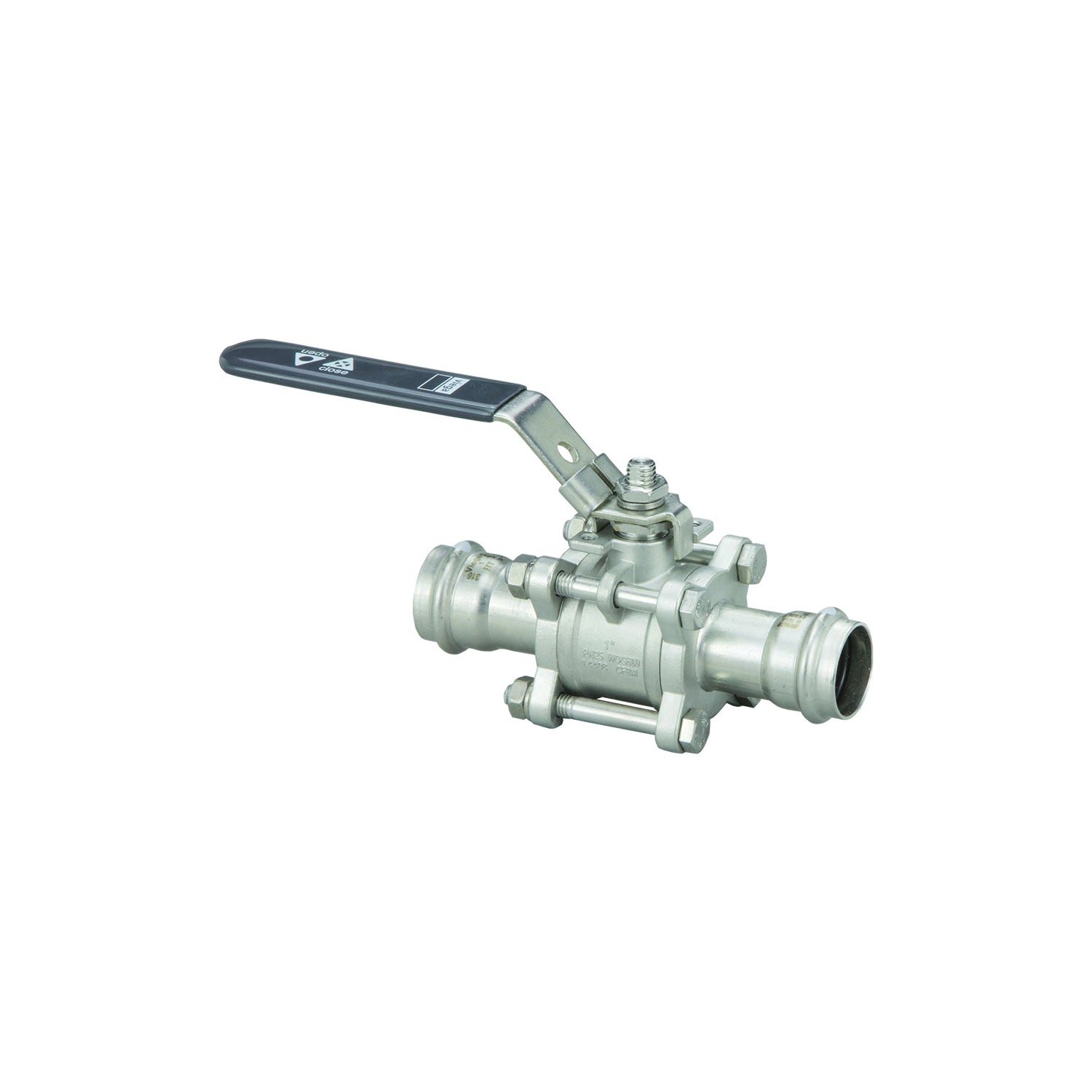

Viega 85134 3-piece Ball Valve 1 Inch Press 316 Ss

Product Description

The VIEGA 85134 is a 3-piece full-port ball valve designed for press-style pipe joining systems. Built on the ProPress platform, this valve features a 316 stainless steel body and FKM softgoods, making it suitable for demanding fluid handling applications where corrosion resistance and high-temperature performance are required. The press end connection style eliminates the need for soldering or threading, reducing installation time and labor on the job site. Rated to 200 psi and capable of handling temperatures from 0 to 250 degrees F, this valve is sized at 1 inch and is installed by licensed plumbers and pipefitters in commercial and industrial piping systems.

This valve is well suited for hydronic heating, cooling, and potable water systems where a reliable shutoff point is needed. The 3-piece design allows the body to be removed from the line without disturbing the end connections, which is particularly useful during system maintenance, cleaning, or valve replacement. The full-port configuration minimizes pressure drop across the valve, making it a practical choice for flow-critical applications in both new construction and retrofit work.

Key Features

• 316 stainless steel body provides strong resistance to corrosion in wet and chemical-exposed environments
• Press end connection style for fast, flame-free installation
• Full-port design minimizes flow restriction and pressure drop
• FKM softgoods rated for temperatures from 0 to 250 degrees F
• 200 psi pressure rating suitable for commercial plumbing and hydronic systems
• 3-piece construction allows valve removal without cutting out end connections

Compatibility

Designed for use with 1-inch press-style piping systems. Intended for installation in systems compatible with ProPress press end connections.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and ASME B31 piping standards. Depressurize and drain the system before installation or service. Use a press tool approved for the ProPress system to make end connections. Do not exceed the rated pressure or temperature limits of 200 psi and 250 degrees F.

Technical Specifications

• Valve Size: 1 inch
• End Style: Press
• Body Material: 316 Stainless Steel
• Softgoods Material: FKM
• Port Type: Full Port
• Pressure Rating: 200 psi
• Temperature Range: 0 to 250 degrees F
• Configuration: 3-Piece

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 85134
