Viega 85012 Propress Pipe Adapter 1/2 Inches Press X Mnpt 304 Stainless Steel Fkm Seal

Product Description

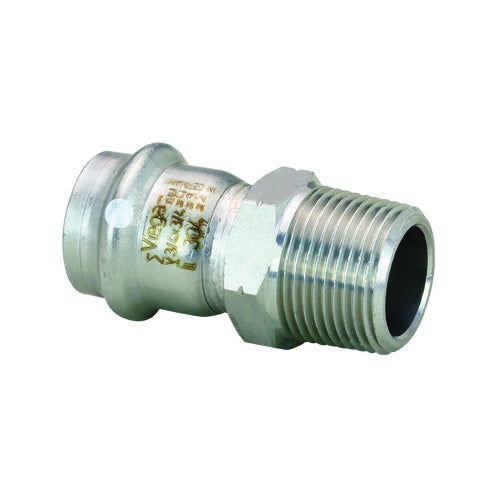

The Viega 85012 ProPress Pipe Adapter is a half-inch press-to-male NPT fitting made from 304 stainless steel. It is designed for use in professional plumbing, mechanical, and fire protection systems where a fast, reliable pipe connection is required. This adapter transitions from a press-style end to a male NPT threaded end, making it easy to connect ProPress piping to threaded components without soldering, welding, or open flame. The press connection system is the original of its kind, and Viega ProPress has been the benchmark for press pipe joining in commercial and industrial applications for decades. Plumbers, pipefitters, and mechanical contractors rely on press fittings to reduce labor time on the job while maintaining consistent, leak-free joints. The 85012 measures 2.11 inches in length and weighs 0.115 pounds, making it compact and easy to handle in tight spaces. The FKM sealing element, identified by a white dot, provides a secure seal rated for operating pressures up to 200 psi and temperatures ranging from 0 to 284 degrees Fahrenheit. FKM seals are well suited for demanding media including additives, sludge, lube oil, slurry, aeration applications, and compressed air systems. The 304 stainless steel body resists corrosion and stands up to harsh environments common in mechanical rooms, industrial facilities, and commercial buildings. This fitting is manufactured in Germany and meets a broad set of industry standards, making it appropriate for a wide range of regulated systems. The Viega 85012 is a go-to component for professionals who need a certified, code-compliant press adapter that installs quickly and performs reliably over the long term.

• Half-inch press x male NPT end style for fast tool-pressed connections to threaded components
• 304 stainless steel body with FKM white dot seal rated to 200 psi and 284 degrees Fahrenheit
• Meets ASME B31, NSF 61, UL, FM, CSA, ABS, and NFPA 13/13D/13R/31/54/58 standards

Product Highlights

The Viega 85012 ProPress Adapter delivers a certified, press-to-threaded transition in a corrosion-resistant 304 stainless steel body. It is built for professional plumbing and mechanical installations where speed, code compliance, and long-term reliability are required.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 85012

Technical Specifications

• Fitting Type: Adapter
• Nominal Size: 1/2 inches
• End Style: Press x MNPT
• Material: 304 Stainless Steel
• Seal Material: FKM
• Includes: FKM Sealing Element (White Dot)
• Length: 2.11 inches
• Weight: 0.115 pounds
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 284 degrees Fahrenheit
• Application: Additives, Sludge, Aeration, Lube Oil, Slurry, Compressed Air
• Country of Origin: Germany
• Standards and Approvals: ASME B31, ABS Listed, CSA Certified, FM Approved, NFPA 13/13D/13R/31/54/58, NSF 61, UL Listed
• Warranty: Limited
