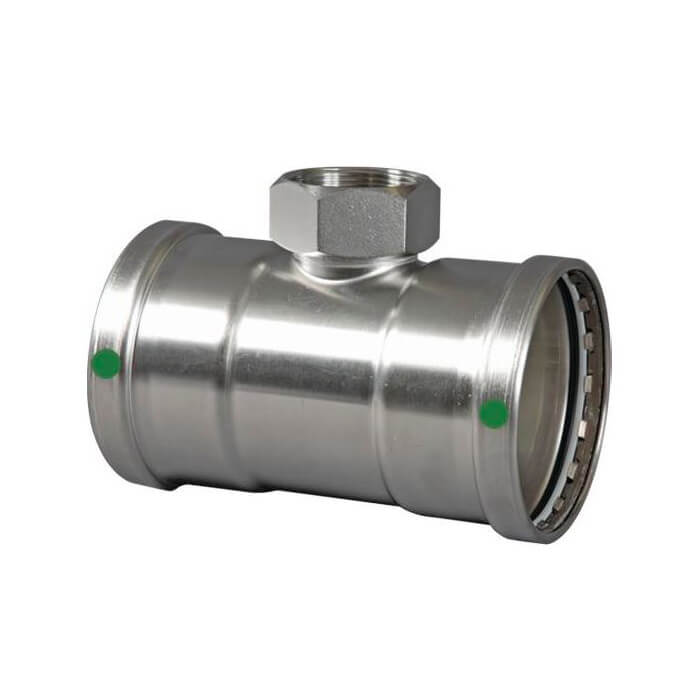

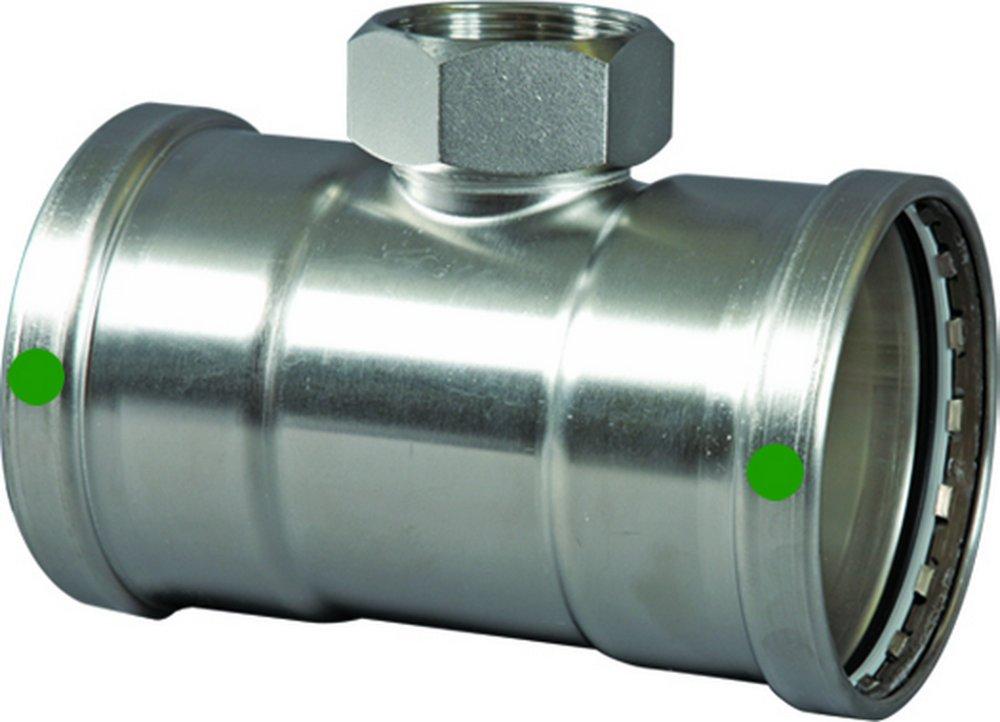

Viega 80950 ProPress Reducing Tee 2-1/2 inches x 2-1/2 inches x 3/4 inches

Product Description

The VIEGA 80950 ProPress reducing tee is constructed from 316 stainless steel. This fitting features a ProPress connection and a reducing tee configuration. Designed for use with Viega ProPress stainless pipe, it ensures a consistent, strong, and reliable watertight seal. It is suitable for potable water applications.

• ProPress connection
• Reducing tee configuration
• 316 stainless steel construction

Product Highlights

The Viega ProPress reducing tee provides a secure connection in less than 7 seconds, minimizing system downtime and ensuring a reliable, watertight seal.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 80950
• Country of Origin: Germany

Technical Specifications

• Brand: VIEGA
• MPN: 80950
• Material: 316 stainless steel
• Application: Potable Water
• Size: 2-1/2 x 2-1/2 x 3/4 inch
• Seal: EPDM
• Connection Type: Press x Press x FPT
• Fitting Shape: Tee
• Material Grade: 316
• O-Ring Material: EPDM
• Fitting Material: Stainless Steel
• Fitting Pipe Size: 3/4 in
• End Connection Type: Press, Threaded
• Compatible Tool Brand: Viega ProPress V2-Actuator, Viega ProPress XL-C Rings
• Fitting Body Material: 316 Stainless Steel
• Compatible Tube Material: Stainless Steel
• Fitting Copper Tube Size: 2 1/2 in
• Fitting Side C Pipe Size: 3/4 in
• Fitting Side A Connection Type: Press-Fit
• Fitting Side B Connection Type: Press-Fit
• Fitting Side C Connection Type: FPT
• Fitting Side A Copper Tube Size: 2 1/2 in
• Fitting Side B Copper Tube Size: 2 1/2 in
• Fitting Side A Tube Outer Diameter: 2 1/2 in
• Fitting Side B Tube Outer Diameter: 2 1/2 in
• Fitting Side C Tube Outer Diameter: 3/4 in
• Includes Pre-Applied Thread Sealant: Yes
• Country of Origin: Germany
• End Style: Press x Press x FNPT
• Fitting/Connector Type: Tee
• Nominal Size: 2-1/2 x 2-1/2 x 3/4 In
• Pressure Rating: 200 psi
• Temperature Rating: 0 To 250 deg F
• Clean Bagged: Yes
• End Connection 1: Press
• End Connection 2: Press
• End Connection 3: FPT
• End Connections: Press x Press x FPT
• FM Approved: No
• Fitting Size 1: 2-1/2
• Fitting Size 2: 2-1/2
• Fitting Size 3: 3/4
• Fitting Sizes: 2-1/2 in x 2-1/2 in x 3/4 in
• Fitting Type: Reducing
• IAPMO Listed: Yes
• Material Type: 316 SS
• Maximum Temperature: 250
• Minimum Temperature: 0
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• Origin: Global
• Pressure - Maximum: 200 psi
• Type: V80950
• UL Listed: No
• Sealing Element: EPDM
• For Tube OD: 2 1/2 in x 2 1/2 in x 3/4 in
• Item: Reducing Tee
• Fitting Side 2 Connection Type: Press-fit
• Fitting Side 1 Connection Type: Press-fit
• For Media Type: Potable Water
• Connector Type: Adapter, Reducer
• Fitting Side 3 Connection Type: FNPT
• Fitting Side 1 Copper Tube Size: 2 1/2 in
• Fitting Side 2 Copper Tube Size: 2 1/2 in
• Fitting Side 3 Pipe Size: 3/4 in
• Domestic/Import: Import
