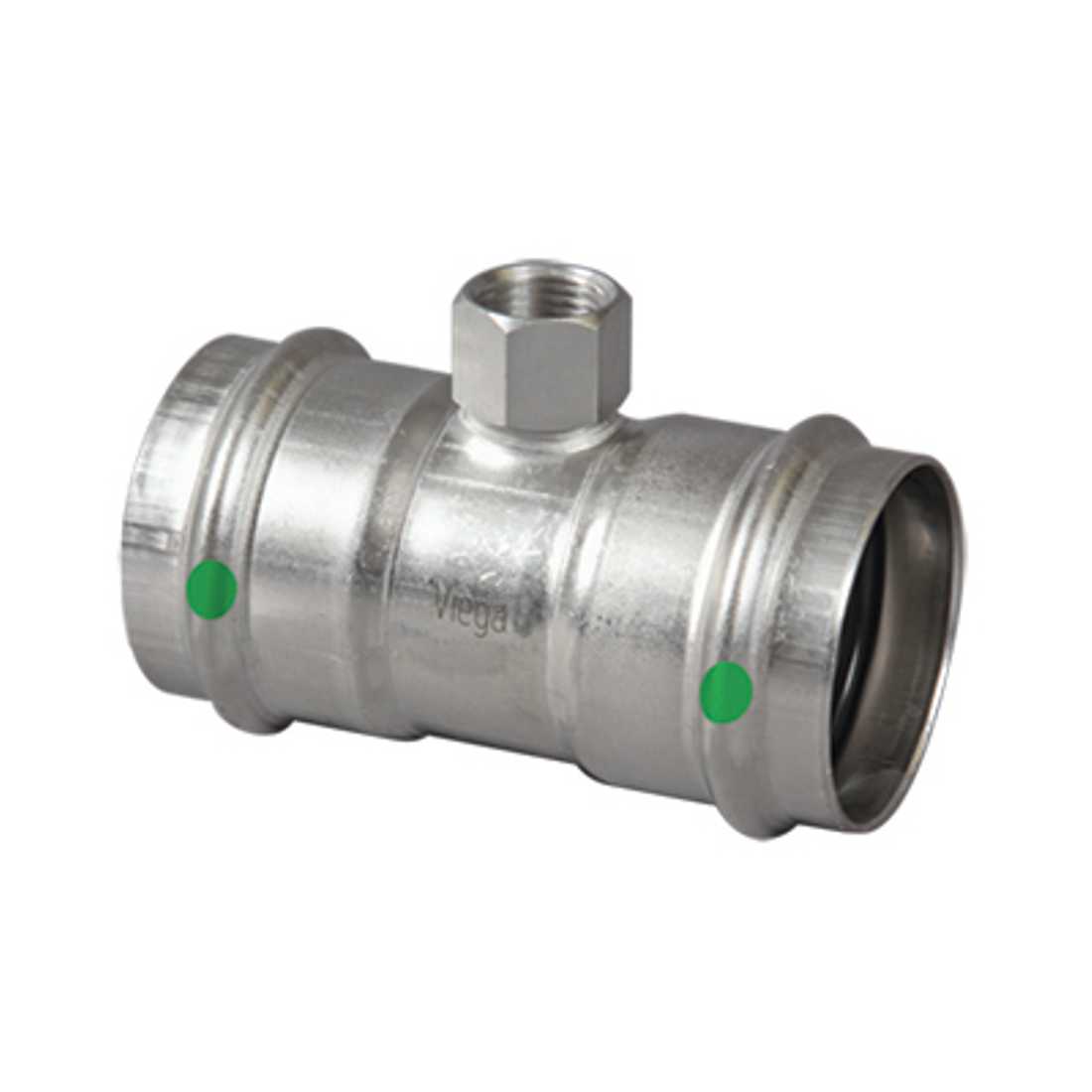

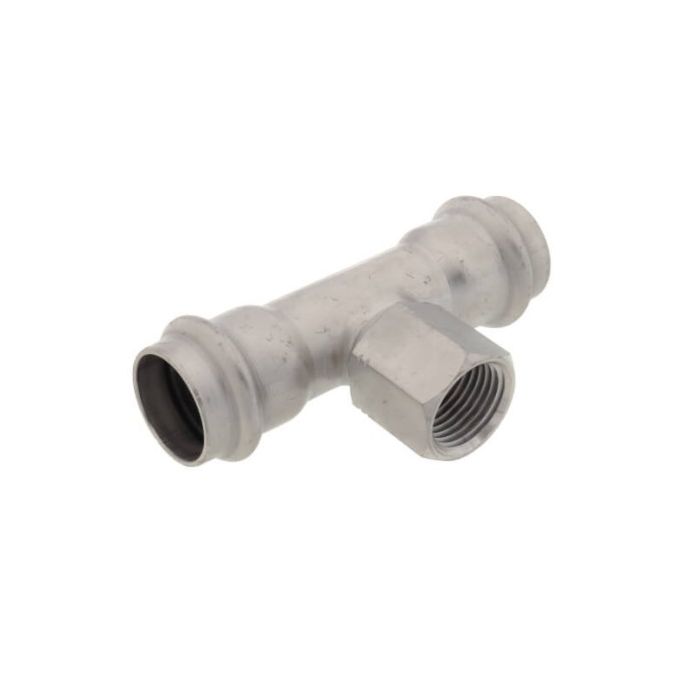

Viega 80940 2 inches x 2 inches x 1 inches ProPress 316 Stainless Steel Reducing Tee

Product Description

The VIEGA 80940 ProPress reducing tee is made from 316 stainless steel with press connections and a female pipe thread. It is designed for use with Viega ProPress stainless pipe. The Viega Smart Connect technology makes secure connections possible in less than 7 seconds.

• Model 4017.2
• For use with Viega ProPress stainless pipe
• 316 stainless steel

Product Highlights

The Viega ProPress system minimizes downtime by allowing for wet connections, and doesn't require welding, grinding, or heavy equipment.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 80940
• Country of Origin: Unknown

Technical Specifications

• Seal: EPDM
• Size: 2" x 2" x 1"
• Connection Type: Press x Press x FPT
• Fitting Type: Tees
• Connection Size: 2' x 2" x 1"
• Item Name: Reducing Tee
• Sub Brand: ProPress 316
• Nominal Size A: 2 inch
• Nominal Size B: 2 inch
• Nominal Size C: 1 inch
• Material: Stainless Steel
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 deg F
• For Use With: Viega ProPress Stainless Tubings
• Applications: For Hydronic Heating (with Glycol), Chilled Water, Low Pressure Steam (15 psi Maximum), Isopropyl Alcohol, Latex Paint, Phosphoric Acid, Compressed Air, Non-Medical Gases, Vacuum (29.2 inch Hg Maximum at 68 Deg F)
• Standards/Approvals: ABS Approved, ASME B31.1, B31.3, B31.9, B31, ASTM A312/A403/A554, IAPMO PS-117, ICC-ES LC1002
• Brand: Viega
• Category: TEE
• Manufacturer (Brand): Viega
• Manufacturer Item Number: 80940
• UPC: 30691514809404
• Weight (lb): 1.126
• UOM: Eaches
• Feature: Genuine OEM
• Package Quantity: Each
