Viega 80870 ProPress 316 Stainless Steel Reducing Tee 1-1/4 inches x 1-1/4 inches x 3/4 inches

Product Description

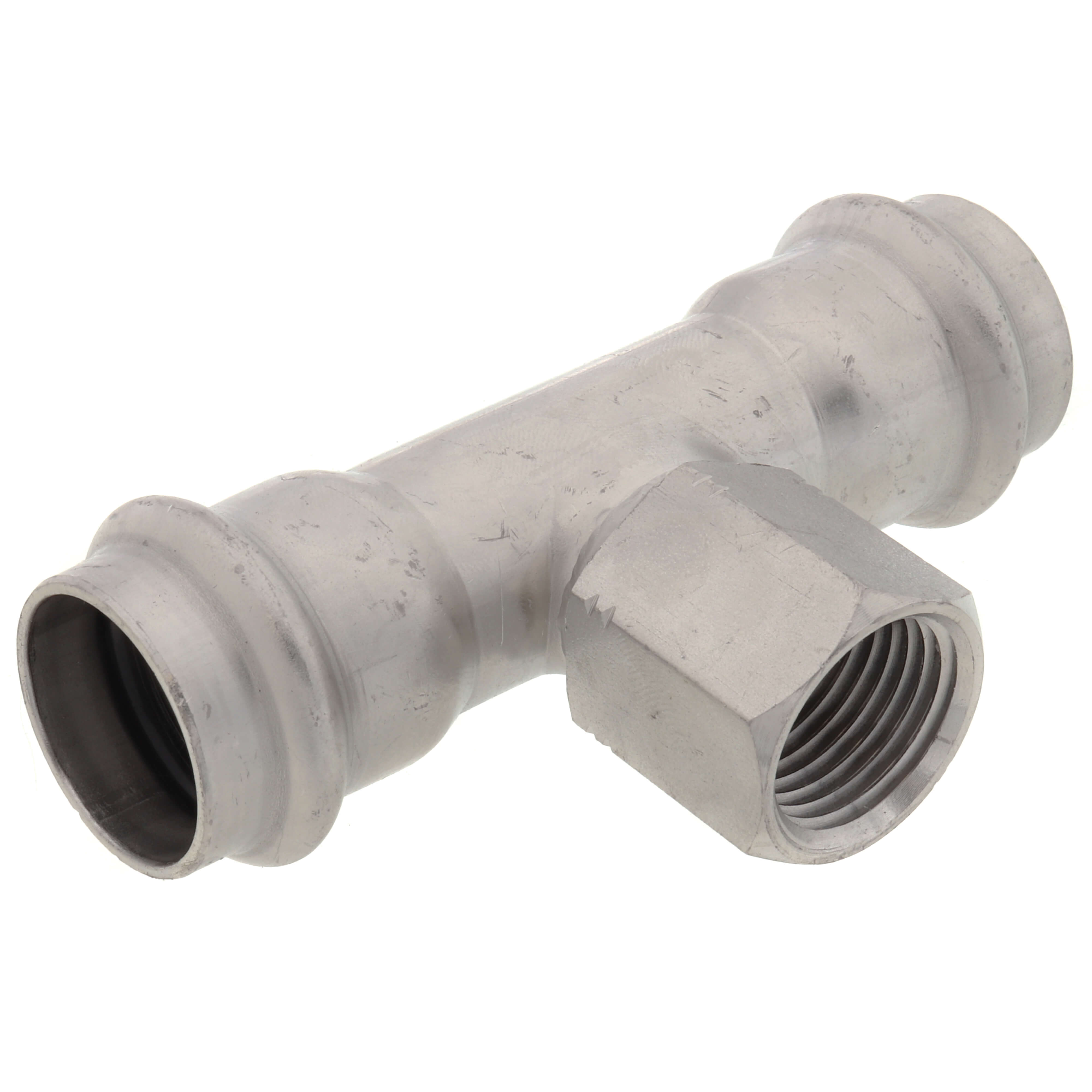

The VIEGA 80870 ProPress 316 stainless steel reducing tee (P x P x FPT) is suitable for use with Viega ProPress stainless pipe. It features a press connection and female pipe thread, with EPDM sealing elements. It is designed for hydronic heating (with glycol), chilled water, and low-pressure steam applications.

• Model 4017.2
• For use with Viega ProPress stainless pipe
• 316 stainless steel

Product Highlights

The Viega ProPress Smart Connect design ensures secure connections in under 7 seconds, minimizing downtime by allowing wet connections without welding or heavy equipment.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 80870

Technical Specifications

• Seal: EPDM
• Size: 1-1/4" x 1-1/4" x 3/4"
• Connection Type: Press x Press x FPT
• Material: 316 stainless steel
• Pressure Rating: 200 psi
• Temperature Rating: 0 - 250 Deg F
• For Use With: Viega ProPress Stainless Tubing
• Applications: For Hydronic Heating (with Glycol), Chilled Water, Low Pressure Steam (15 psi Maximum), Isopropyl Alcohol, Latex Paint, Phosphoric Acid, Compressed Air, Non-Medical Gases, Vacuum (29.2 inch Hg Maximum at 68 Deg F)
• Standards/Approvals: ABS Approved, ASME B31.1, B31.3, B31.9, B31, ASTM A312/A403/A554, IAPMO PS-117, ICC-ES LC1002
• Sub Brand: ProPress 316
• Nominal Size A: 1-1/4 inch
• Nominal Size B: 1-1/4 inch
• Nominal Size C: 3/4 inch
• Hazardous Material: No
• Label Part Dimension: 1-1/4 in x 1-1/4 in x 3/4 in
• Model#: 4017.2
