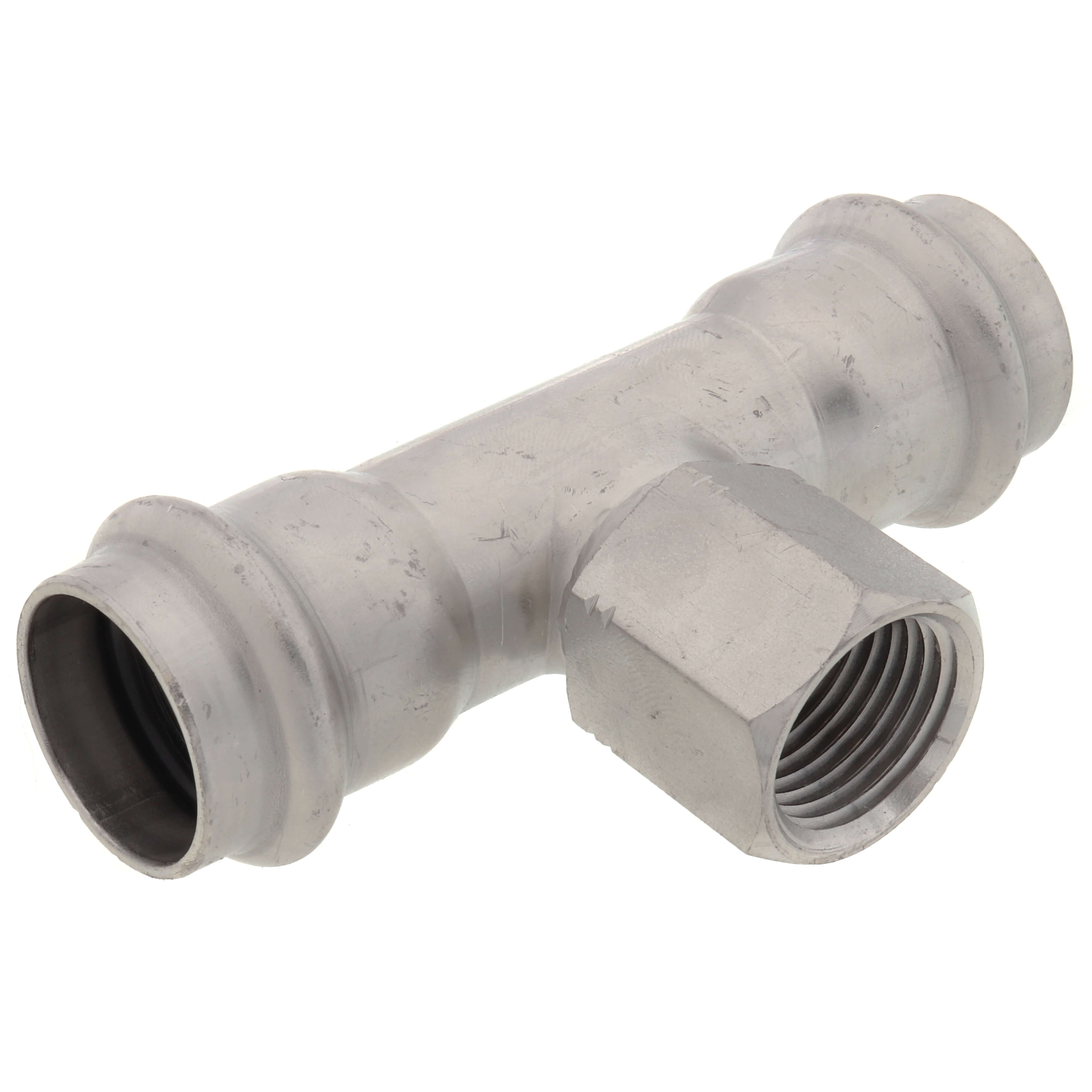

Viega 80850 ProPress Reducing Tee 1 in x 1 in x 3/4 in

Product Description

The VIEGA 80850 ProPress reducing tee is designed for potable water applications. Constructed from 316 stainless steel, this fitting features press-fit connections on two sides and a female pipe thread connection on the third. It is suitable for use with Viega ProPress stainless pipe.

• 316 stainless steel construction
• Press connection, female pipe thread
• EPDM sealing elements

Product Highlights

This reducing tee offers a reliable, watertight seal and is ideal for maintenance and emergency repair jobs.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 80850
• Country of Origin: Germany

Technical Specifications

• MPN: 80850
• Brand: VIEGA
• Seal [Features]: EPDM
• Size [Features]: 1" x 1" x 3/4"
• Connection Type [Features]: Press x Press x FPT
• Item [Specifications]: Reducing Tee
• Application [Specifications]: Potable Water
• For Tube OD [Specifications]: 1 in x 1 in x 3/4 in
• Fitting Shape [Specifications]: Tee
• Material Grade [Specifications]: 316
• O-Ring Material [Specifications]: EPDM
• Copper Tube Size [Specifications]: 1 in x 1 in
• Fitting Material [Specifications]: Stainless Steel
• Fitting Pipe Size [Specifications]: 3/4 in
• End Connection Type [Specifications]: Press, Threaded
• Fitting Body Material [Specifications]: 316 Stainless Steel
• Compatible Tube Material [Specifications]: Stainless Steel
• Fitting Copper Tube Size [Specifications]: 1 in
• Fitting Side C Pipe Size [Specifications]: 3/4 in
• Fitting Side A Connection Type [Specifications]: Press-Fit
• Fitting Side B Connection Type [Specifications]: Press-Fit
• Fitting Side C Connection Type [Specifications]: FPT
• Fitting Side A Copper Tube Size [Specifications]: 1 in
• Fitting Side B Copper Tube Size [Specifications]: 1 in
• Fitting Side A Tube Outer Diameter [Specifications]: 1 in
• Fitting Side B Tube Outer Diameter [Specifications]: 1 in
• Fitting Side C Tube Outer Diameter [Specifications]: 3/4 in
• Includes Pre-Applied Thread Sealant [Specifications]: Yes
• Size: 1 X 1 X 3/4 in
• Fitting/Connector Type: Tee
• Material: 316 Stainless Steel
• End Style: Press x Press x FNPT
• Temperature Rating: 0 To 250 deg F
• Pressure Rating: 200 psi
• Domestic Import: Import
• Country Of Origin: DE
• Manufacturer: Viega
• Category: ProPress Press Fittings
• Size 3: 3/4
• A: 1.13 in
• A1: 0.93 in
• L: 2.04 in
• L1: 1.48 in
• Type: Pipes, Valves & Fittings > Tube Fittings > Press-Fit Tube Fitting
• UPC: 30691514808506
• Condition: New
• Product Type: Tee
• Finish: No Finish Group
• Collection: ProPress 316
• Online Product ID: 4105794
• Dimensions: 1'' x 1'' x 3/4''
• Unit Of Measure: Piece
• Item Name: Reducing Tee
• Sub Brand: ProPress 316
• Fitting Type: Tee
• Nominal Size A: 1 inch
• Nominal Size B: 1 inch
• Nominal Size C: 3/4 inch
• Connection Type: Press|Press|FNPT
• For Use With: Viega ProPress Stainless Tubings
• Applications: For Hydronic Heating (with Glycol), Chilled Water, Low Pressure Steam (15 psi Maximum), Isopropyl Alcohol, Latex Paint, Phosphoric Acid, Compressed Air, Non-Medical Gases, Vacuum (29.2 inch Hg Maximum at 68 Deg F)
• Standards/Approvals: ABS Approved, ASME B31.1, B31.3, B31.9, B31, ASTM A312/A403/A554, IAPMO PS-117, ICC-ES LC1002
