Product Description

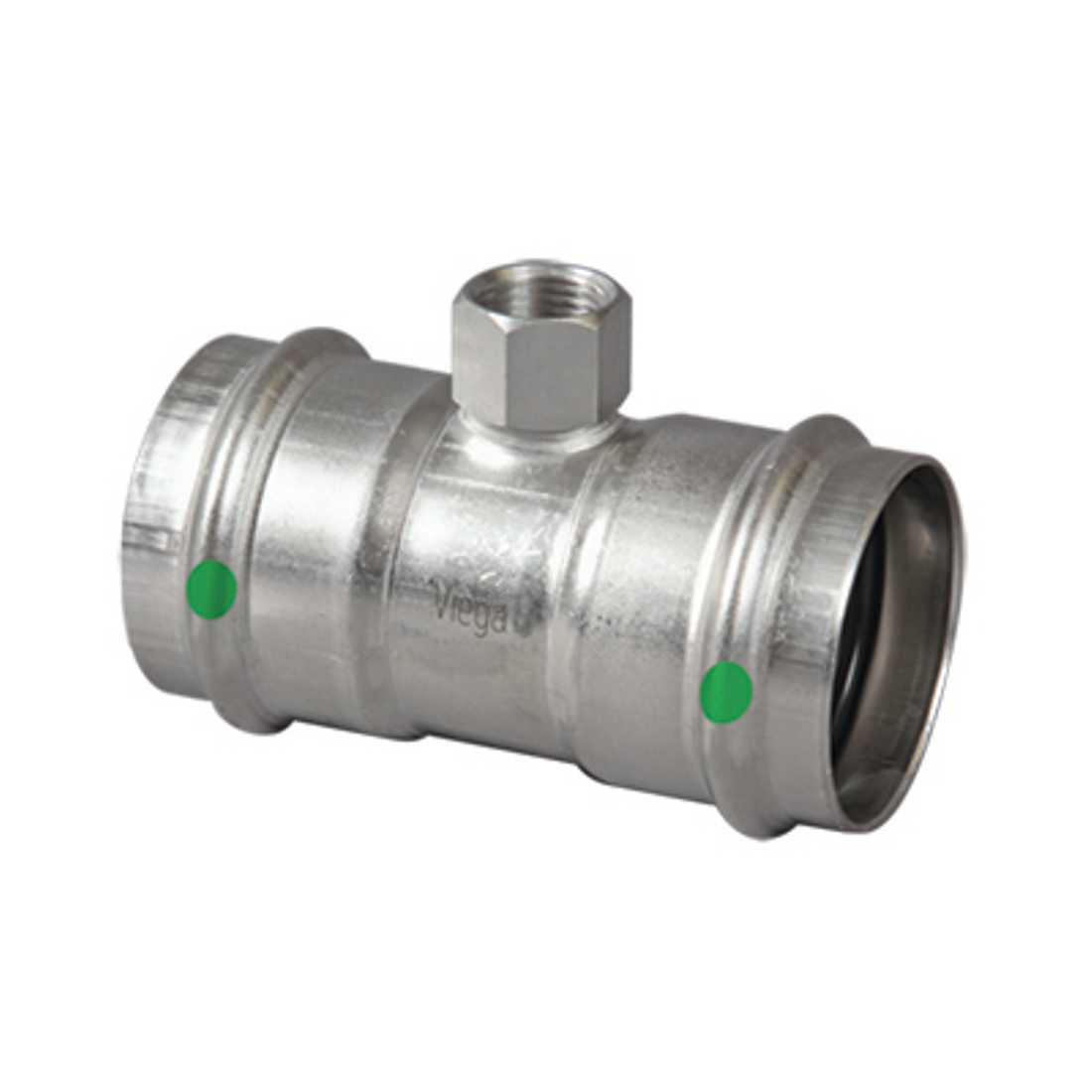

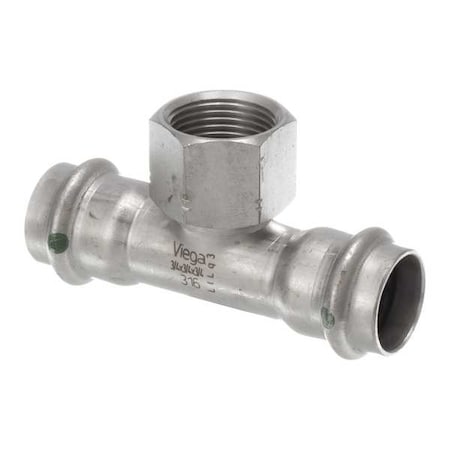

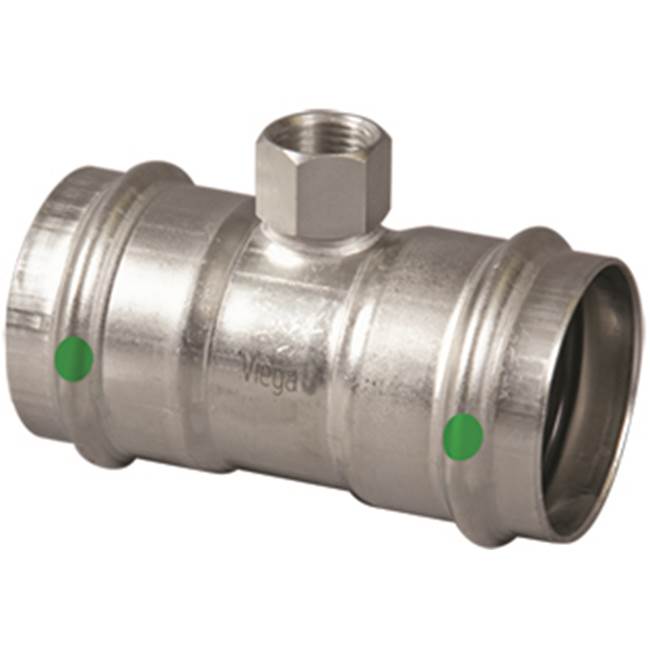

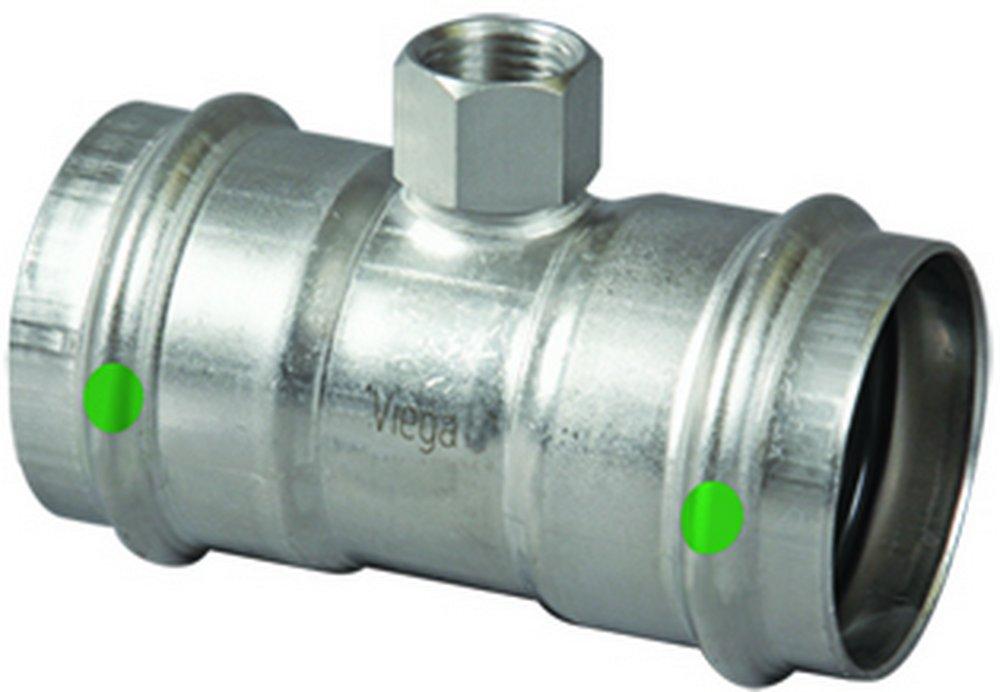

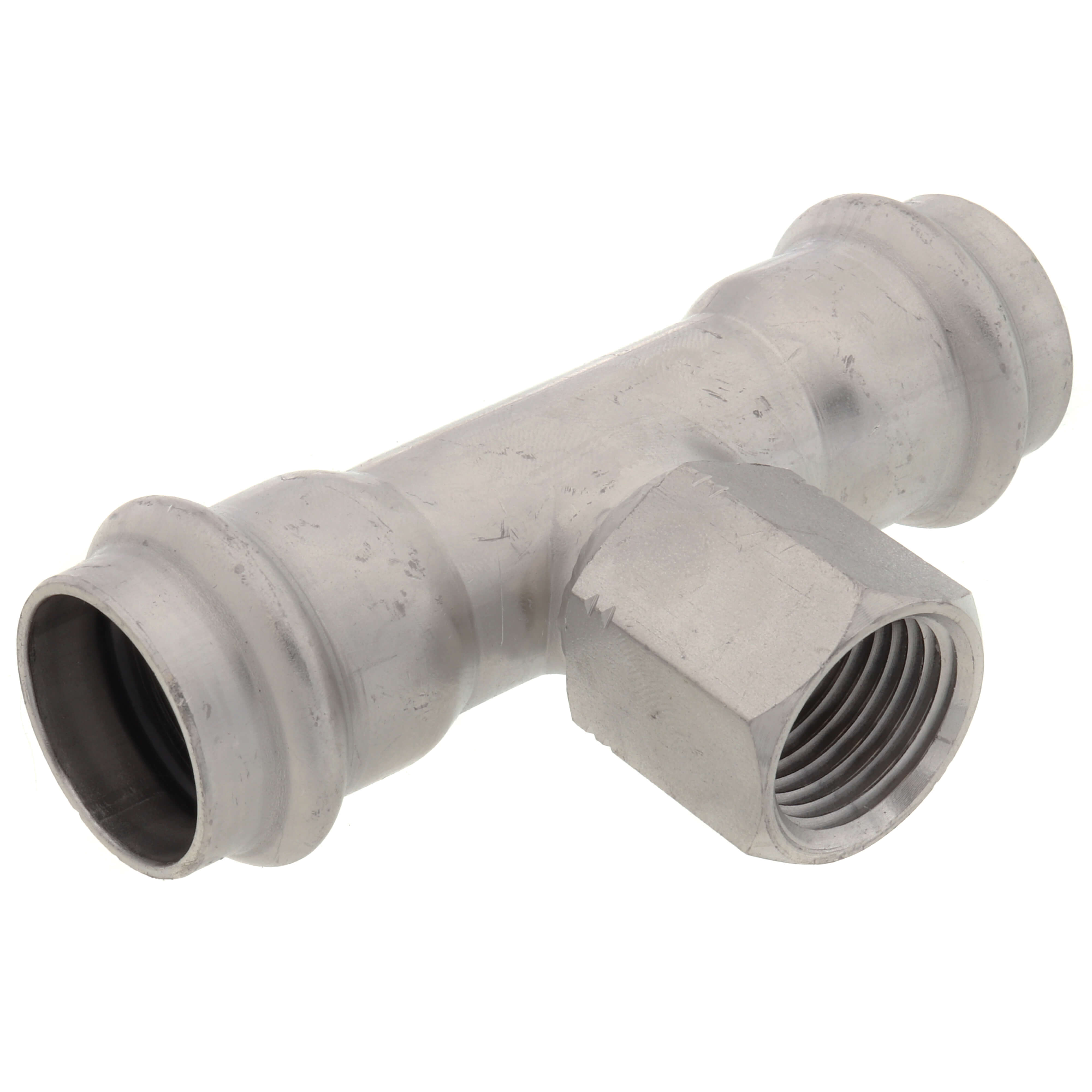

The VIEGA 80830 ProPress reducing tee is constructed from 316 stainless steel with press connection and female pipe thread. This tee is designed for use with Viega ProPress stainless pipe. It utilizes patented Viega Smart Connect technology for secure connections in less than 7 seconds.
- 316 stainless steel construction
- ProPress connection
- Reducing tee design
Product Highlights
The Viega ProPress reducing tee is fast and easy to use, minimizing system downtime by allowing for wet connection. No welding, grinding, or heavy equipment is needed.
Product Information
Standard Information
-
Brand: VIEGA
-
Manufacturer Part Number: 80830
-
Country of Origin: Germany
Technical Specifications
-
Material: 316 stainless steel
-
Size: 3/4" x 3/4" x 3/4"
-
Type: V80830
-
Application: ProPress
-
Seal: EPDM
-
Connection Type: Press x Press x FPT
-
Item [Specifications]: Reducing Tee
-
Application [Specifications]: Potable Water
-
For Tube OD [Specifications]: 3/4 in x 3/4 in x 3/4 in
-
Fitting Shape [Specifications]: Tee
-
Material Grade [Specifications]: 316
-
Stop and Shape [Specifications]: Adapter Tee
-
O-Ring Material [Specifications]: EPDM
-
Copper Tube Size [Specifications]: 3/4 in x 3/4 in
-
Fitting Material [Specifications]: Stainless Steel
-
Fitting Pipe Size [Specifications]: 3/4 in
-
End Connection Type [Specifications]: Press, Threaded
-
Thread Sealant Type [Specifications]: EPDM
-
Fitting Body Material [Specifications]: 316 Stainless Steel
-
Compatible Tube Material [Specifications]: Stainless Steel
-
Fitting Copper Tube Size [Specifications]: 3/4 in
-
Fitting Side C Pipe Size [Specifications]: 3/4 in
-
Fitting Side A Connection Type [Specifications]: Press-Fit
-
Fitting Side B Connection Type [Specifications]: Press-Fit
-
Fitting Side C Connection Type [Specifications]: FPT
-
Fitting Side A Copper Tube Size [Specifications]: 3/4 in
-
Fitting Side B Copper Tube Size [Specifications]: 3/4 in
-
Fitting Side A Tube Outer Diameter [Specifications]: 3/4 in
-
Fitting Side B Tube Outer Diameter [Specifications]: 3/4 in
-
Fitting Side C Tube Outer Diameter [Specifications]: 3/4 in
-
Includes Pre-Applied Thread Sealant [Specifications]: Yes
-
Fitting Type: Reducing
-
Connection Size: 3/4" x 3/4" x 3/4"
-
Product Type: Tee
-
Collection: ProPress
-
End Connection 1: Press
-
End Connection 2: Press
-
End Connection 3: FPT
-
End Connections: Press x Press x FPT
-
FM Approved: No
-
Fitting Size 1: 3/4
-
Fitting Size 2: 3/4
-
Fitting Size 3: 3/4
-
Fitting Sizes: 3/4 in
-
IAPMO Listed: Yes
-
Material Type: 316 SS
-
Maximum Temperature: 250
-
Minimum Temperature: 0
-
NSF: NSF 61, NSF 372
-
NSF Certified: Yes
-
Origin: Global
-
Pressure - Maximum: 200 psi
-
UL Listed: No
-
Manufacturer (Brand): Viega
-
Manufacturer Item Number: 80830
-
UPC: 691514808307
-
Shape: Tee
-
Connection: Female Iron Pipe (FIP)
-
Feature: Genuine OEM
-
Valve Size: 3/4 Inch
-
Package Quantity: Each
-
Finish: No Finish Group
-
Unit Of Measure: Piece
-
Clean Bagged: Yes
