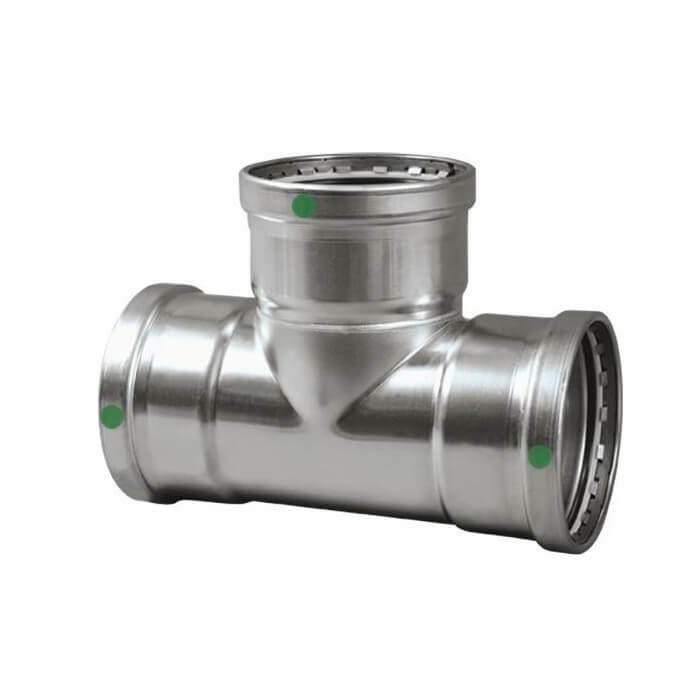

Viega 80800 ProPress 316 Stainless Steel XL Tee 4 inch x 4 inch x 2-1/2 inch

Product Description

The VIEGA 80800 ProPress 316 Stainless Steel XL Tee is designed for use with Viega ProPress stainless pipe. Constructed from 316 stainless steel, it features a press connection and EPDM sealing elements. It is suitable for hydronic heating, chilled water, low pressure steam, and compressed air applications.

• For use with Viega ProPress stainless pipe
• Constructed from 316 stainless steel
• EPDM sealing elements

Product Highlights

The VIEGA ProPress Tee is made from 316 stainless steel with press connections and EPDM sealing elements.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 80800
• Country of Origin: Unknown

Technical Specifications

• Seal [Features]: EPDM
• Size [Features]: 4" x 4" x 2-1/2"
• Connection Type [Features]: Press
• Item Name: Tee
• Sub Brand: ProPress 316
• Nominal Size A: 4 inch
• Nominal Size B: 4 inch
• Nominal Size C: 2-1/2 inch
• Connection Type: P1 x P2 x P3
• Material: 316 stainless steel
• Pressure Rating: 200 psi
• Temperature Rating: 0 - 250 Deg F
• For Use With: Viega ProPress Stainless Tubing
• Applications: For Hydronic Heating (with Glycol), Chilled Water, Low Pressure Steam (15 psi Maximum), Isopropyl Alcohol, Latex Paint, Phosphoric Acid, Compressed Air, Non-Medical Gases, Vacuum (29.2 inch Hg Maximum at 68 Deg F)
• Standards/Approvals: ABS Approved, ASME B31.1, B31.3, B31.9, B31, ASTM A312/A403/A554, IAPMO PS-117, ICC-ES LC1002
