Viega 80690 ProPress Tee 1-1/2 inches x 1-1/2 inches x 1/2 inches

Product Description

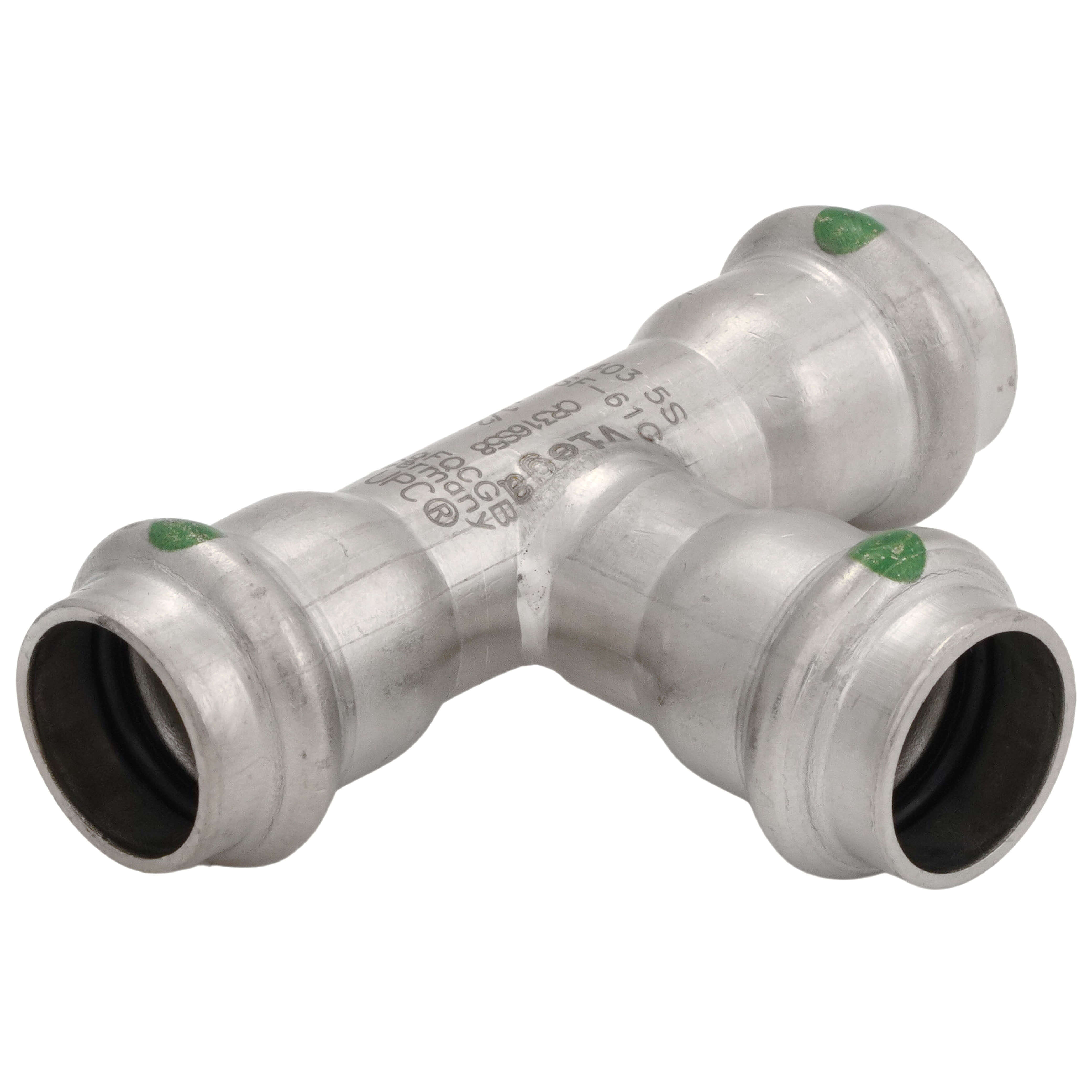

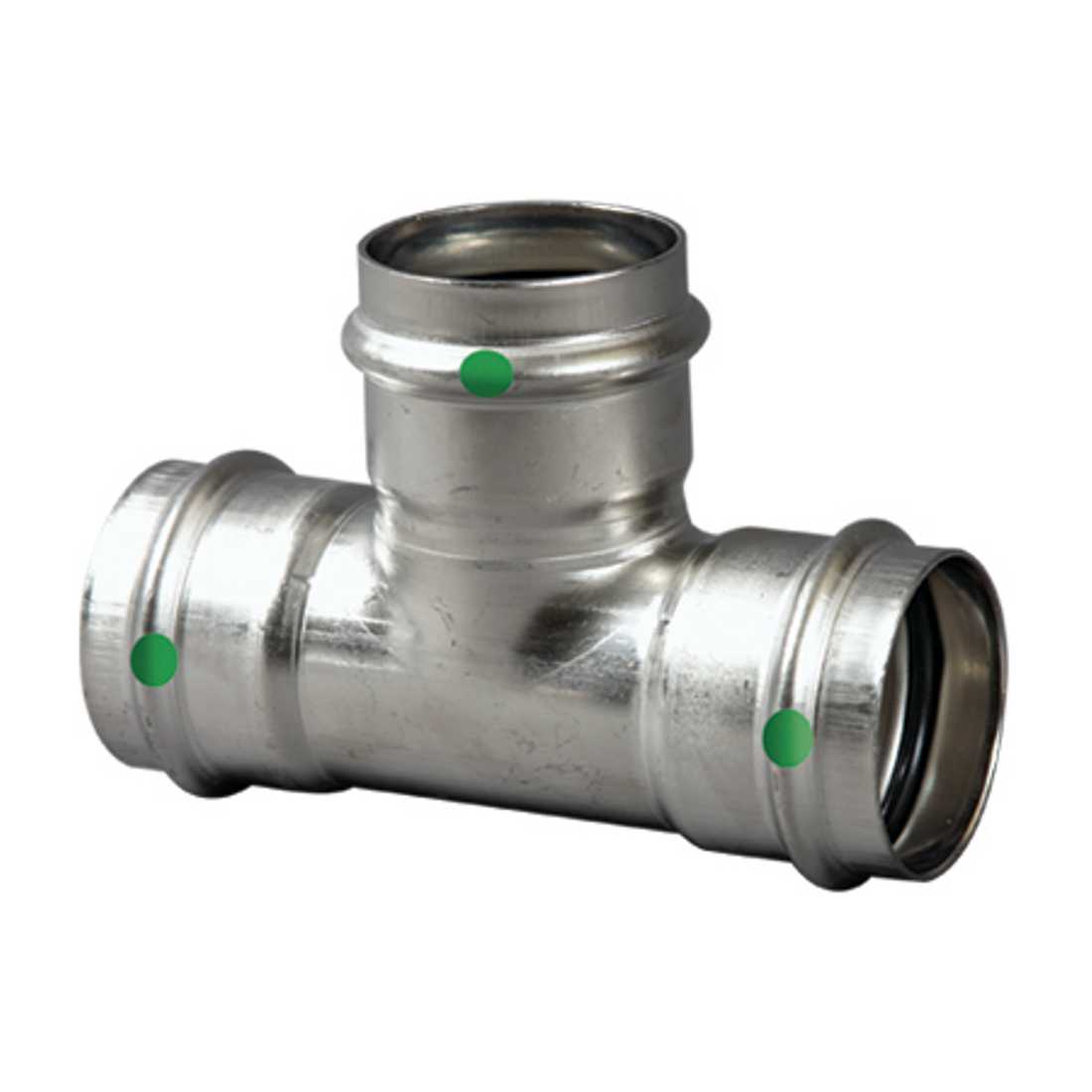

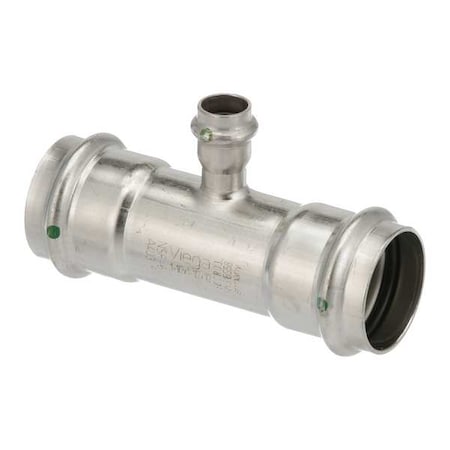

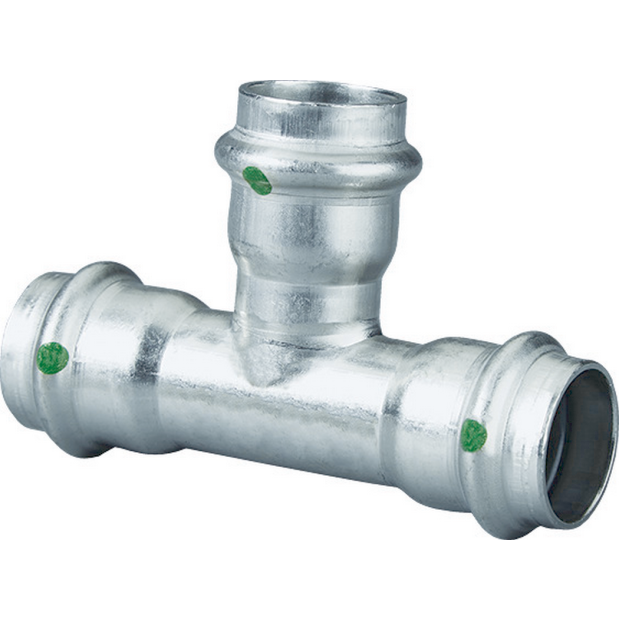

The VIEGA 80690 ProPress Tee is a 1-1/2" x 1-1/2" x 1/2" tee made of 316 stainless steel. It is designed for use with Viega ProPress stainless pipe. The press connection allows for quick and easy installation. This tee is suitable for potable water applications.

• Made of 316 stainless steel
• Features press connection for easy installation
• EPDM sealing elements ensure a reliable seal

Product Highlights

The VIEGA ProPress Tee provides a fast, easy, and reliable method for joining stainless steel pipes in various applications.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 80690
• Country of Origin: Germany

Technical Specifications

• Primary Vendor Part Number: 80690
• Seal: EPDM
• Size: 1-1/2" x 1-1/2" x 1/2"
• Connection Type: Press-Fit x Press-Fit x Press-Fit
• Application: Potable Water
• Fitting Shape: Tee
• Material Grade: 316
• Stop and Shape: Reducing Tee
• O-Ring Material: EPDM
• Copper Tube Size: 1 1/2 in x 1 1/2 in x 1/2 in
• Fitting Material: Stainless Steel
• End Connection Type: Press
• Fitting Body Material: 316 Stainless Steel
• Specific Fitting Shape: Reducing Tee
• Compatible Tube Material: Stainless Steel
• Fitting Copper Tube Size: 1 1/2 in
• Fitting Side A Connection Type: Press-Fit
• Fitting Side B Connection Type: Press-Fit
• Fitting Side C Connection Type: Press-Fit
• Fitting Side A Copper Tube Size: 1 1/2 in
• Fitting Side B Copper Tube Size: 1 1/2 in
• Fitting Side C Copper Tube Size: 1/2 in
• Fitting Side A Tube Outer Diameter: 1 1/2 in
• Fitting Side B Tube Outer Diameter: 1 1/2 in
• Fitting Side C Tube Outer Diameter: 1/2 in
• Includes Pre-Applied Thread Sealant: Yes
• Size 1: 1 1/2
• Size 2: 1 1/2
• Size 3: 1/2
• A: 1.26 in
• A1: 1.39 in
• L: 2.69 in
• L1: 2.14 in
• Weight: 0.687 lb
• MFG #: 80690
• Pipe Size P1 x P2 x P3: 1-1/2" x 1-1/2" x 1/2"
• P1: 1-1/2"
• P2: 1-1/2"
• P3: 1/2"
• End Style: Press
• Fitting/Connector Type: Tee
• Material: 316 Stainless Steel
• Nominal Size: 1-1/2 x 1-1/2 x 1/2 In
• Pressure Rating: 200 psi
• Temperature Rating: 0 To 250 deg F
• Manufacturer (Brand): Viega
• Manufacturer Item Number: 80690
• UPC: 30691514806908
• UOM: Eaches
• Feature: Genuine OEM
• Package Quantity: Each
• For Tube OD: 1 1/2 in x 1 1/2 in x 1/2 in
