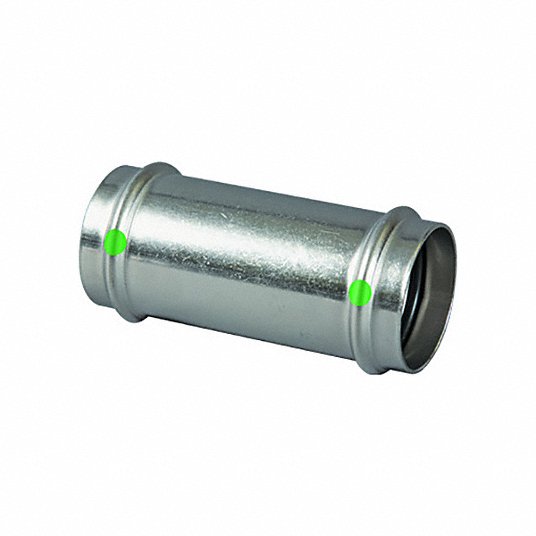

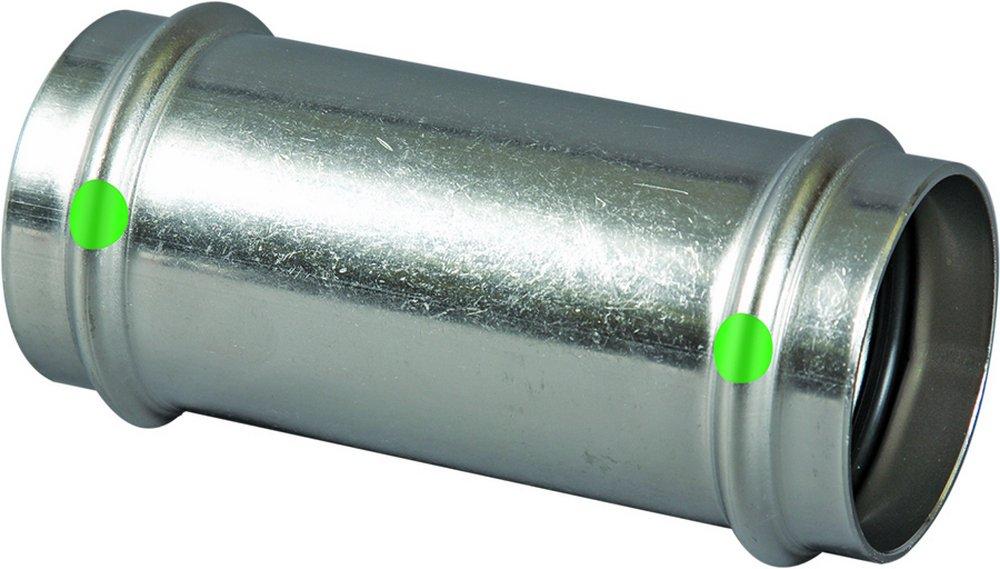

Viega 80325 ProPress Coupling 1-1/4 inch x 1-1/4 inch

Product Description

The VIEGA 80325 ProPress coupling is a 1-1/4" x 1-1/4" coupling made of 316 stainless steel. Viega ProPress is the original press pipe joining system. Pressing pipe connections saves time and labor compared to traditional soldering. It is suitable for potable water applications.

• Smart Connect technology
• For use with Viega ProPress stainless tubing
• Fast and easy to use

Product Highlights

The Viega ProPress coupling features Smart Connect technology and is designed for use with Viega ProPress stainless tubing. It provides a consistent, strong, and reliable watertight seal.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 80325
• Country of Origin: Germany

Technical Specifications

• Coupling: Coupling
• Application: Potable Water
• Fitting Shape: Straight Connector
• Material Grade: 316
• Connection Type: Press-Fit x Press-Fit
• O-Ring Material: EPDM
• Fitting Material: Stainless Steel
• End Connection Type: Press
• Fitting Body Material: 316 Stainless Steel
• Fitting Side A Connection Type: Press-Fit
• Fitting Side B Connection Type: Press-Fit
• Fitting Side A Copper Tube Size: 1 1/4 in
• Fitting Side B Copper Tube Size: 1 1/4 in
• Includes Pre-Applied Thread Sealant: Yes
• Dimensions: 2.52 in L
• End Style: Press
• Fitting/Connector Type: Coupling
• Material: 316 Stainless Steel
• Nominal Size: 1-1/4 In
• Pressure Rating: 200 psi
• Temperature Rating: 0 To 250 deg F
• Size: 1-1/4" x 1-1/4"
• Sealing Element: EPDM
• Type: Straight, Coupling
• Lead-Free: Yes
• Stop: No
• Sub Brand: ProPress 316
• Fitting Type: Coupling
• Nominal Size A: 1-1/4 inch
• Nominal Size B: 1-1/4 inch
• For Use With: Viega - ProPress Stainless Tubing
• Temperature Range: 0 F to 250 F
• For Media Type: Potable Water
• Maximum Operating Pressure: 200 psi
• Clean Bagged: Yes
• Collection: ProPress
• End Connection 1: Press
• End Connection 2: Press
• End Connections: Press x Press
• FM Approved: No
• Fitting Size 1: 1-1/4
• Fitting Size 2: 1-1/4
• Fitting Sizes: 1-1/4 in
• IAPMO Listed: Yes
• Length: 2-27/50
• Material Type: 316
• Maximum Temperature: 250
• NSF: NSF 61, NSF 372
• NSF Certified: Yes
• Origin: Global
• Pressure - Maximum: 200 psi
• UL Listed: No
• UPC: 691514803258
• Applications: For Hydronic Heating (with Glycol), Chilled Water, Low Pressure Steam (15 psi Maximum), Isopropyl Alcohol, Latex Paint, Phosphoric Acid, Compressed Air, Non-Medical Gases, Vacuum (29.2 inch Hg Maximum at 68 Deg F)
• Standards/Approvals: ABS Approved, ASME B31.1, B31.3, B31.9, B31, ASTM A312/A403/A554, IAPMO PS-117, ICC-ES LC1002
