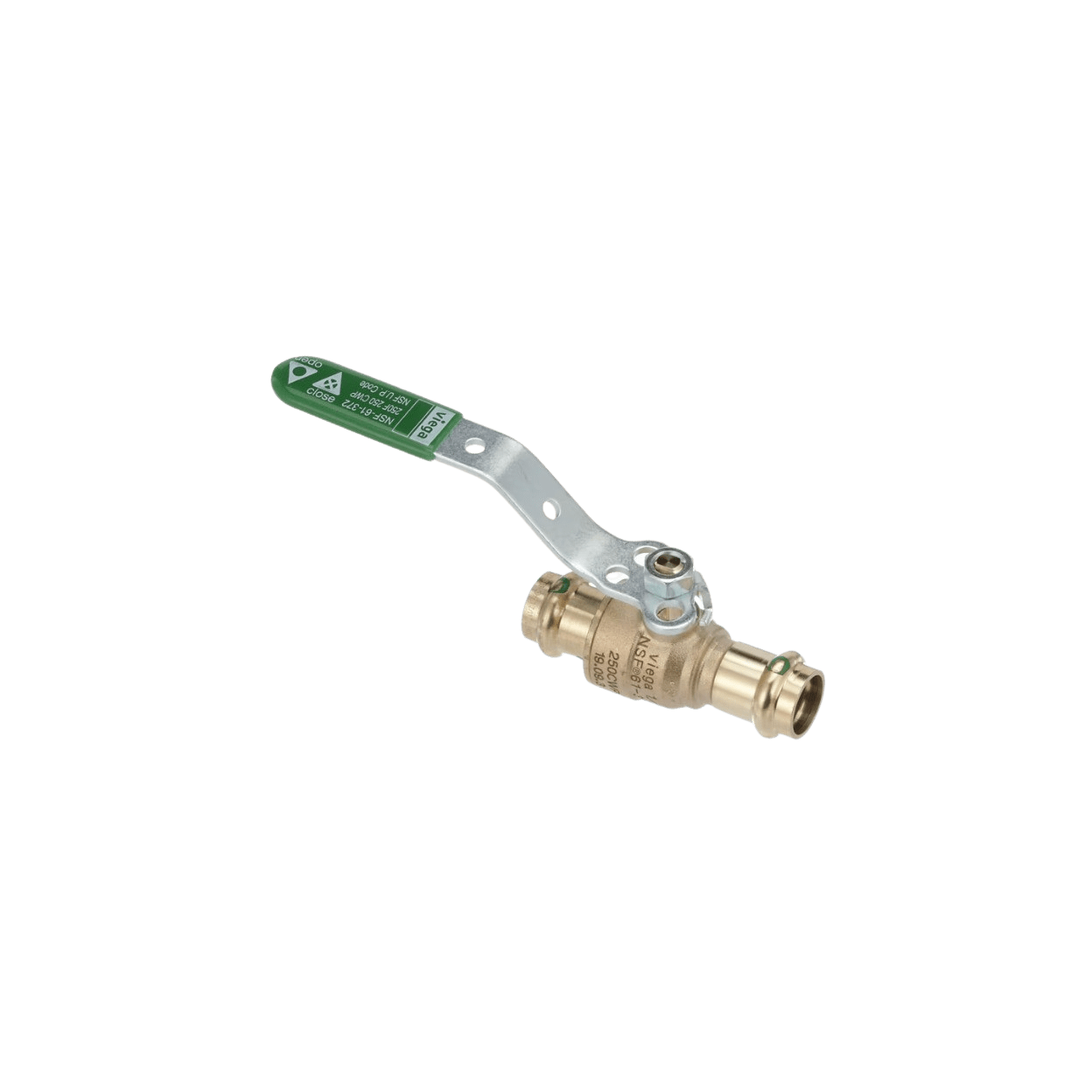

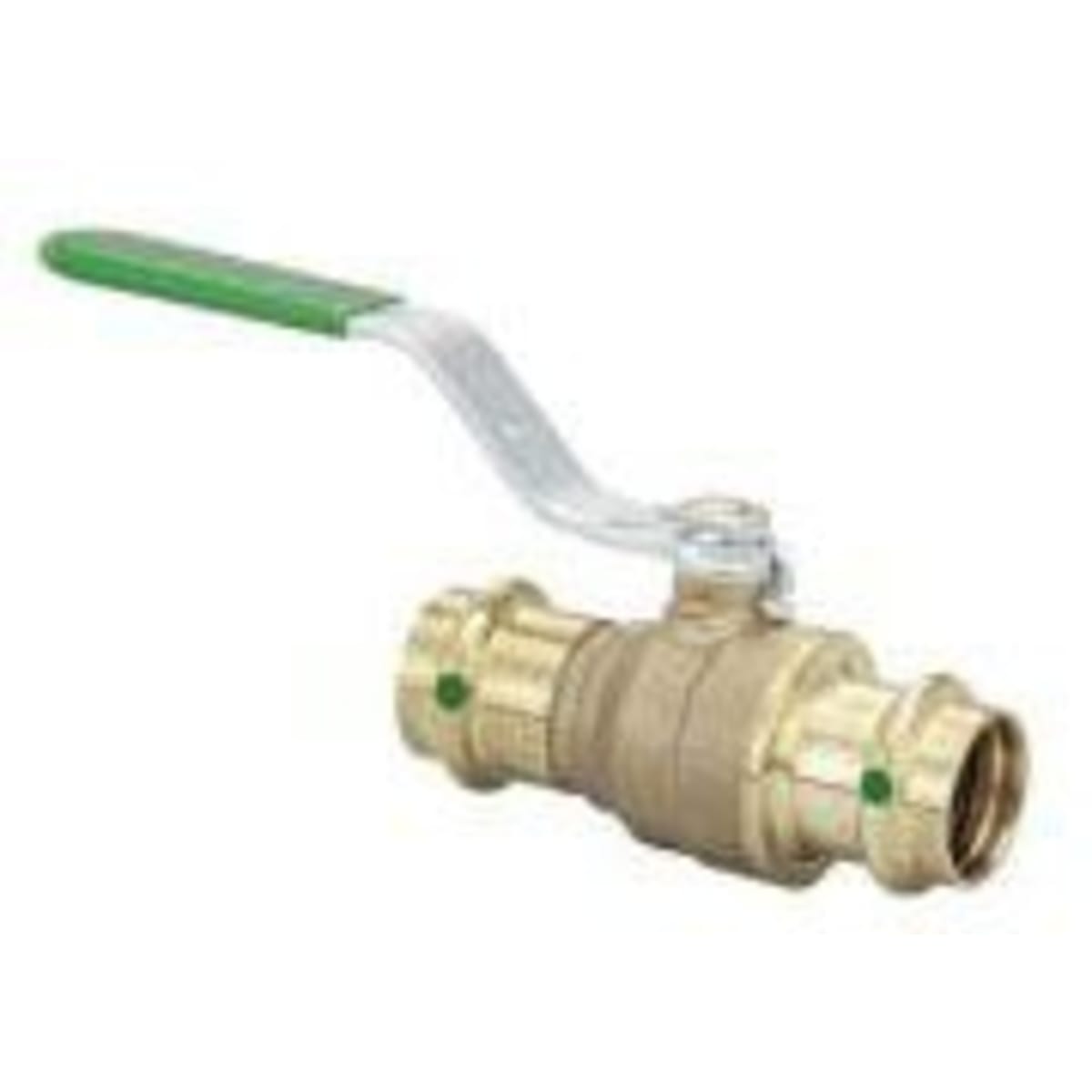

Viega 79950 ProPress 2 x 2, Lead-Free, 316 Stainless Steel Ball Valve

Product Description

The Viega 79950 is a ProPress 2 x 2 lead-free ball valve, designed for high-performance applications. This valve is perfect for press connections in plumbing systems. It features a 316 stainless steel ball for durability and an EPDM seal for reliable performance.

• Robust construction with a zero lead bronze body
• Full port design for optimal flow
• Lockable metal lever handle for easy operation

Product Highlights

The Viega 79950 is ideal for potable water applications. The Smart Connect feature aids in identifying unpressed connections, making installation easier.

Product Information

Standard Information

• Brand: Viega
• MPN: 79950

Technical Specifications

• Connection Type: Press x Press
• Nominal Size: 2 inches
• Maximum Pressure Rating: 250 psi
• Body Material: Zero Lead Bronze
• Ball Material: 316 Stainless Steel
• Seat Material: Reinforced PTFE
• Seal Material: EPDM
• Construction Type: 2-Piece
• Overall Dimensions: 6.36 inches Length x 3.32 inches Height
• Temperature Rating: 0 - 250 degrees Fahrenheit
• Handle Type: Lever
• Standards/Approvals: IAPMO/ANSI Z1157, NSF 61 and 372
