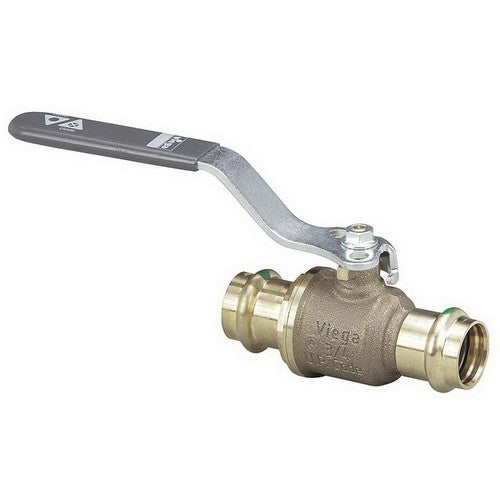

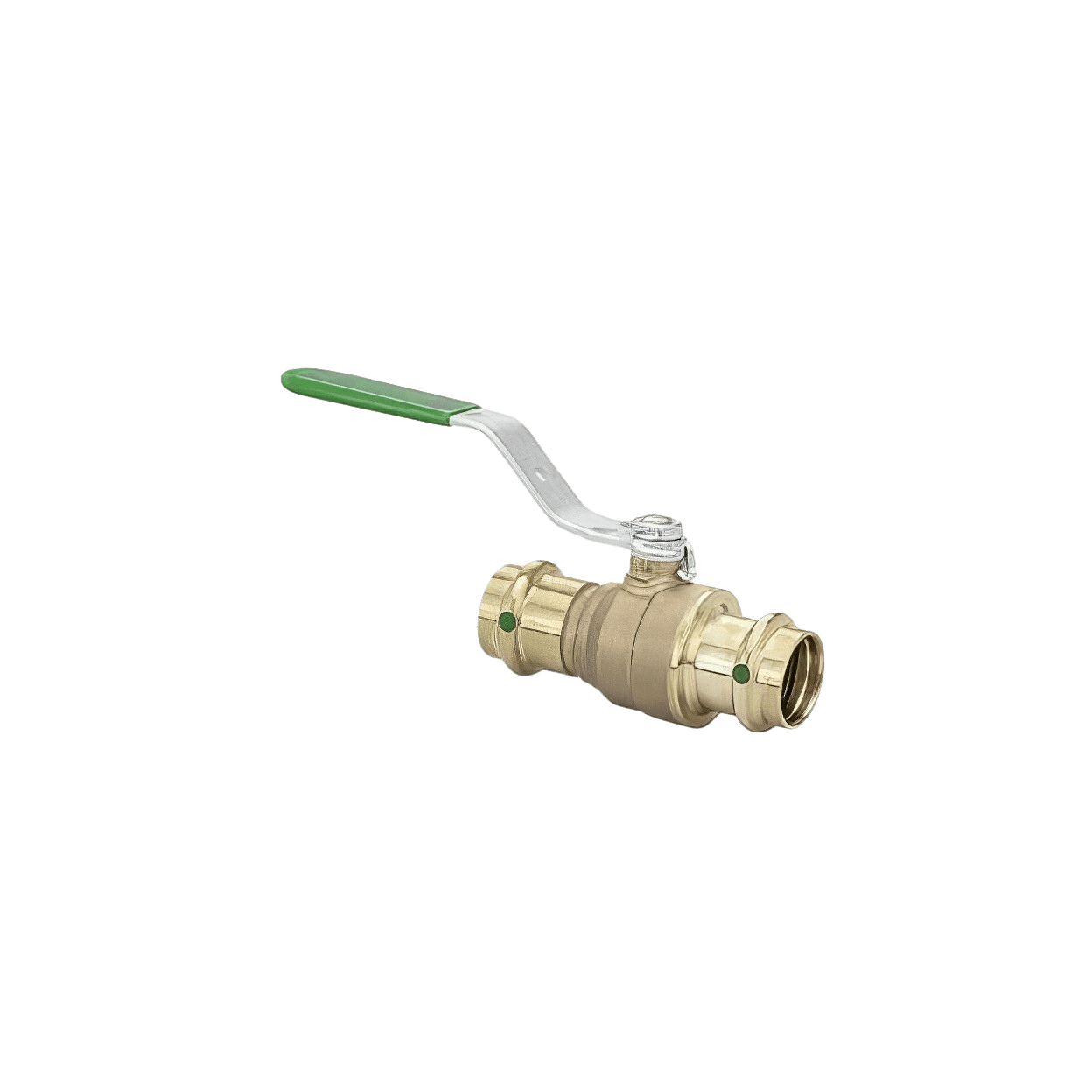

Viega 79943 ProPress 1-1/2 Inch Bronze Full Port Ball Valve with Stainless Steel Ball and Stem, Press x Press

Product Description

The Viega 79943 is a bronze full port ball valve designed for press connections. This valve includes a stainless steel ball and stem, ensuring durability and reliability in various applications. It has a nominal size of one and a half inches and is suitable for use with water, oil, and gas media.

• Full port design for maximum flow.
• Lead free construction.
• Temperature rating from zero to two hundred fifty degrees Fahrenheit.

Product Highlights

This valve is built with reinforced PTFE seats and EPDM seals for optimal performance. It also features a lockable metal handle for easy operation.

Product Information

Standard Information

• Brand: Viega
• MPN: 79943

Technical Specifications

• Type: Full Port, Lead Free
• Nominal Size: 1-1/2 inch
• Connection Type: Press x Press
• Media: Water, Oil, and Gas
• Opening Size: 1.5 inch
• Body Material: B584 C87700 Bronze
• Seat: Reinforced PTFE
• Ball Material: A276 Type 316 Stainless Steel
• Seal: EPDM
• Stem: A276 Type 316 Stainless Steel
• Actuation/Operator: Lockable Metal Handle
• Dimensions: Height 3 inch; Length 2.74 inch; Width 1.32 inch
• Temperature Rating: 0 to 250 Degrees Fahrenheit
