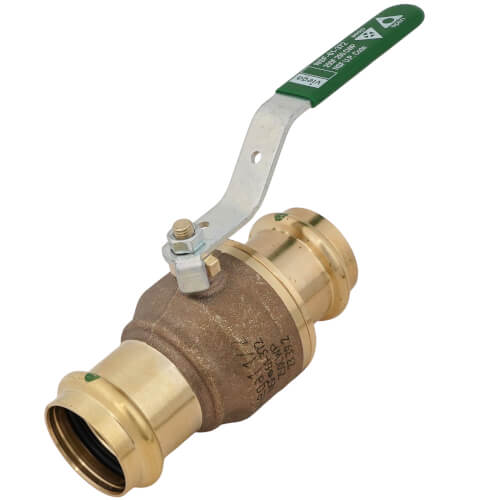

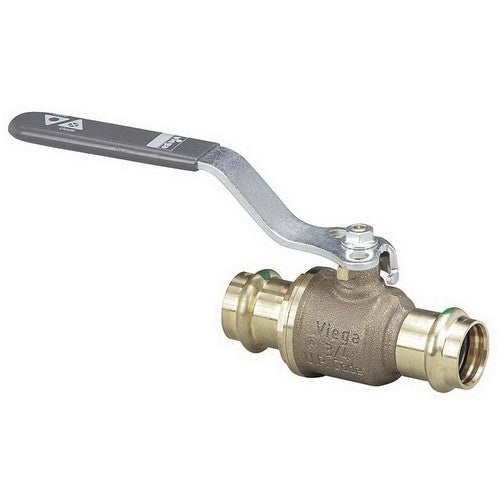

Viega 79940 ProPress Ball Valve 1-1/2 inch Press x Press

Product Description

The Viega 79940 ProPress Ball Valve is designed for reliable and efficient use in various plumbing applications. Made from zero lead bronze, this ball valve ensures safety and durability. Featuring a press x press connection, it is suitable for potable water, oil, and gas media.

• Full port design
• Lockable metal handle
• Reinforced PTFE seat

Product Highlights

Suitable for a wide range of media and applications, the Viega 79940 ProPress Ball Valve offers excellent performance and ease of use. Built with quality materials, it ensures long-lasting functionality.

Product Information

Standard Information

• Brand: Viega
• MPN: 79940
• Model: ProPress Ball Valve
• Material: Zero Lead Bronze

Technical Specifications

• Nominal Size: 1-1/2 inch
• Connection Type: Press x Press
• Max Pressure: 600 psi
• Operating Pressure: 250 psi
• Temperature Rating: 0 to 250 Degrees F
• Ball Material: A276 Type 316 Stainless Steel
• Body Material: B584 C87700 Bronze
• Seat Material: Reinforced PTFE
• Seal Material: EPDM
• Stem Material: Eco Brass C69300
• Actuation: Lockable Metal Handle
• Dimensions: Height: 3 inches; Length: 2.74 inches; Length 1: 2.74 inches; Length 2: 6.10 inches; Dimension Z: 1.32 inches; Dimension Z1: 1.32 inches
