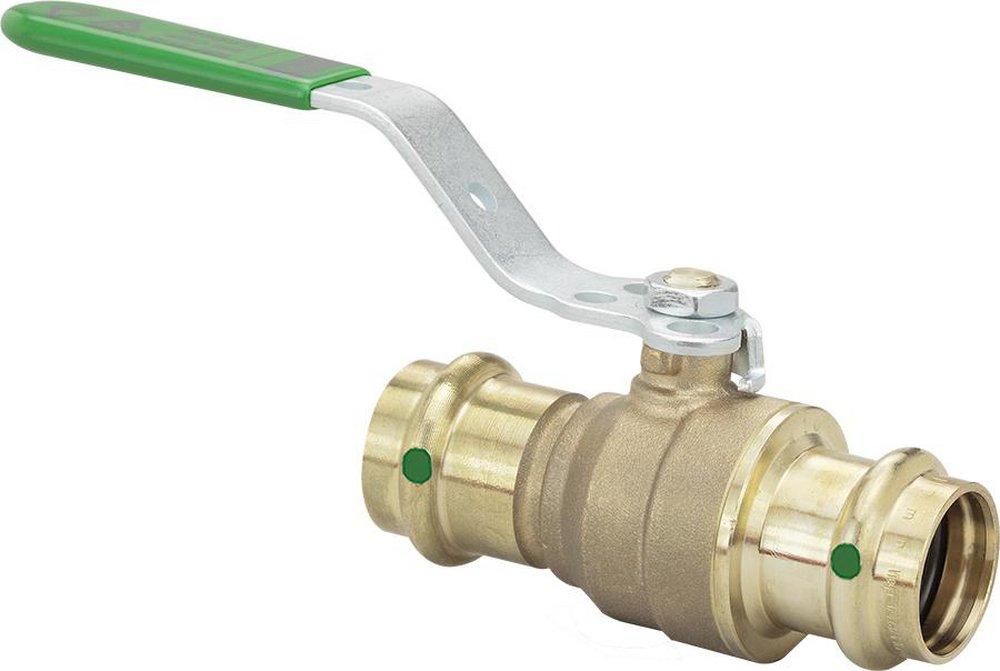

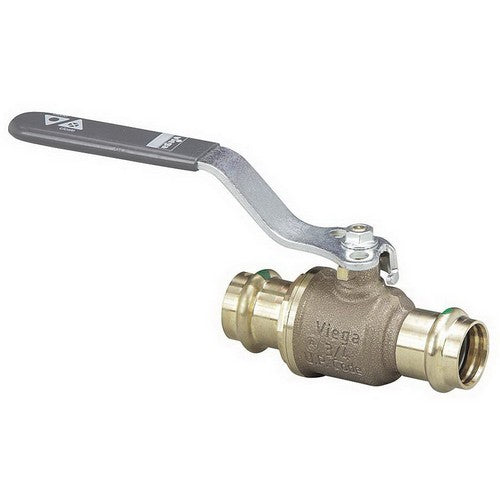

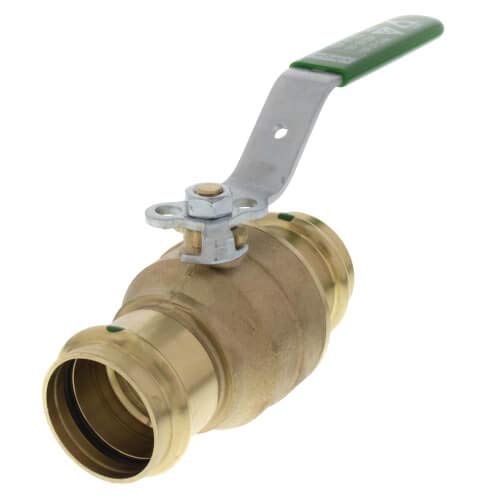

Viega 79935 ProPress 1-1/4 in. Bronze Press 250# Ball Valve

Product Description

The Viega 79935 ProPress 1-1/4 inch Bronze Ball Valve features advanced Smart Connect technology, making it suitable for potable water applications. Designed for press connections, this ball valve is lead-free and equipped with a lockable metal handle and a full port, ensuring efficient operation.

• For potable water applications
• Smart Connect technology
• Lead-free Bronze material

Product Highlights

This 1-1/4 inch ball valve uses EPDM sealing elements and a stainless steel ball, making it reliable for water, oil, and gas media. With its press x press connection type and zero lead construction, it ensures both ease of use and safety.

Product Information

Standard Information

• Type: Full Port, Lead Free
• Nominal Size: 1-1/4 inch
• Connection Type: Press x Press

Technical Specifications

• Media: Water, Oil, and Gas
• Opening Size: 1.25 inch
• Body Material: B584 C87700 Bronze
• Seat: Reinforced PTFE
• Ball Material: A276 Type 316 Stainless Steel
• Seal: EPDM
• Stem Material: Eco Brass C69300
• Actuation/Operator: Lockable Metal Handle
• Temperature Rating: 0 to 250 Deg F
• Dimensions: Dimension H: 2.67 inches; Dimension L: 2.17 inches; Dimension L1: 2.15 inches; Dimension L2: 5.75 inches; Dimension Z: 1.14 inches; Dimension Z1: 1.12 inches
