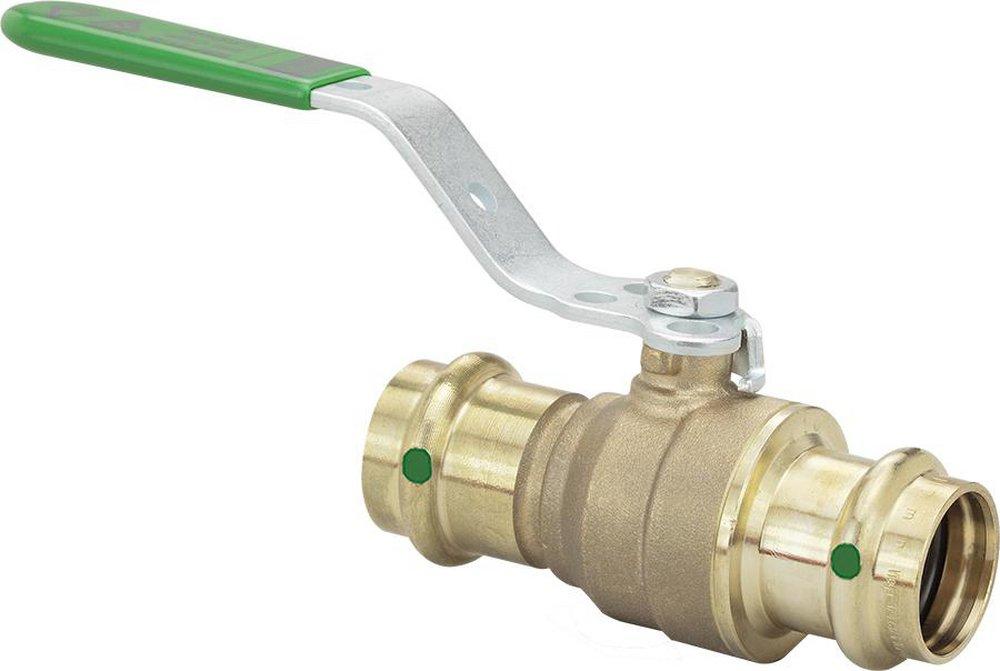

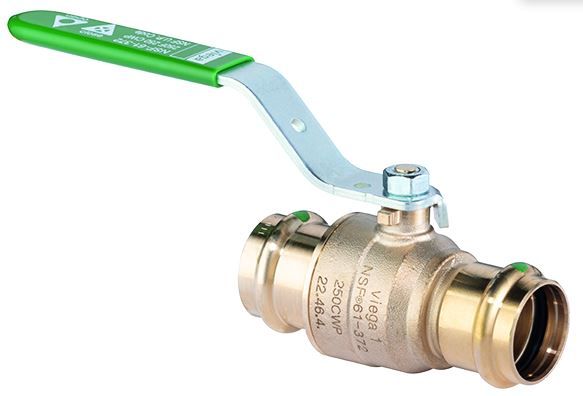

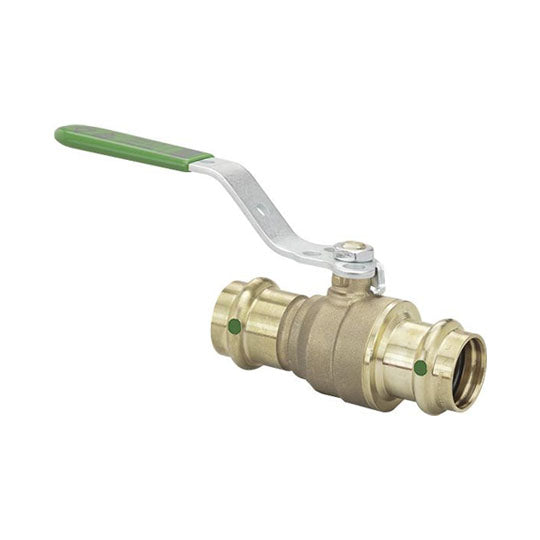

Viega 79920 ProPress 1/2 in. Bronze Press 250# Ball Valve

Product Description

The Viega ProPress Ball Valve, MPN 79920, is suitable for use in potable water applications. This valve has a robust bronze construction and is designed for easy installation with a press connection. The valve features Smart Connect technology, which helps installers identify unpressed fittings during pressure tests, ensuring reliability in plumbing systems.

• Lead-free materials for safe water delivery
• Lockable metal handle for secure operation
• Stainless steel ball for enhanced corrosion resistance

Product Highlights

Viega ProPress Ball Valve offers a full port design, which allows for maximum fluid flow. The valve can handle water, oil, and gas media.

Product Information

Standard Information

• Brand: Viega
• MPN: 79920

Technical Specifications

• Type: Full port, Lead free
• Nominal Size: 1/2 inch
• Connection Type: Press x Press
• Operating Pressure: 250 psi
• Max Pressure: 600 psi
• Media: Water, Oil, Gas
• Opening Size: 0.5 inch
• Body Material: B584 C87700 Bronze
• Ball Material: A276 Type 316 Stainless Steel
• Seat Material: Reinforced PTFE
• Seal Material: EPDM
• Stem Material: Eco Brass C69300
• Actuation/Operator: Lockable Metal Handle
• Temperature Rating: 0 to 250 Deg F
• Dimensions: H: 1.97 inch; L: 1.57 inch; L1: 1.57 inch; L2: 4.57 inch; Z: 0.75 inch; Z1: 0.75 inch
