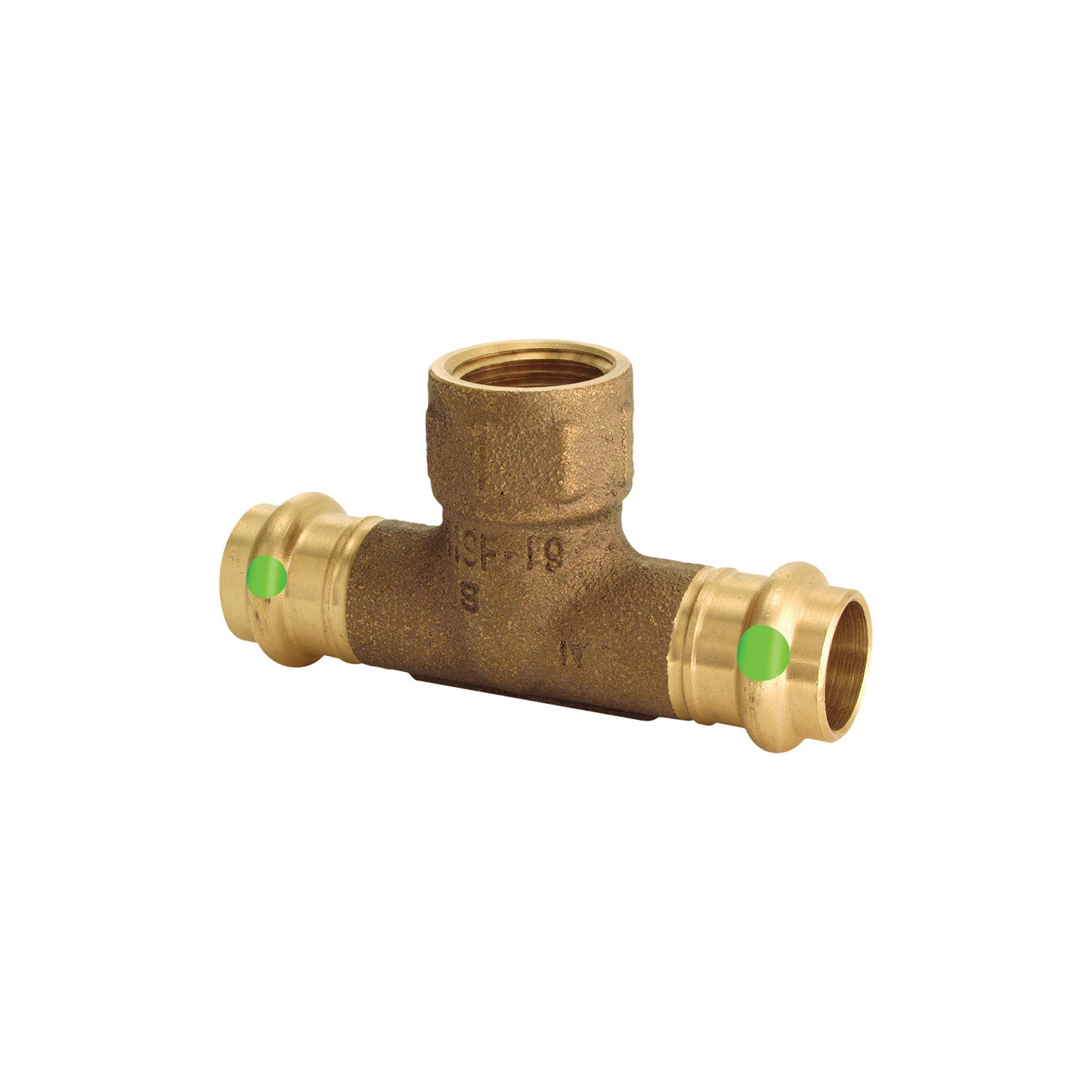

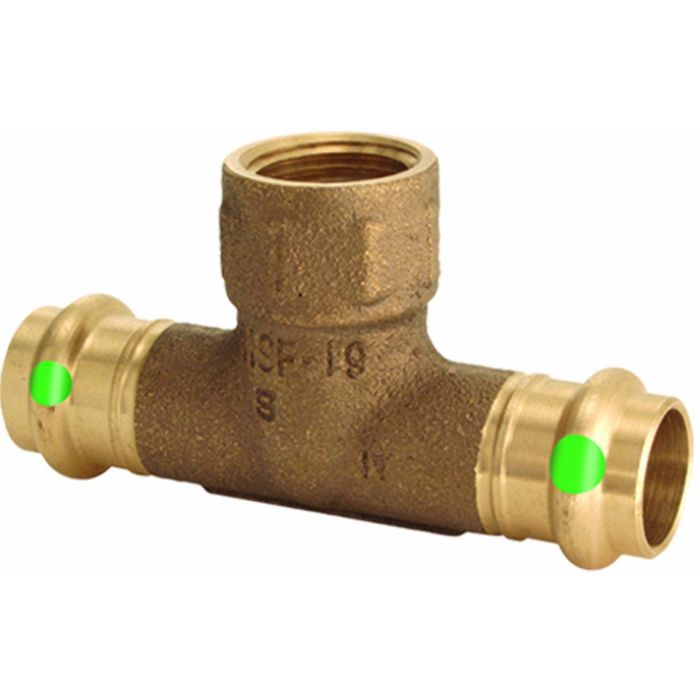

Viega 79765 Propress Model 2917.2ZL Lead Free Bronze Tee 1 X 1 X 3/4 Inches Press X Press X Fnpt Epdm Seal

Product Description

The Viega 79765 is a ProPress Model 2917.2ZL lead free bronze pipe tee designed for professional plumbing and mechanical installations. This fitting connects 1 inch by 1 inch by 3/4 inch nominal pipe using a Press x Press x FNPT end style configuration. The two press ends create fast, secure connections without open flame or soldering. The female NPT threaded end allows easy integration with threaded pipe, valves, and other threaded components. This tee is built from bronze and meets lead free standards for potable water systems. It is a reliable choice for HVAC technicians, plumbers, and mechanical contractors who need a durable, code-compliant fitting. The EPDM sealing element, identified by a green dot, provides a watertight seal rated for pressures up to 200 psi and temperatures from 0 to 250 degrees Fahrenheit. Viega ProPress is the original press fitting system, and it is trusted across a wide range of commercial and residential applications. This tee is approved for use in potable water, hydronic heating, chilled water, compressed air, non-medical gases, fire sprinkler, and low pressure steam systems. Press fittings eliminate the need for soldering, brazing, or threading on the press side, which reduces labor time and eliminates open flame hazards on the job site. The fitting ships from Germany and carries CSA, FM, NSF 61, and UL certifications. Plumbing contractors and HVAC installers rely on Viega ProPress for fast, consistent, and code-compliant connections across a wide variety of pipe materials and system types.

• Lead free bronze construction rated for potable water and hydronic systems
• Press x Press x FNPT configuration allows fast press connections plus threaded integration
• EPDM green dot seal rated to 200 psi and 250 degrees Fahrenheit

Product Highlights

The Viega 79765 ProPress bronze tee delivers fast, flame-free pipe connections in a 1 x 1 x 3/4 inch configuration with a female NPT outlet. It meets NSF 61, CSA, FM, and UL standards for use across multiple system types including potable water, HVAC, and fire sprinkler applications.

Product Information

Standard Information

• Brand: VIEGA
• Manufacturer Part Number: 79765

Technical Specifications

• Series: Model 2917.2ZL
• Fitting Type: Tee
• Nominal Size: 1 x 1 x 3/4 inches
• End Style: Press x Press x FNPT
• Material: Bronze
• Seal Material: EPDM
• Pressure Rating: 200 psi
• Temperature Rating: 0 to 250 degrees Fahrenheit
• Weight: 0.493 pounds
• Application: Potable Water, Hydronic Heating, Chilled Water, Compressed Air, Non-Medical Gases, Fire Sprinkler, Low Pressure Steam
• Country of Origin: Germany
• Standards and Approvals: CSA Certified, FM Approved, NSF 61, UL Listed
