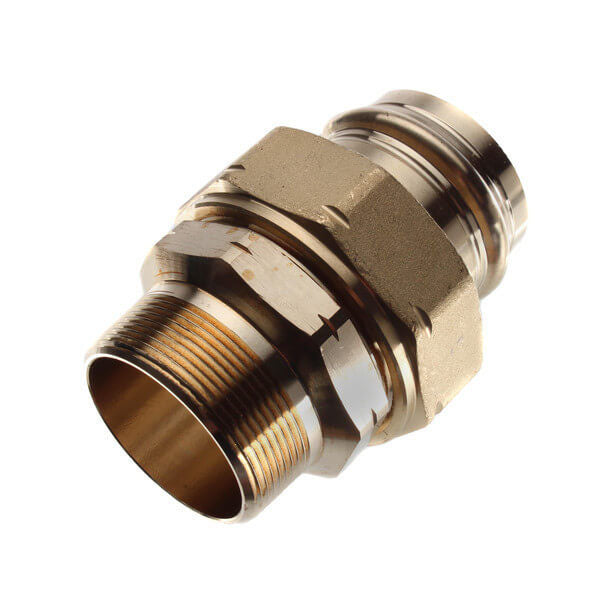

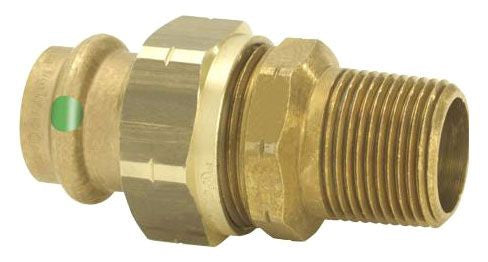

Viega 79730 1/2 x 1/2 ProPress x MPT Lead-Free Bronze Ground Joint Union

Product Description

The Viega 79730 is a 1/2 x 1/2 ProPress x Male Threaded union fitting. This product features a lead-free bronze construction and is rated for up to 175 PSI. The union is designed to work effectively in hot and cold water systems, including hydronic heating and compressed air applications.

• Lead-free bronze material
• Pressure rating of 175 PSI
• Compatible with ProPress connections

Product Highlights

Designed for durability, this union fitting simplifies the joining of pipes. It eliminates the need for soldering, allowing for quicker installations.

Product Information

Standard Information

• Brand: Viega
• MPN: 79730

Technical Specifications

• Type: Ground Joint
• End Connection: ProPress x Male Threaded
• Size A: 1/2 inch
• Size B: 1/2 inch
• Material: Bronze
• Pressure Rating: 175 PSI
• Temperature Rating: 0 to 250 Deg F
• Application: Hydronic Heating, Chilled Water, Compressed Air, Potable Water System, Fire Sprinkler, Low-Pressure Steam
• Applicable Standards: UL, CSA MSE-13, ABS, CRN, FM 1920, NSF/ANSI 61/372
