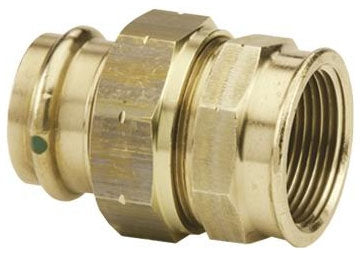

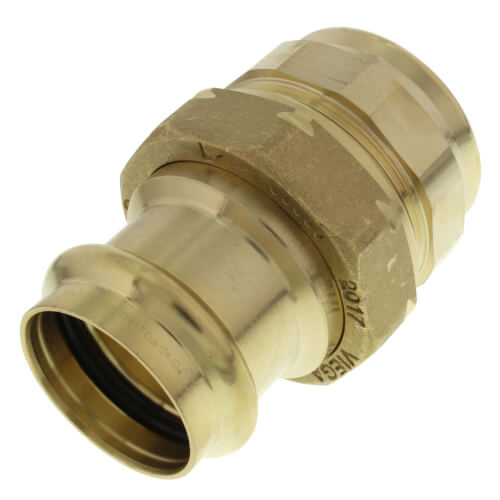

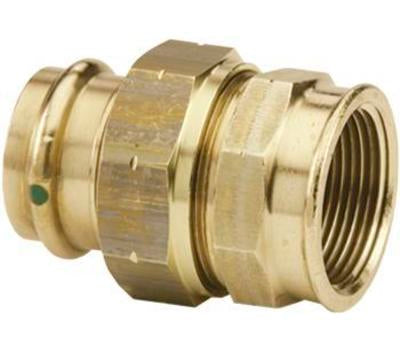

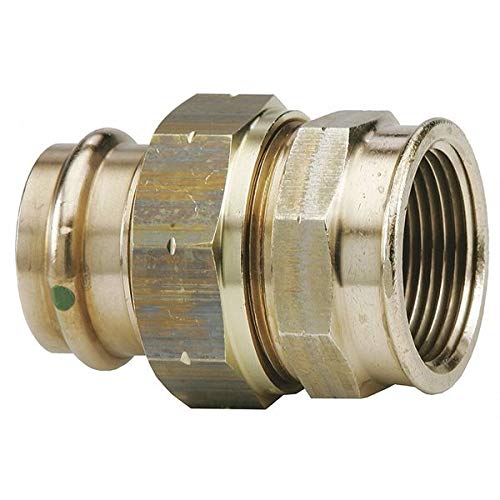

VIEGA 79720 ProPress 1-1/2 Inch Bronze Union

Product Description

The Viega ProPress Bronze Union, model 79720, is a high-quality piping solution designed for a broad range of applications. This 1-1/2 inch union features the ProPress x Female Threaded (FPT) connection type and is constructed from lead-free bronze, adhering to ASTM B88 standards.

• Lead-free, ensuring safety for potable water systems
• Features the patented Viega Smart Connect technology for rapid, secure connections
• Suitable for use in systems like hydronic heating and fire sprinklers, withstanding up to 200 PSI and temperatures from 0 to 250 degrees Fahrenheit

Product Highlights

This union allows for quick and flameless connections, minimizing downtime and eliminating the need for soldering. It is designed to be easy to use, reducing installation complexity. With Viega’s ProPress technology, installers can efficiently manage and maintain robust and leak-proof connections.

Product Information

Standard Information

• Pressure Rating: 200 PSI
• Temperature Range: 0 to 250 degrees Fahrenheit
• Connection Type: ProPress x Female Threaded

Technical Specifications

• Material: Bronze
• Size: 1-1/2 Inch x 1-1/2 Inch
• Standards: NSF 61/372, CRN, UL, CSA MSE-13, ICC-ES PMG-1037
• Features: EPDM Sealing Element, Ground Joint End
