Viega 79195 ProPress 90 Degree Drop Ear Elbow Press x Female Thread 3/4 inch

Product Description

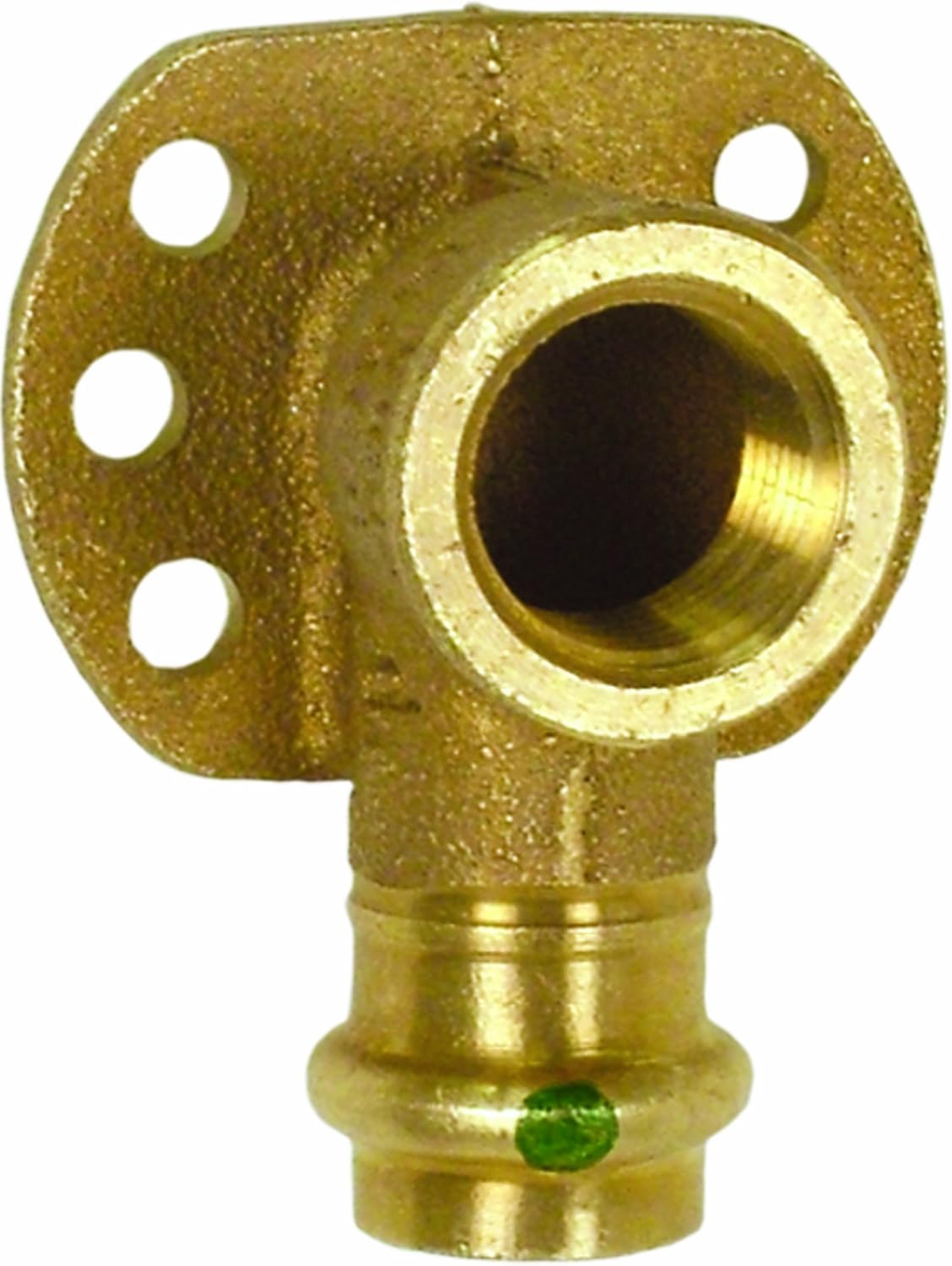

The Viega 79195 ProPress 90-Degree Drop Ear Elbow is designed for efficient and secure pipe connections. This bronze elbow fitting ensures a secure ProPress connection on one end and a female threaded connection on the other, suitable for various plumbing applications.

• 90-degree angle with drop ear for stable installation
• ProPress x female threaded connection
• Lead-free bronze construction

Product Highlights

This ProPress drop ear elbow from Viega features a 90-degree bend, ensuring stable and secure connections in plumbing systems. Suitable for potable water, hydronic heating, and more.

Product Information

Standard Information

• Manufacturer: Viega
• MPN: 79195

Technical Specifications

• Material: Bronze
• Angle: 90 Degree

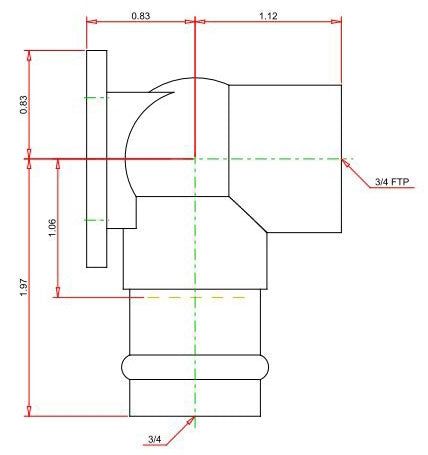

• Size: 3/4 inch x 3/4 inch
• End Connection: ProPress x Female Threaded
• Pressure Rating: 200 PSI
• Temperature Rating: 0 to 250 Degrees Fahrenheit
• Application: Potable Water, Hydronic Heating, Chilled Water, Compressed Air, Non-Medical Gas, Fire Sprinkler, Low Pressure Steam, Vacuum
• Standards: ABS, NSF/ANSI 61/372, CRN 0A14541.5 A/B/C, CSA MSE-13, FM 1920, IAPMO PS117, ICC-ES PMG-1037, ULC/ORD 213, NFPA 13/13D/13R
• Lead-Free: Yes
