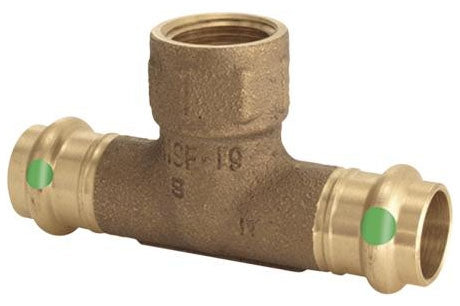

Viega 79580 ProPress, Press Tee, 1/2 inch x 1/2 inch x 1/2 inch, Press x Press x FPT, Model 2917.2ZL

Product Description

The Viega 79580 is a tee fitting made from bronze that features ProPress x ProPress x Female Thread connections, ensuring a reliable and strong joint. This fitting is suitable for various plumbing applications, including potable water and hydronic heating systems.

• Nominal size of 1/2 inch.
• Pressure rating of 200 PSI.
• Temperature rating ranging from zero to two hundred fifty degrees Fahrenheit.

Product Highlights

The Viega 79580 is lead-free and includes an EPDM sealing element. It is designed for easy installation without needing flames, solder, or heavy equipment.

Product Information

Standard Information

• Brand: Viega
• MPN: 79580

Technical Specifications

• Material: Bronze
• Nominal Size: 1/2 Inch
• End Connection: ProPress x ProPress x Female Threaded
• Pressure Rating: 200 PSI
• Temperature Rating: 0 to 250 Degrees Fahrenheit
• Applicable Standards: NSF 61G, ABS, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC LC 1002, UL 213, PHCC, NFPA 13/13D/13R, ASME B16.51
• Application: Potable Water, Hydronic Heating, Chilled Water, Compressed Air, Non-Medical Gas, Fire Sprinkler, Low Pressure Steam, Vacuum
