Product Description

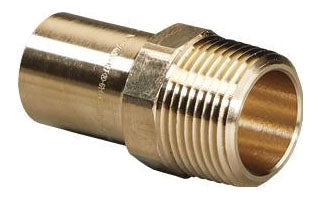

The Viega 79395 is a robust adapter fitting designed for plumbing applications. This fitting connects a three-fourth inch female soldered joint to a male threaded connection. It is suitable for various systems including hydronic heating and chilled water systems.
- Lead-free construction
- Pressure rated up to 200 PSI
- Compatible with a range of fittings and applications
Product Highlights
The Viega 79395 fitting ensures safe and efficient water flow in plumbing infrastructures.
Product Information
Standard Information
Technical Specifications
-
Type: Male, Street
-
Size A: 3/4 Inch
-
Size B: 3/4 Inch
-
End Connection: Male Soldered x Male Threaded
-
Material: Bronze
-
Pressure Rating: 200 PSI
-
Temperature Rating: 0 to 250 Degrees F
-
Application: Hydronic Heating, Chilled Water, Compressed Air, Potable Water System, Fire Sprinkler, Low-Pressure Steam
-
Applicable Standard: UL, CSA MSE-13, ABS, CRN 0A14541.5 A/B/C, FM 1920, IAPMO PS117, ICC-ES PMG-1037, NSF/ANSI 61/372, PHCC, ULC/ORD 213, NFPA 13/13D/13R, ICC LC 1002, ASME B16.51
